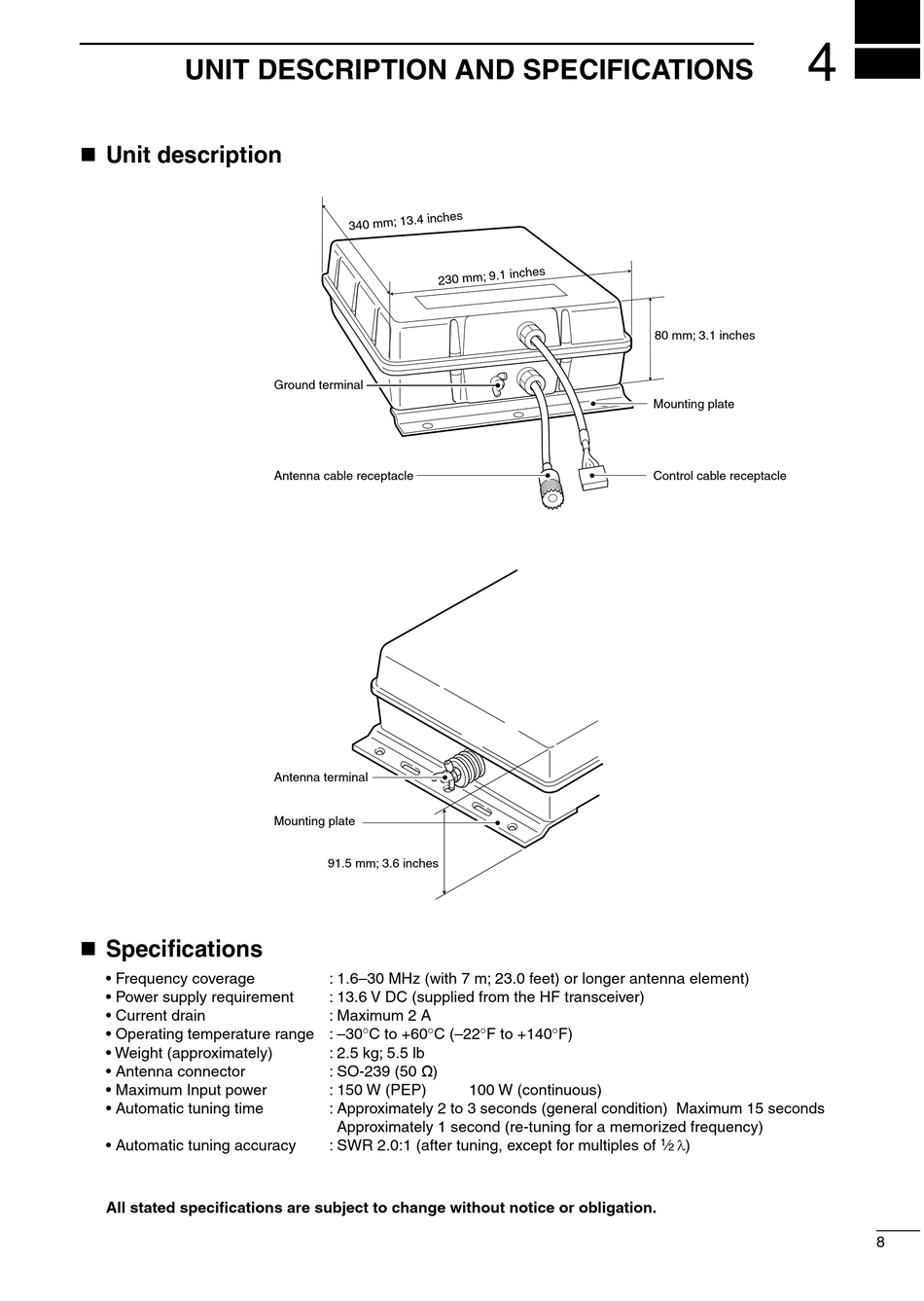

UNIT DESCRIPTION AND SPECIFICATIONS
n Unit description
n Specifications
• Frequency coverage
• Power supply requirement
• Current drain
• Operating temperature range : –30°C to +60°C (–22°F to +140°F)
• Weight (approximately)
• Antenna connector
• Maximum Input power
• Automatic tuning time
• Automatic tuning accuracy
All stated specifications are subject to change without notice or obligation.
Ground terminal
Antenna cable receptacle
Antenna terminal
Mounting plate
91.5 mm; 3.6 inches
: 1.6–30 MHz (with 7 m; 23.0 feet) or longer antenna element)
: 13.6 V DC (supplied from the HF transceiver)
: Maximum 2 A
: 2.5 kg; 5.5 lb
: SO-239 (50 Ω)
: 150 W (PEP)
: Approximately 2 to 3 seconds (general condition) Maximum 15 seconds
Approximately 1 second (re-tuning for a memorized frequency)
: SWR 2.0:1 (after tuning, except for multiples of
100 W (continuous)
4
80 mm; 3.1 inches
Mounting plate
Control cable receptacle
λ)
1
⁄
2
8
