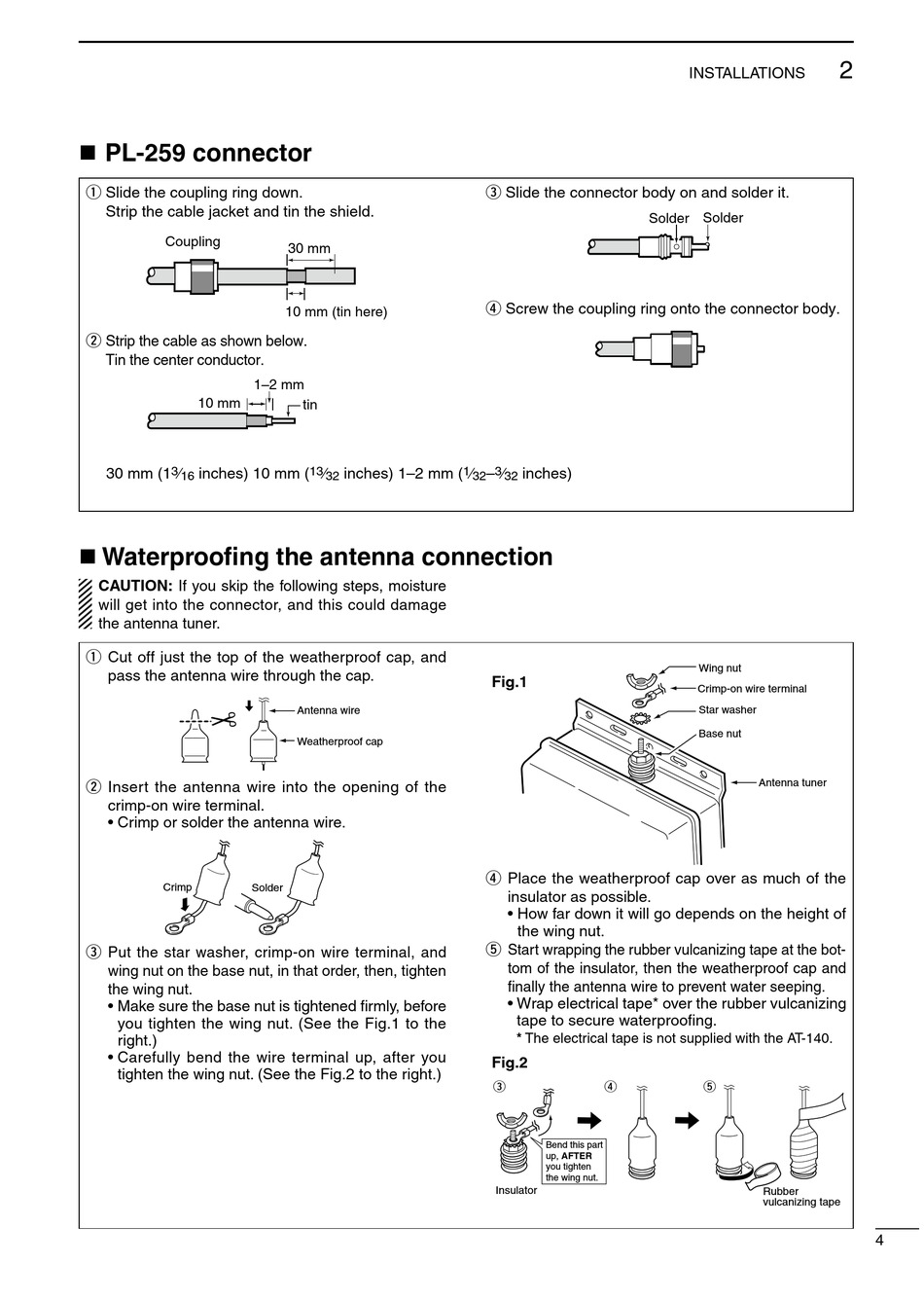

n PL-259 connector
• 30 mm
1 3 ⁄ inches
16
q Slide the coupling ring down.
• 10 mm
3 ⁄ inches
8
Strip the cable jacket and tin the shield.
• 1–2 mm
1 ⁄ – 3 ⁄ inches
32 32
Coupling
w Strip the cable as shown below.
Tin the center conductor.
10 mm
30 mm (1 3 ⁄ inches) 10 mm (
16
n Waterproofing the antenna connection
CAUTION: If you skip the following steps, moisture
will get into the connector, and this could damage
the antenna tuner.
q Cut off just the top of the weatherproof cap, and
pass the antenna wire through the cap.
w Insert the antenna wire into the opening of the
crimp-on wire terminal.
• Crimp or solder the antenna wire.
Crimp Solder
e Put the star washer, crimp-on wire terminal, and
wing nut on the base nut, in that order, then, tighten
the wing nut.
• Make sure the base nut is tightened firmly, before
you tighten the wing nut. (See the Fig.1 to the
right.)
• Carefully bend the wire terminal up, after you
tighten the wing nut. (See the Fig.2 to the right.)
30 mm
10 mm (tin here)
1–2 mm
tin
13 ⁄ inches) 1–2 mm (
32
Antenna wire
Weatherproof cap
e Slide the connector body on and solder it.
r Screw the coupling ring onto the connector body.
1 ⁄ – 3 ⁄ inches)
32 32
Fig.1
r Place the weatherproof cap over as much of the
insulator as possible.
• How far down it will go depends on the height of
the wing nut.
t Start wrapping the rubber vulcanizing tape at the bot-
tom of the insulator, then the weatherproof cap and
finally the antenna wire to prevent water seeping.
• Wrap electrical tape* over the rubber vulcanizing
tape to secure waterproofing.
* The electrical tape is not supplied with the AT-140.
Fig.2
e r
Bend this part
up, AFTER
you tighten
the wing nut.
Insulator
INSTALLATIONS
Solder Solder
Wing nut
Crimp-on wire terminal
Star washer
Base nut
Antenna tuner
t
Rubber
vulcanizing tape
