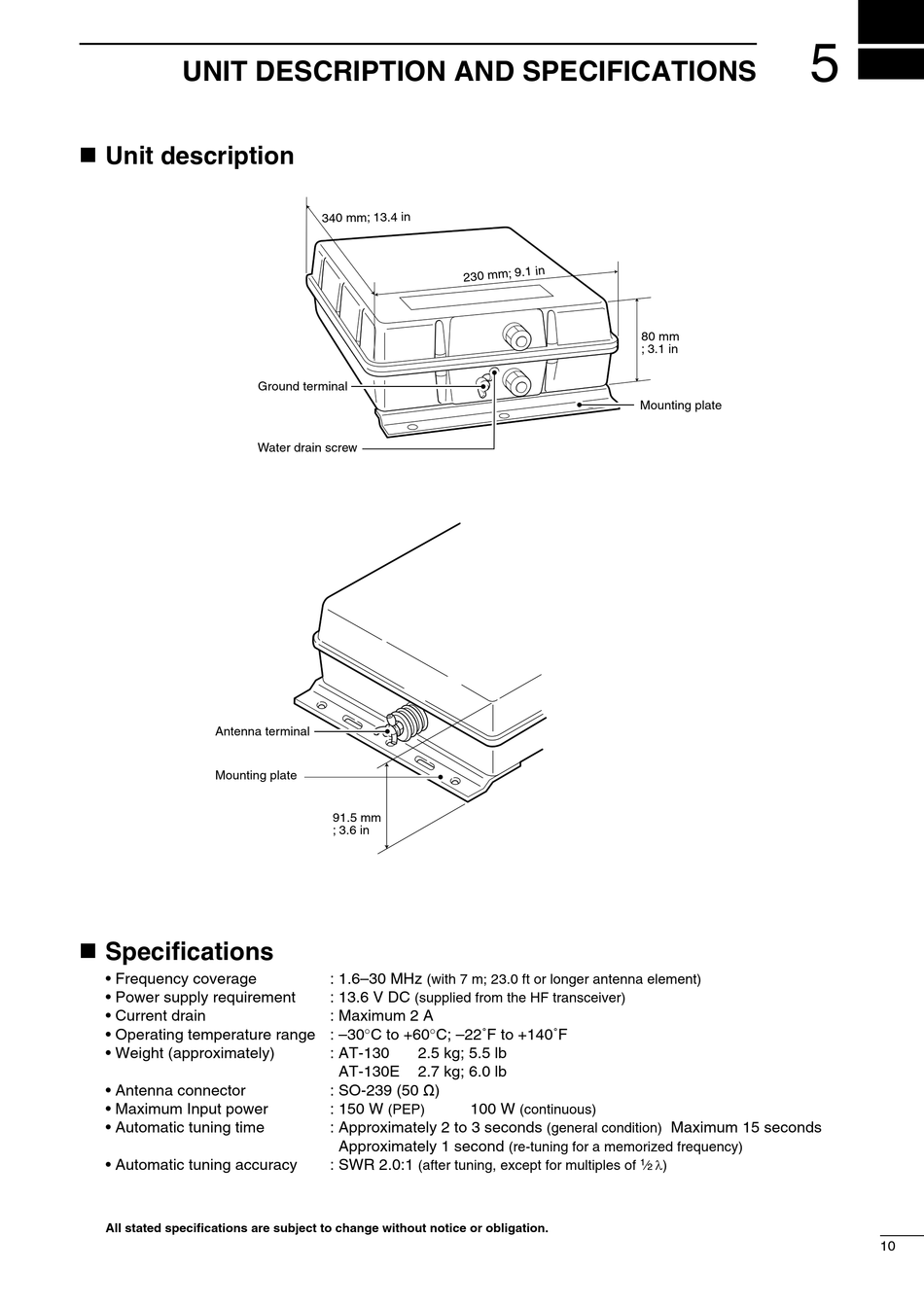

UNIT DESCRIPTION AND SPECIFICATIONS

n Unit description
Antenna terminal
Mounting plate
n Specifications
• Frequency coverage
• Power supply requirement
• Current drain
• Operating temperature range : –30°C to +60°C; –22˚F to +140˚F
• Weight (approximately)
• Antenna connector
• Maximum Input power
• Automatic tuning time
• Automatic tuning accuracy
All stated specifications are subject to change without notice or obligation.
Ground terminal
Water drain screw
91.5 mm
; 3.6 in
: 1.6–30 MHz
(with 7 m; 23.0 ft or longer antenna element)
: 13.6 V DC
(supplied from the HF transceiver)
: Maximum 2 A
: AT-130 2.5 kg; 5.5 lb
AT-130E 2.7 kg; 6.0 lb
: SO-239 (50 Ω)
: 150 W
(PEP)
: Approximately 2 to 3 seconds
Approximately 1 second
: SWR 2.0:1
(after tuning, except for multiples of
80 mm
; 3.1 in
Mounting plate
100 W
(continuous)
(general condition)
(re-tuning for a memorized frequency)
1
5
Maximum 15 seconds
λ)
⁄
