3

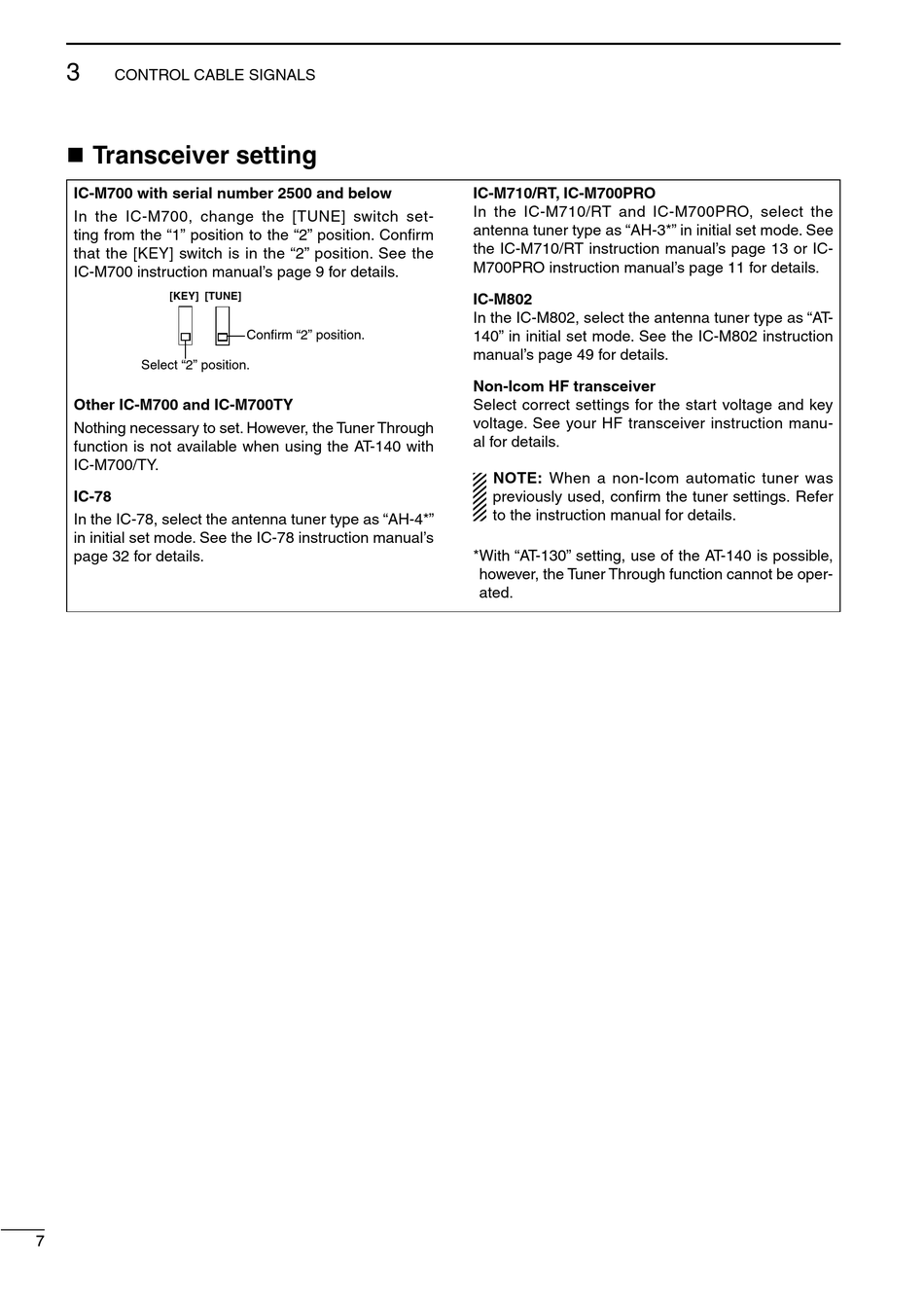

CONTROL CABLE SIGNALS

n Transceiver setting
IC-M700 with serial number 2500 and below
In the IC-M700, change the [TUNE] switch set-
ting from the "1" position to the "2" position. Confirm
that the [KEY] switch is in the "2" position. See the
IC-M700 instruction manual's page 9 for details.
[KEY] [TUNE]
Select "2" position.
Other IC-M700 and IC-M700TY
Nothing necessary to set. However, the Tuner Through
function is not available when using the AT-140 with
IC-M700/TY.
IC-78
In the IC-78, select the antenna tuner type as "AH-4*"
in initial set mode. See the IC-78 instruction manual's
page 32 for details.
7 7
Confirm "2" position.
IC-M710/RT, IC-M700PRO
In the IC-M710/RT and IC-M700PRO, select the
antenna tuner type as "AH-3*" in initial set mode. See
the IC-M710/RT instruction manual's page 13 or IC-
M700PRO instruction manual's page 11 for details.
IC-M802
In the IC-M802, select the antenna tuner type as "AT-
140" in initial set mode. See the IC-M802 instruction
manual's page 49 for details.
Non-Icom HF transceiver
Select correct settings for the start voltage and key
voltage. See your HF transceiver instruction manu-
al for details.
NOTE: When a non-Icom automatic tuner was
previously used, confirm the tuner settings. Refer
to the instruction manual for details.
* With "AT-130" setting, use of the AT-140 is possible,
however, the Tuner Through function cannot be oper-
ated.
