4

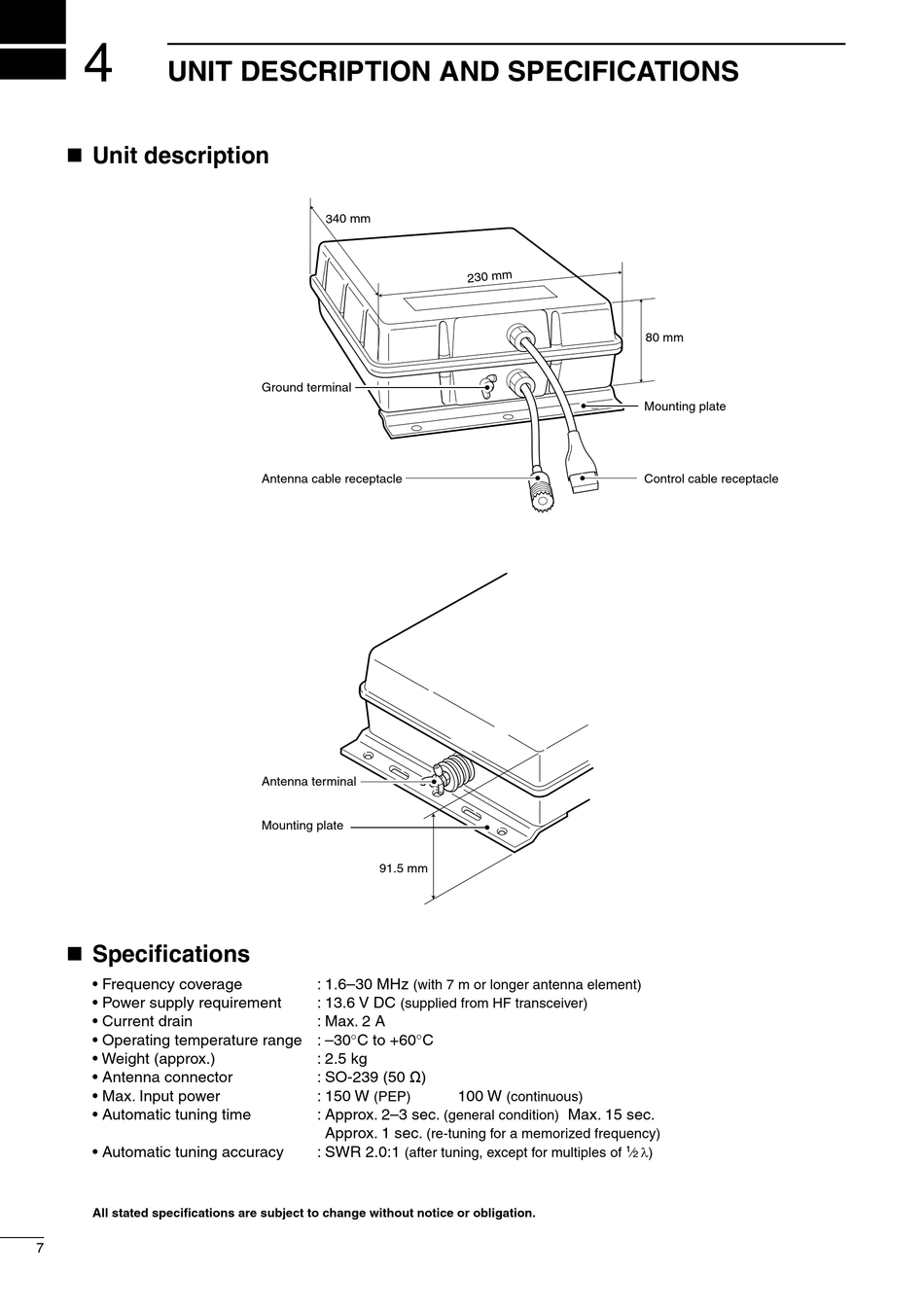

UNIT DESCRIPTION AND SPECIFICATIONS

n Unit description
n Specifications
• Frequency coverage
• Power supply requirement
• Current drain
• Operating temperature range : –30°C to +60°C
• Weight (approx.)
• Antenna connector
• Max. Input power
• Automatic tuning time
• Automatic tuning accuracy
All stated specifications are subject to change without notice or obligation.
7
Ground terminal
Antenna cable receptacle
Antenna terminal
Mounting plate
91.5 mm
: 1.6–30 MHz
(with 7 m or longer antenna element)
: 13.6 V DC
(supplied from HF transceiver)
: Max. 2 A
: 2.5 kg
: SO-239 (50 Ω)
: 150 W
(PEP)
: Approx. 2–3 sec.
Approx. 1 sec.
(re-tuning for a memorized frequency)
: SWR 2.0:1
(after tuning, except for multiples of
100 W
(continuous)
Max. 15 sec.
(general condition)
80 mm
Mounting plate
Control cable receptacle
1 λ)
⁄
2
