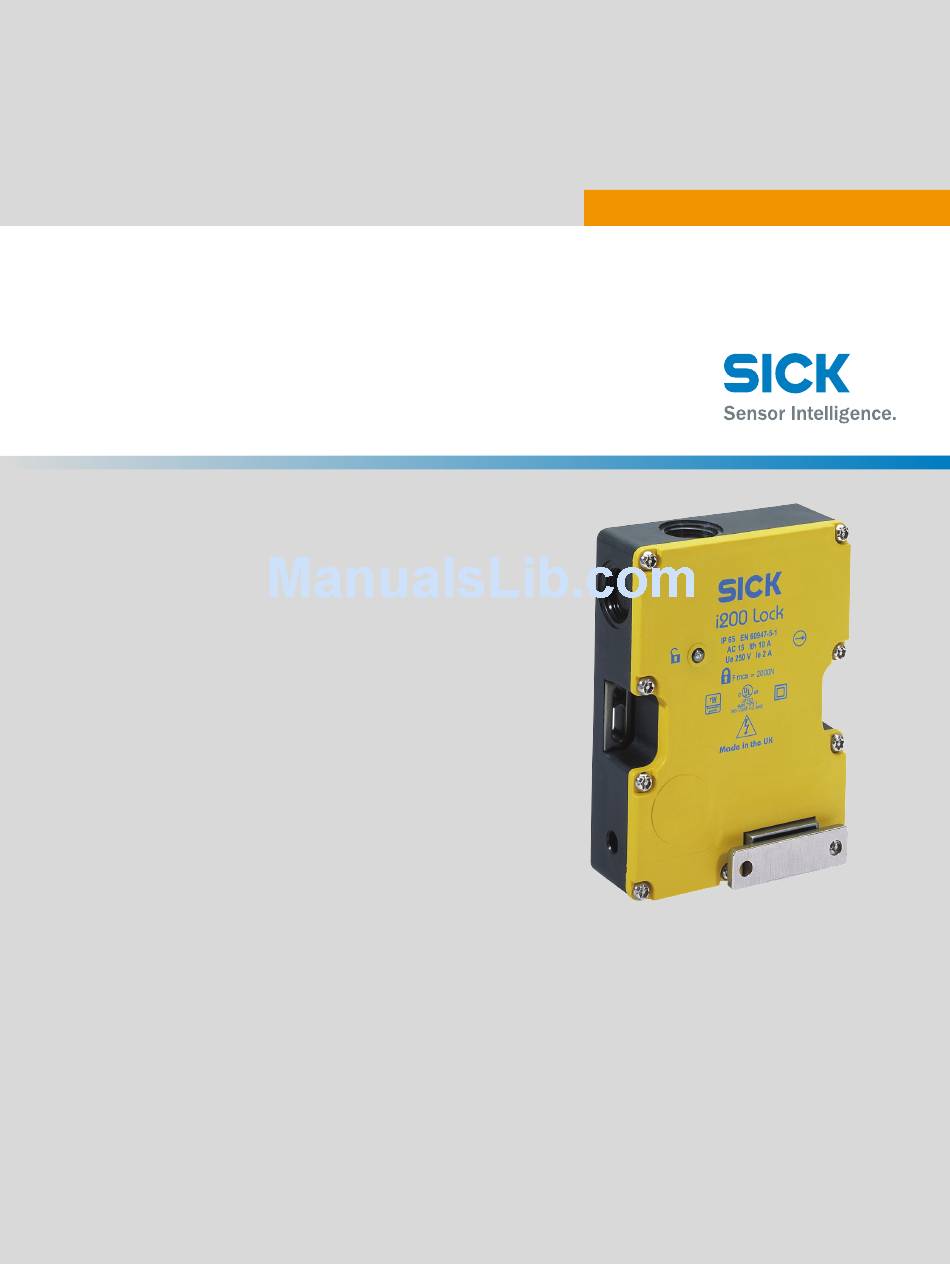

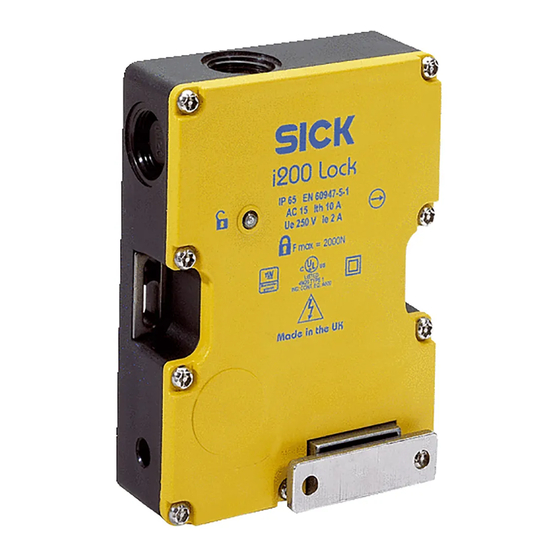

  • Page 1 O P E R A T I N G I N S T R U C T I O N S i200 Lock Safety locking device...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | i200 Lock 8020558//2017-02-14 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Technical data................... Dimensional drawings................Ordering information................ 22 Ordering information................. 8020558//2017-02-14 | SICK O P E R A T I N G I N S T R U C T I O N S | i200 Lock Subject to change without notice...
  • Page 4 10.2 Additional accessories................Annex....................24 11.1 Compliance with EU directives..............O P E R A T I N G I N S T R U C T I O N S | i200 Lock 8020558//2017-02-14 | SICK Subject to change without notice...

  • Page 5: About This Document

    The LED is off. The LED is flashing. Ö 8020558//2017-02-14 | SICK O P E R A T I N G I N S T R U C T I O N S | i200 Lock Subject to change without notice...
  • Page 6 Visible and invisible beam • A combination of multiple hazards O P E R A T I N G I N S T R U C T I O N S | i200 Lock 8020558//2017-02-14 | SICK Subject to change without notice...

  • Page 7: Safety Information

    8020558//2017-02-14 | SICK O P E R A T I N G I N S T R U C T I O N S | i200 Lock Subject to change without notice...

  • Page 8: Product Description

    If voltage is disconnected at the magnet, the locking device is unlocked and the protec‐ tive device can be opened immediately. O P E R A T I N G I N S T R U C T I O N S | i200 Lock 8020558//2017-02-14 | SICK...

  • Page 9: Symbols On The Product

    With the mechanical unlocking mechanism, the safety locking device can be unlocked regardless of the status. 8020558//2017-02-14 | SICK O P E R A T I N G I N S T R U C T I O N S | i200 Lock Subject to change without notice...

  • Page 10: Actuator

    Reinsert safety screw. Figure 1: Mechanical unlocking mechanism O P E R A T I N G I N S T R U C T I O N S | i200 Lock 8020558//2017-02-14 | SICK Subject to change without notice...

  • Page 11: Project Planning

    Contacts for locking device monitoring can also be used (pin assignment see table 8020558//2017-02-14 | SICK O P E R A T I N G I N S T R U C T I O N S | i200 Lock Subject to change without notice...

  • Page 12: Operator Of The Machine

    (such as damage or tampering). O P E R A T I N G I N S T R U C T I O N S | i200 Lock 8020558//2017-02-14 | SICK...
  • Page 13 Determination of the thorough checks must be documented in a traceable manner. 8020558//2017-02-14 | SICK O P E R A T I N G I N S T R U C T I O N S | i200 Lock Subject to change without notice...

  • Page 14: Mounting

    Rotate metal insert by 180° by loosening the 2 fixing screws. Seal unused actuation slots with the supplied slot covers. O P E R A T I N G I N S T R U C T I O N S | i200 Lock 8020558//2017-02-14 | SICK...

  • Page 15: Mounting

    When doing painting work, cover the actuation slot, the actuator and the type label. 8020558//2017-02-14 | SICK O P E R A T I N G I N S T R U C T I O N S | i200 Lock Subject to change without notice...

  • Page 16: Electrical Installation

    Protect the magnet coil separately. ° Tighten terminals to 1.0 Nm. ° O P E R A T I N G I N S T R U C T I O N S | i200 Lock 8020558//2017-02-14 | SICK Subject to change without notice...
  • Page 17 Close switch cover and fasten it (tightening torque 1.2 Nm). 8020558//2017-02-14 | SICK O P E R A T I N G I N S T R U C T I O N S | i200 Lock Subject to change without notice...

  • Page 18: Commissioning

    No damage, contamination, deposits or wear • Tightness of cable entries O P E R A T I N G I N S T R U C T I O N S | i200 Lock 8020558//2017-02-14 | SICK Subject to change without notice...
  • Page 19 No loose cable connections or plug connectors • No manipulation by employees 8020558//2017-02-14 | SICK O P E R A T I N G I N S T R U C T I O N S | i200 Lock Subject to change without notice...

  • Page 20: Technical Data

    Max. solenoid power ED switch-on time 100% At 10 mA. O P E R A T I N G I N S T R U C T I O N S | i200 Lock 8020558//2017-02-14 | SICK Subject to change without notice...

  • Page 21: Dimensional Drawings

    2 x M3 Figure 2: iE200-F1 14,5 Figure 3: iE200-S1 8020558//2017-02-14 | SICK O P E R A T I N G I N S T R U C T I O N S | i200 Lock Subject to change without notice...

  • Page 22: Ordering Information

    Lock 6025115 Operating current i200-E0323 Lock 6026140 O P E R A T I N G I N S T R U C T I O N S | i200 Lock 8020558//2017-02-14 | SICK Subject to change without notice...
  • Page 23 Part number Cable gland M20 screw connection 5309164 8020558//2017-02-14 | SICK O P E R A T I N G I N S T R U C T I O N S | i200 Lock Subject to change without notice...
  • Page 24 (part number: see the type label entry in the “Ident. no.” field). O P E R A T I N G I N S T R U C T I O N S | i200 Lock 8020558//2017-02-14 | SICK...
  • Page 25 ANNEX 8020558//2017-02-14 | SICK O P E R A T I N G I N S T R U C T I O N S | i200 Lock Subject to change without notice...
  • Page 26 ANNEX O P E R A T I N G I N S T R U C T I O N S | i200 Lock 8020558//2017-02-14 | SICK Subject to change without notice...
  • Page 27 ANNEX 8020558//2017-02-14 | SICK O P E R A T I N G I N S T R U C T I O N S | i200 Lock Subject to change without notice...
  • Page 28 Phone +36 1 371 2680 Phone +386 591 788 49 E-Mail office@sick.hu E-Mail office@sick.si India South Africa Phone +91 22 4033 8333 Phone +27 11 472 3733 Further locations at www.sick.com E-Mail info@sick-india.com E-Mail info@sickautomation.co.za SICK AG | Waldkirch | Germany | www.sick.com...
