- Page 1 MANUAL ENGLISH MA-8120PM Paging Microphone V1 Ordercode: D6197 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Set Up and Operation ..............................7 Paging Function ..............................7 Chime Function ..............................7 Connecting the MA-8120PM Paging Microphone to the MA-8120 Digital Zone Amplifier ....... 7 Data Cabling ................................. 8 How to make a data cable ..........................8 ... -
Page 3: Warning
Save the carton and all packing materials. In the event that a device must be returned to the factory, it is important that the device is returned in the original factory box and packing. Your shipment includes: DAP Audio MA-8120PM Paging Microphone User manual Safety Instructions Every person involved with the installation, operation and maintenance of this system has to: •... -
Page 4: Operating Determinations
MA-8120PM Paging Microphone IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the device. Never remove warning or informative labels from the unit. Never leave any cables lying around. -
Page 5: Return Procedure
MA-8120PM Paging Microphone Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 6: Description Of The Device

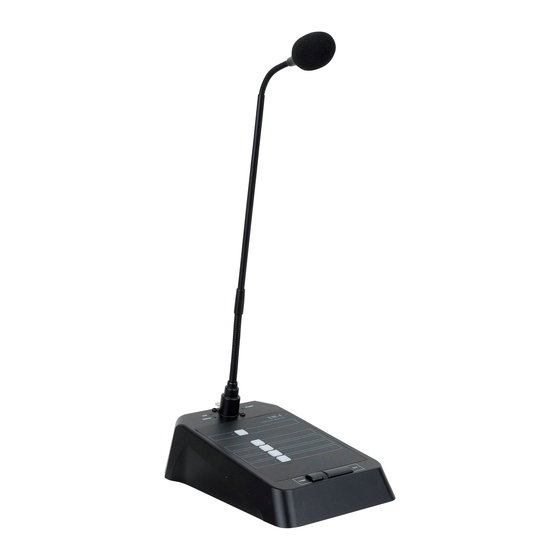

MA-8120PM Paging Microphone Description of the device The DAP MA-8120PM Paging Microphone is a dedicated paging microphone for the MA-8120 Digital Zone Amplifier. It allows you to page any selected zone or all zones. It has a built-in chime and talk-over functions. -
Page 7: Backside
When the switch is in LOCK position, it is not possible to select/deselect the zones. RJ45 connector IN Connect the MA-8120PM to the MA-8120 Digital Zone Amplifier by means of a CAT-5 cable. Output level control Turn the control to adjust the output level. -
Page 8: Set Up And Operation
01) Press one of the zone buttons 1-4 (04) or the ALL button (03) to select the desired zone(s). 02) Press and hold down the TALK button (06) and press the CHIME button (05) to play the chime tone. Connecting the MA-8120PM Paging Microphone to the MA-8120 Digital Zone Amplifier Fig. 03... -
Page 9: Data Cabling
MA-8120PM Paging Microphone Data Cabling To link fixtures together, you must obtain data cables. You can purchase DAP Audio certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable, please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference. -
Page 10: Block Diagram
MA-8120PM Paging Microphone Block Diagram Fig. 05 Ordercode: D6197... -
Page 11: Maintenance
MA-8120PM Paging Microphone Maintenance The DAP Audio MA-8120PM Paging Microphone requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 12: Dimensions
MA-8120PM Paging Microphone Dimensions Ordercode: D6197... -
Page 13: Notes
MA-8120PM Paging Microphone Notes Ordercode: D6197... - Page 14 MA-8120PM Paging Microphone Ordercode: D6197...
- Page 15 MA-8120PM Paging Microphone Ordercode: D6197...
- Page 16 ©2017 DAP Audio...
