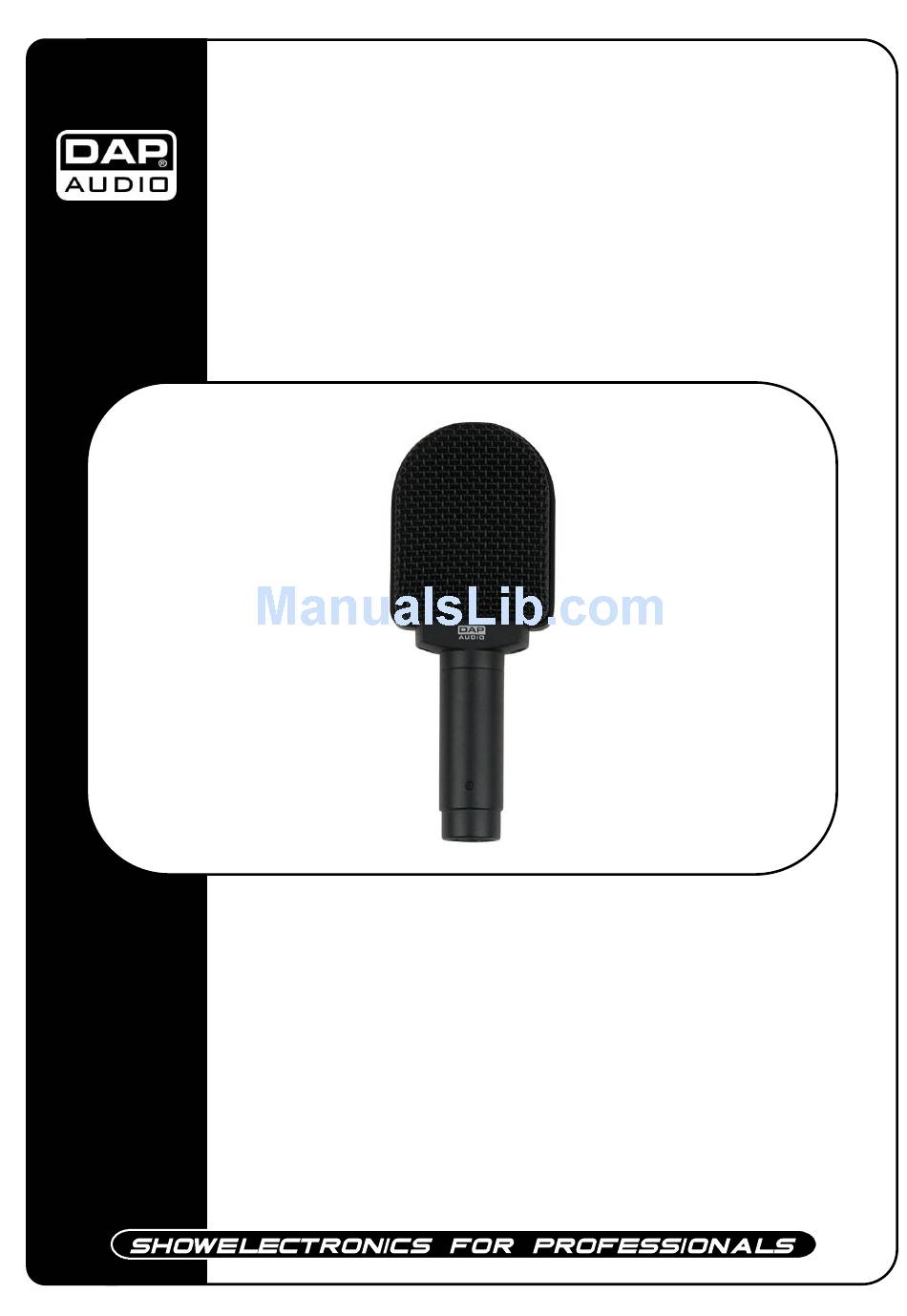

- Page 1 DM-35 ORDERCODE D1356 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio DM-35 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio DM-35 Product Guide ™ Warning ................................... 3 Safety Instructions ..............................3 Operating Determinations ............................4 Return Procedure ..............................4 Claims ..................................4 Description of the device ............................. 5 Features ..................................5 Overview ..................................5 The microphone ................................6 Set Up and Operation .............................. -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP DM-35 • Microphone clip • Gooseneck clamp •... -
Page 5: Operating Determinations
Please read this manual carefully and keep it for future reference. Remember that the device has a better value on the market, if you save the carton and all packing materials. If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Dap Audio dealer for service. -
Page 6: Description Of The Device

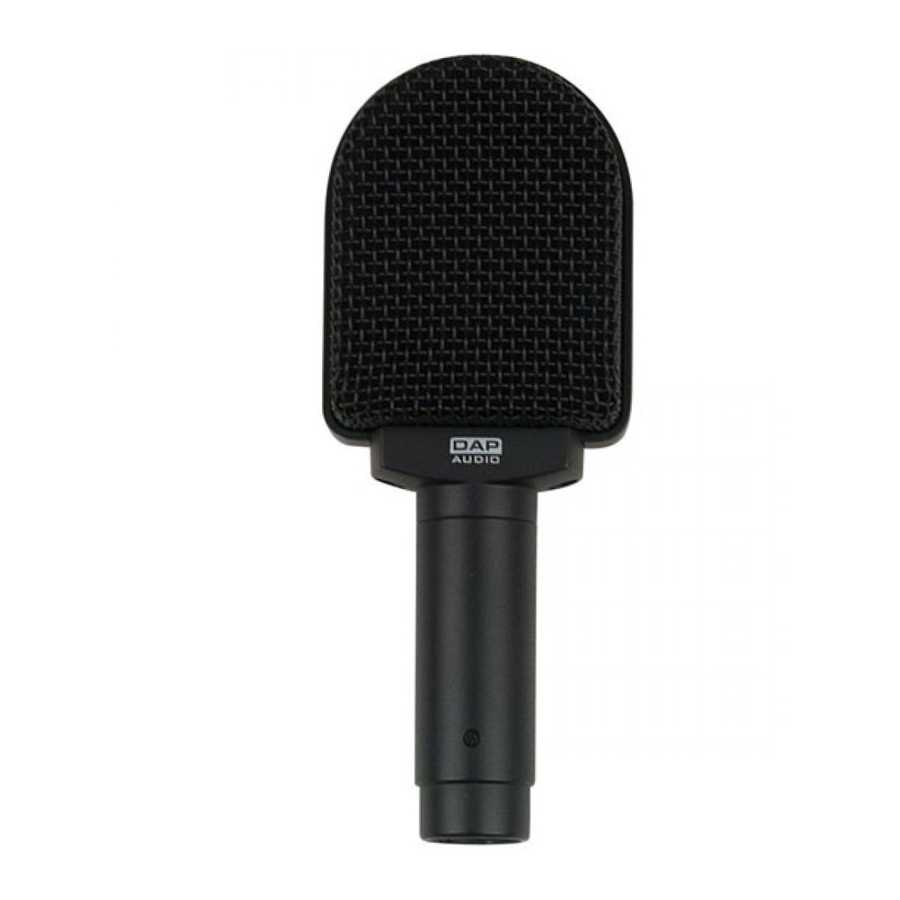

Description of the device The Dap Audio DM-35 is a guitar amp microphone. Features • High SPL • Designed for close amp mic-ing Overview Fig. 1 1. Head Front: silver Back: black 2. Body 3. XLR male output... -
Page 7: The Microphone
The microphone The DM-35 is special designed for mic-ing guitar amps. Due to the high SPL capacity and flat pop screen design it can be used for close mic-ing instrument amplifiers. It is suitable for guitar and bass guitar amplifiers. -
Page 8: Connection Cables
Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 9: Maintenance
Compensation of interference with balanced connections Maintenance The DAP Audio DM-35 requires almost no maintenance. However, you should keep the unit clean. Disconnect the microphone and then wipe the cover with a damp cloth. Do not immerse in liquid. Do... -
Page 10: Product Specifications
Product Specifications Type: Dynamic Polar Pattern: Super cardioid Frequency Response: 80-18.000 Hz Sensitivity: -55 dBV/Pa (1,8 mV) Max.SPL: 150 dB SPL Output Impedance: 200 Ω Power supply: None Connector: 3p. XLR Accessories: gooseneck clamp, mic clip, pouch Dimensions: 136 x 54x 46mm Net Weight: 0,20 Kg Design and product specifications are subject to change without prior notice.
