Summary of Contents for DAPAudio WCM-16

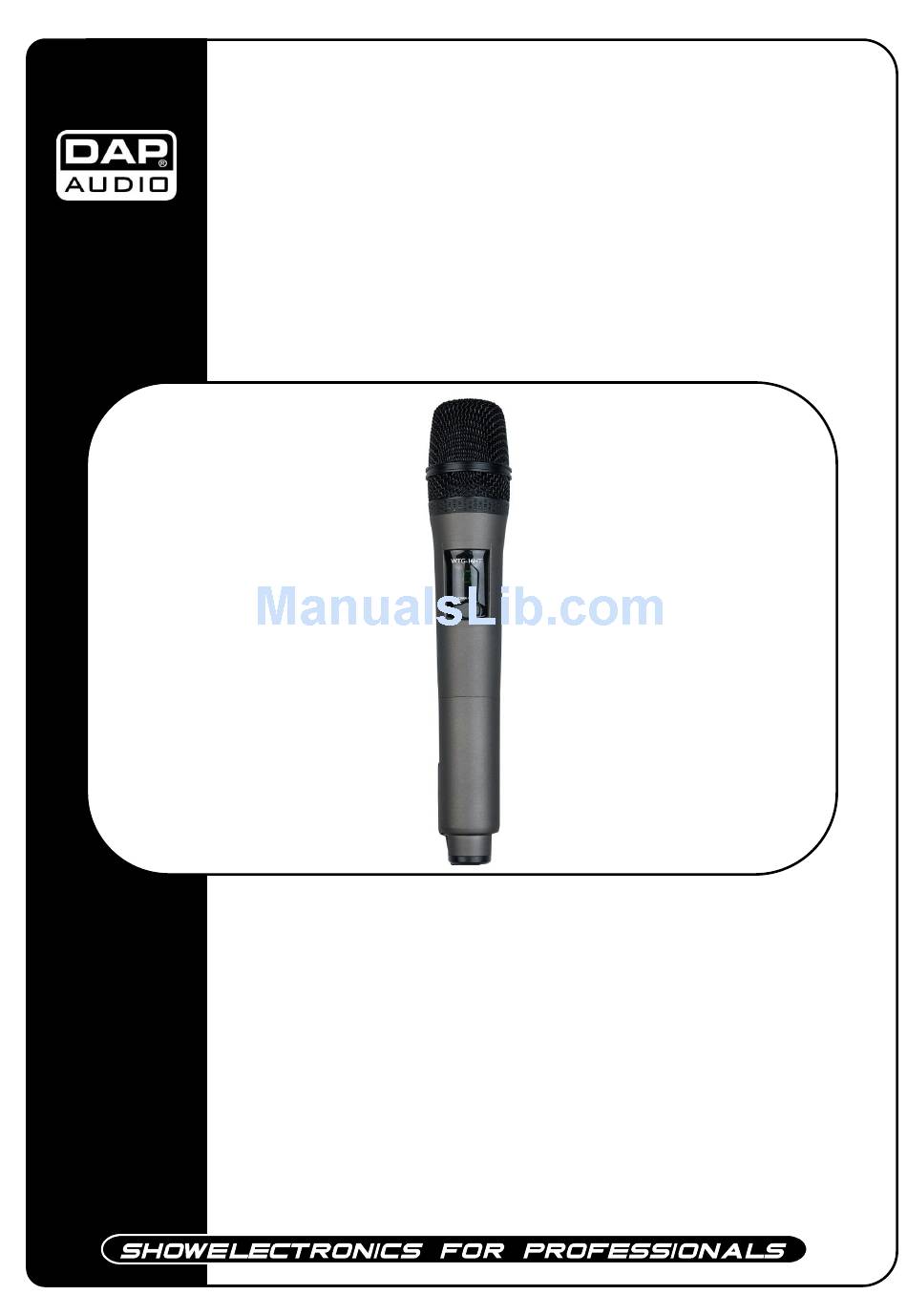

- Page 1 WCM–16 ORDERCODE D1455 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio WCM-16 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio WCM-16 Product Guide ™ Warning ................................... 3 Unpacking Instructions ............................. 3 Safety Instructions ..............................3 Operating Determinations ............................4 Return Procedure ..............................4 Claims ..................................4 Description of the device ............................. 5 Features ..................................5 Overview ..................................5 Set Up and Operation .............................. -
Page 4: Dap Audio Wcm-16
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • 1 DAP WCM-16 • This user manual Safety Instructions... -
Page 5: Operating Determinations
If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your system. Leave the system switched off until it has reached room temperature. If your Dap Audio device fails to work properly, discontinue use immediately. -
Page 6: Description Of The Device

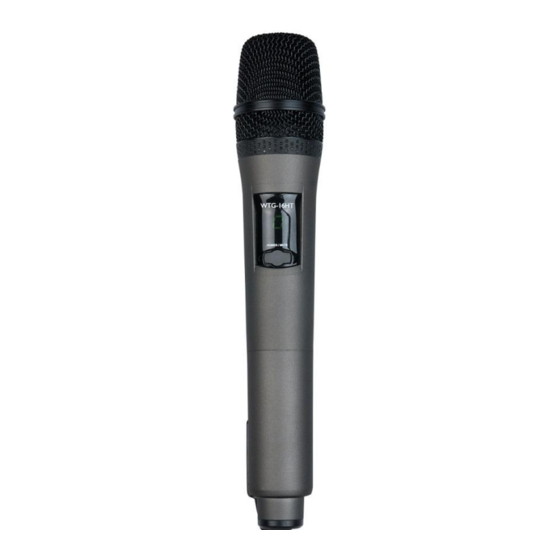

Description of the device Features Wireless condenser microphone for camera system. This microphone has 16 switchable frequencies and can be used together with the WCA Pack. It needs 2 AA batteries and has an excellent sound quality. The gain is adjustable below the capsule and the frequency can be set inside the battery case. •16 Selectable frequencies •... -
Page 7: Set Up And Operation
Set Up and Operation Before turning the WCM-16 on, always make sure that the frequency matches your country. Placing the batteries ) Unscrew and remove the battery compartment cover (4) from the back. 2) Place the batteries. Pay attention to the polarity of the batteries and put them in correctly. -
Page 8: Changing The Sensitivity Of The Microphone
Be aware that when you are using several WCM microphones at the same stage, that each channel should be separated by at least 4 channels. When using 4 WCM microphones, you could use following settings: Changing the sensitivity of the microphone 1) Unscrew the microphone head (1). -
Page 9: Approval
Approval The DAP D1455 is a Class II wireless device. Frequency: 863 – 865MHz. For use in: Austria, Belgium, Czech Republic, Denmark, France, Germany, Hungary, Italy, Luxemburg, Netherlands, Poland, Portugal, Romania, Slovakia, Sweden, Switzerland, Turkey, United Kingdom. Exclusion of liability The frequency tables in this publication are made according to national laws and regulations. -
Page 10: Ce Certificate
Supplier Details Name Highlite International BV Address Vestastraat 2 6468EX Kerkrade The Netherlands Product Details Product Name WCM 16 Wireless condenser microphone Ordercode D1455 Trade Name DAP AUDIO Applicable Standards Details R&TTE Directive : 1999/5/EC Radio Spectrum Matter: EN 300 422-2 V1.2.2:2008-3 Emmission/Immunity: EN 301 489-1 V1.8.1:2008-04 EN 301 489-9 V1.4.1:2007-11... -
Page 11: Maintenance
3. If all of the above appears to be O.K., Set the switch in ON position. 4. If you are unable to determine the cause of the problem, do not open the WCM-16, as this may damage the unit and the warranty will become void.
