Summary of Contents for DAPAudio EM-16

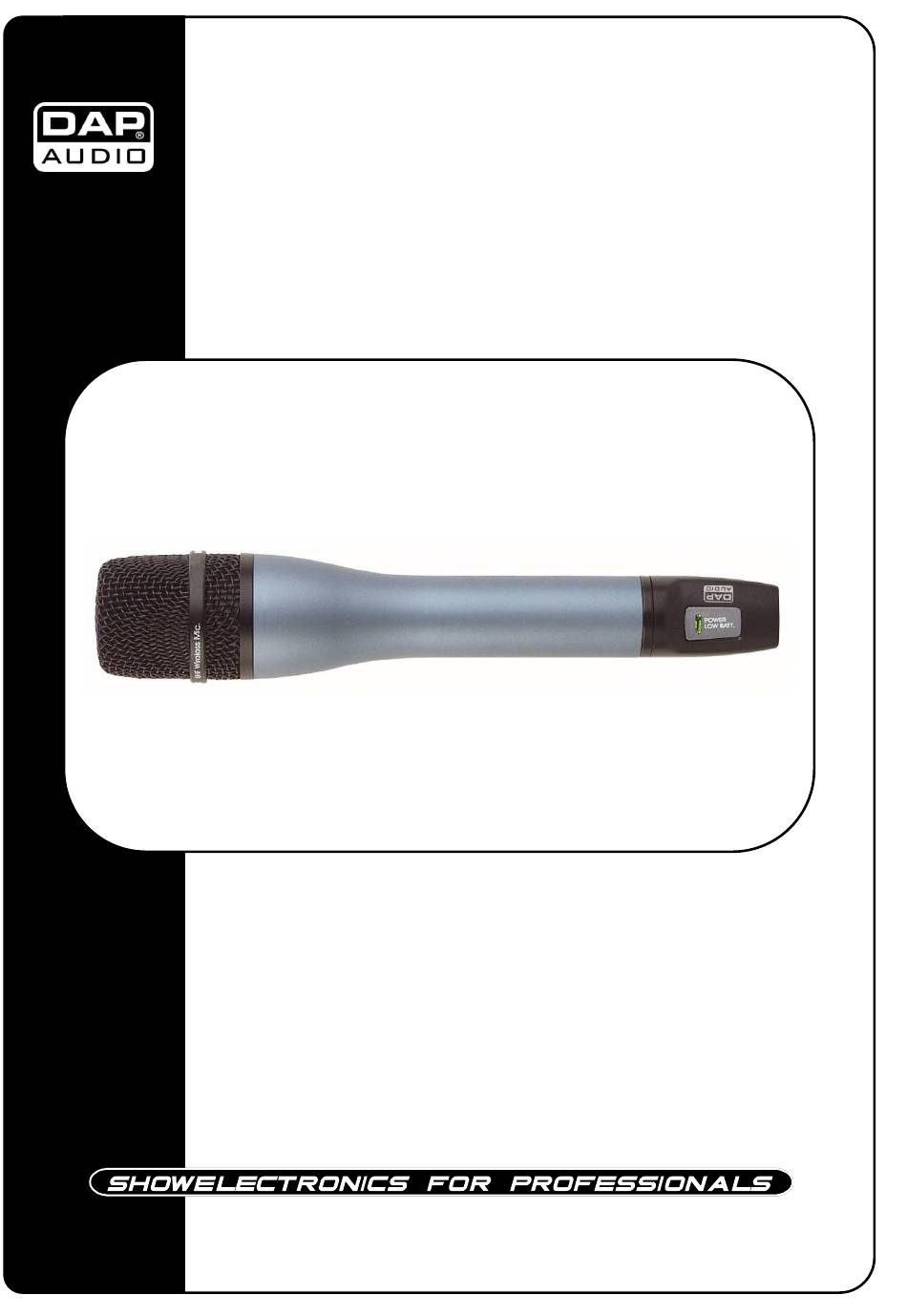

- Page 1 EM-16 ORDERCODE D143179 ORDERCODE D143182...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio EM-16 brings excitement to any venue. You can rely on DAP Audio, for more excellent audio products. We design and manufacture professional audio equipment for the entertainment industry.
-
Page 3: Table Of Contents
DAP Audio DAP Audio EM-16™ Product Guide Warning..................................Unpacking Instructions............................Safety-instructions..............................Operating Determinations............................ Return Procedure..............................Claims..................................Description................................... Features................................... Overview................................. Installation..................................Set Up and Operation..............................Approval..................................Declaration of conformity............................Maintenance………......…........………..………….…….………….…..... Troubleshooting………......…........………..………….…….………….…....... Product Specifications..............……………….…….…………………....... -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • 1 DAP EM-16 • 1 Screwdriver • 8 colour- coded protection caps •... -
Page 5: Operating Determinations
Do not open the device and do not modify the device. Do not switch the system on and off in short intervals, as this would reduce the system’s life. Do not drive the inputs with a signal level bigger, than required to drive the equipment to full output. -
Page 6: Description
Description of the device Features The EM-16 is a professional wireless microphone from Dap Audio. There are two types ranges available: D143179, frequency range 790 – 814Mhz D143182, frequency range 822 – 846Mhz • PLL synthesized 16 switchable frequencies. • Operation in the UHF range. -
Page 7: Set Up And Operation
Set Up and Operation Before turning the Mic-193 on, always make sure that the frequency matches your country. Placing the batteries ) Unscrew the grill of the microphone counter clockwise and take the plastic cover off from the back. 2) Once you have removed the grill. You see a small lip, which you have to push. 3) Pull out the battery holder. -
Page 8: Approval
Tips for achieving maximum performance. Make sure you can always see a receiver antenna from the transmitter position. Keep the distance from transmitter to receiver antenna as short as possible. Point the receiver antennas away from each other at 45 degrees angle from vertical position. ... -
Page 9: Declaration Of Conformity
Declaration OF CONFORMITY This certifies that the following designated product: Name: EM-16 Wireless PLL 790-814 Handheld microphone 16 Freq Model No.: D143179 Brand Name: DAP AUDIO (Product Identification) Authorized by the European Union to act as Conformity Assessment Body in accordance with the R&TTE Directive 1999/5/EC EN 300 422-2 V1.2.2(2008-03) - Page 10 Declaration OF CONFORMITY This certifies that the following designated product: Name: EM-16 Wireless PLL 822-846 Handheld microphone 16 Freq Model No.: D143182 Brand Name: DAP AUDIO (Product Identification) Authorized by the European Union to act as Conformity Assessment Body in accordance with the R&TTE Directive 1999/5/EC EN 300 422-2 V1.2.2(2008-03)
-
Page 11: Maintenance
3. If all of the above appears to be O.K., Set the switch in ON position. 4. If you are unable to determine the cause of the problem, do not open the EM-16, as this may damage the unit and the warranty will become void. - Page 12 2010 Dap Audio.
