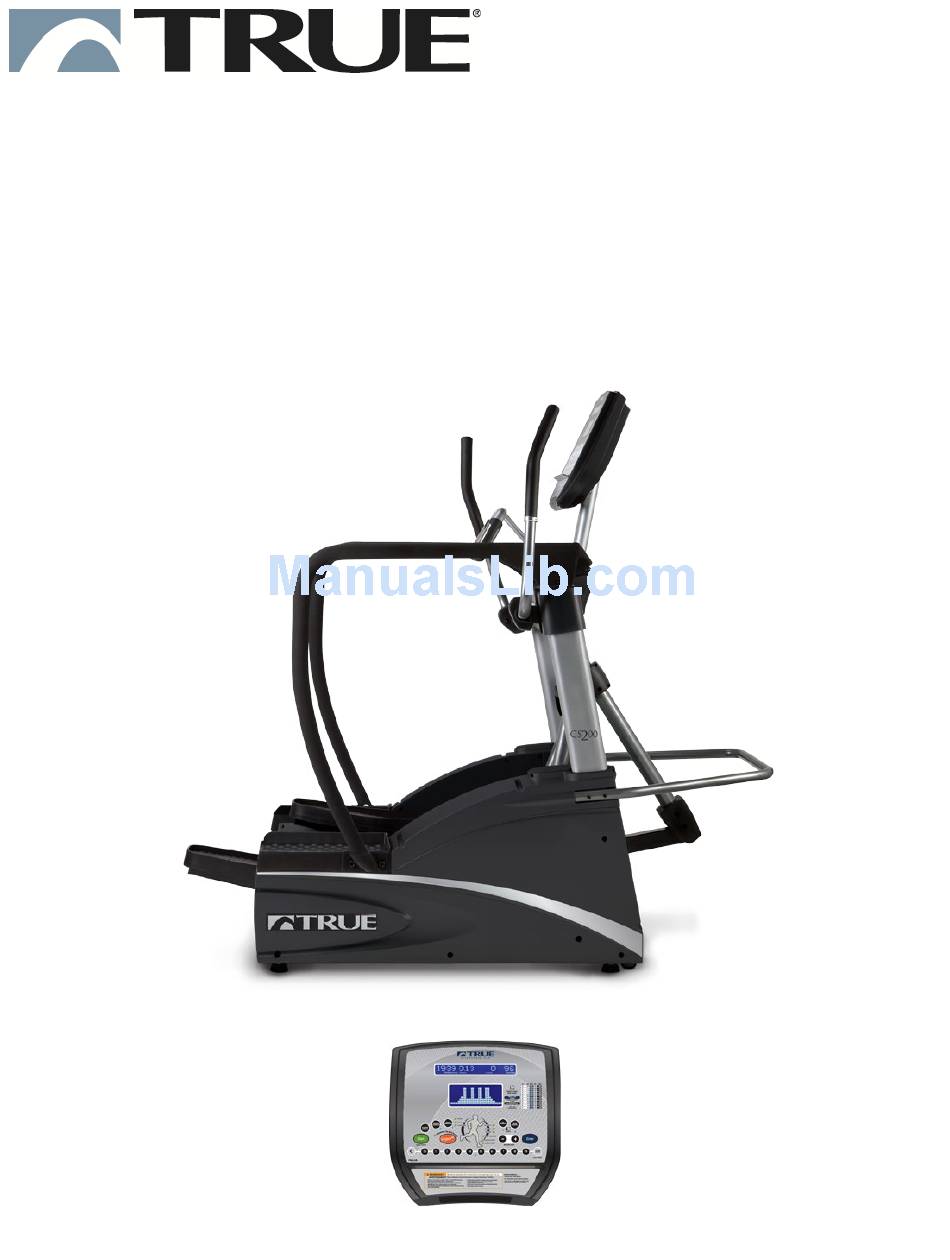

* Assembly Guide & Warranty Card Included
CS200 ELLIPTICAL
OWNER'S MANUAL
Revision 061317

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for True Fitness CS200

Summary of Contents for True Fitness CS200

  • Page 1 * Assembly Guide & Warranty Card Included CS200 ELLIPTICAL OWNER’S MANUAL Revision 061317...
  • Page 2 CS200 ELLIPTICAL OWNERS MANUAL IMPORTANT: All Products shown are prototype. Actual product delivered may vary. Product specifications, features & software are subject to change without notice. For the most up to date owner’s manual please visit www.truefitness.com. For documents in additional languages please visit www.truefitness.com/document-library/29/international-manuals IMPORTANTE: Todos los productos mostrados son prototipos.
  • Page 3 CS200 ELLIPTICAL OWNERS MANUAL Frank Trulaske, founder and CEO of TRUE, has had the same simple philosophy of delivering superior products, service and support for over 30 years. Today, TRUE is the global leader in premium cardio equipment for the commercial and residential markets.

  • Page 4: Table Of Contents

    CS200 ELLIPTICAL OWNERS MANUAL TABLE OF CONTENTS : Chapter 1: Safety Instructions Chapter 5: Care & Maintenance Safety Instructions Care & Maintenance Space Requirements Cleaning the Equipment Grounding Instructions Leveling the Unit Power Requirements Other Scheduled Preventive Maintenance Warning Decals...

  • Page 5: Chapter 1: Safety Instructions

    Do not modify the plug provided with this product. If it will not fit an electrical outlet, have a proper outlet installed by a qualified electrician. Your TRUE Fitness product must be properly grounded to reduce risk of shock if the elliptical malfunctions.
  • Page 6 CHAPTER 1: SAFETY INSTRUCTIONS WARNING: Risk of personal injury-crushing hazard when elliptical is in operation - Keep feet, hands, and fingers away from moving parts. CAUTION: • Health related injuries may result from incorrect or excessive use of exercise equipment. •...

  • Page 7: Space Requirements

    CHAPTER 1: SAFETY INSTRUCTIONS • Avoid exiting elliptical while the foot skate is still in motion • Do not use if you have a cold or fever. • When using this exercise machine, basic precautions should always be followed. • Use this t elliptical only for its intended use as described in this manual.

  • Page 8: Grounding Instructions

    CHAPTER 1: SAFETY INSTRUCTIONS GROUNDING INSTRUCTIONS: This product must be grounded, if it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug.

  • Page 9: Power Requirements

    CHAPTER 1: SAFETY INSTRUCTIONS Truefitness.com / 800.426.6570 / 636.272.7100...

  • Page 10: Warning Decals

    CHAPTER 1: SAFETY INSTRUCTIONS WARNING DECALS: WARNING: Replace warning labels that may be worn, damaged or missing. *To replace any worn or missing warning decals contact TRUE FITNESS by one of the following: www.truefitness.com or contact customer service at 800-883-8783. COMPLIANCES: This equipment complies with all applicable codes and regulations.
  • Page 11                  Truefitness.com / 800.426.6570 / 636.272.7100...

  • Page 12: Chapter 2: Assembly Instructions

    CHAPTER 2: ASSEMBLY INSTRUCTIONS ELLIPTICAL ASSEMBLY STEPS: Parts Identification: Use this diagram to identify the parts used in each step. Exercise Arms Step 2 Console Bottle Holders Step 9 Step 8 Side Rails Display Neck/Shrouds Step 7 Step 4 & 5 Upper Shrouds Step 3 Front Guard...
  • Page 13 CHAPTER 2: ASSEMBLY INSTRUCTIONS ELLIPTICAL ASSEMBLY STEPS (continued): Step 1: Secure Left Pedal Link: a) Important: With machine still on pallet, attach left pedal linkage to crankshaft as shown. b) Secure with four M8 bolts using 6mm hex key. Use ball end of hex key for bottom screw.
  • Page 14 4 M5 x 0.8 x 16 Screws   Truefitness.com / 800.426.6570 / 636.272.7100...
  • Page 15 CHAPTER 2: ASSEMBLY INSTRUCTIONS ELLIPTICAL ASSEMBLY STEPS (continued): Step 5: Attach Neck Shroud: a) Install and tighten M4 screws into FRONT back half of neck shroud and also into front half of shroud to secure around neck. b) Install M5 screws into back half of neck shroud and secure to shoulder.
  • Page 16 CHAPTER 2: ASSEMBLY INSTRUCTIONS ELLIPTICAL ASSEMBLY STEPS (continued): Step 7: Attach Side Rails: a) Install each side rail with two M12 bolts (10 mm hex key) at the bottom and with two M8 bolts (6mm hex key) at the top as shown in Fig 7. NOTE: Side rails are marked “L”...
  • Page 17 CHAPTER 2: ASSEMBLY INSTRUCTIONS ELLIPTICAL ASSEMBLY STEPS (continued): Step 9: Console Assembly: a) Connect all wires coming from the AUXPS Cable CNTRL Cable display neck to the console as shown. CSAFE Power LEFT Heart Rate (optional) RIGHT Heart Rate GROUND Cable b) Attach the GROUND cable to the ground screw on the display neck.
  • Page 18 CHAPTER 2: ASSEMBLY INSTRUCTIONS ELLIPTICAL ASSEMBLY STEPS (continued): Optional Power Supply Installation: a) Take off eight T-25 screws holding inner right front cover plate. Remove plate. b) Cut wire tie holding two cables to Cut Wire frame support. c) Firmly plug Power Cord (installed Power Supply from factory) into Auxiliary Power AUXPS...

  • Page 19: Chapter 3: Product Overview

    CHAPTER 3: PRODUCT OVERVIEW ELLIPTICAL OVERVIEW: Upper Exercise Arms Console Assembly Contact Heart Rate Pads Side Steps Foot Pads Power Cord Leveling Feet Truefitness.com / 800.426.6570 / 636.272.7100...
  • Page 20 CHAPTER 3: PRODUCT OVERVIEW ELLIPTICAL OVERVIEW (continued): Console Assembly: The console allows the user to set up a workout program and control the elliptical during a workout (For console overview and operation instructions refer to the owner’s manual for the selected console option). Upper Exercise Arms: Moving handles on the elliptical that provide resistance to the upper body during a workout.

  • Page 21: Chapter 4: Programming & Operation Heart Rate Monitoring

    CHAPTER 4: PROGRAMMING & OPERATION HEART RATE MONITORING: This elliptical can monitor a user’s heart rate using either a Polar® compatible chest strap or the metal grips on the hand rails (called contact heart rate or CHR pads). A chest strap transmits the user’s heart rate to the elliptical via radio, and the CHR pads connect to a special computer circuit to extract the user’s heart rate.

  • Page 22: Target Heart Rate

    CHAPTER 4: PROGRAMMING & OPERATION HEART RATE CONTROL (continued): The TRUE HRC system is unique because users must enter the key parameters of the workout; target heart rate, weight, age, and time, prior to beginning the HRC workout. As users approach their target heart rate, the elliptical’s computer takes full control over the workout and changes the workout intensity automatically to keep users near their target heart rate.

  • Page 23: Program Descriptions

    CHAPTER 4: PROGRAMMING & OPERATION PROGRAM DESCRIPTIONS: Quick Start: A workout in which the user controls all settings. The workout continues until it is ended by the user. Cardio 360™ Quick Start: Get right into a pre-set 20-minute workout designed to shape and tone every major muscle group. Manual: Users s their...

  • Page 24: Console Overview

    CHAPTER 4: PROGRAMMING & OPERATION CONSOLE OVERVIEW: Preset Upper LED Lower LED Manual HRC Cruise Target Display Workouts Workout Display Display Workouts Control Workload Change Keys Display Start Enter Numeric Warning Cardio 360™ Reading Keypad Decal Rack Truefitness.com / 800.426.6570 / 636.272.7100...

  • Page 25: Manual Workout

    CHAPTER 4: PROGRAMMING & OPERATION CONSOLE OVERVIEW (continued): Workload Keys: Manually increases or decreases the workout intensity. Start: Allows the user to begin a Quick Start workout or preset workout. Preset Workouts: Pressing this button scrolls through available workouts. When the desired workout is displayed, the user must press enter to input user data and begin the workout.

  • Page 26: Console Navigation

    CHAPTER 4: PROGRAMMING & OPERATION CONSOLE OVERVIEW (continued): Upper LED Display: Shows the workout data of the program in progress in four value displays. Value Display #1 Value Display #2 Value Display #3 Value Display#4 Calories – an estimate Heart Rate – Beats per Time Remaining –...
  • Page 27 CHAPTER 4: PROGRAMMING & OPERATION CONSOLE NAVIGATION (continued): Workout Data Entry: Before beginning a preset workout, the console will ask the user for information in order to give more accurate workout data. To adjust the Data Value (A), use the Numeric Keypad (B) or the Up and Down Workload Keys (C).
  • Page 28 CHAPTER 4: PROGRAMMING & OPERATION CONSOLE NAVIGATION (continued): Cardio 360™: TRUE’s unique Cardio 360™ is like having a personal trainer built in to the elliptical, walking users through a full-body workout. In just minutes, users will work their upper-body, lower-body and core. Plus, with the variety that Cardio 360™ brings, it will take the bore out of working out.

  • Page 29: Advanced Console Functions

    CHAPTER 4: PROGRAMMING & OPERATION ADVANCED CONSOLE FUNCITONS: Entering Setup Mode: Setup mode allows the user to change the default options for the console and allow the unit to be customized to the facility in which it is installed. To enter Setup Mode, press and hold the Clear Entry button (A) until the console beeps. While continuing to hold the Clear Entry button, immediately press and hold the Enter button (B) until “ENTER PASS CODE”...

  • Page 30: Truefitness.com / 800.426.6570 / 636.272.7100

    CHAPTER 4: PROGRAMMING & OPERATION ADVANCED CONSOLE FUNCITONS (continued): Entering Maintenance Mode: Maintenance Mode is used to troubleshoot issues and to test console functions. To enter Maintenance Mode, press and hold the Clear Entry button (A) until the console beeps. While continuing to hold the Clear Entry button, immediately press and hold the Enter button (B) until “ENTER PASS CODE”...

  • Page 31: Chapter 5: Care & Maintenance

    CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness Warranty. Never pour water or spray liquids on any part of the elliptical. Allow the elliptical to dry completely before using.

  • Page 32: Leveling The Unit

    Inspect all components for abnormal or premature wear. • CAUTION: Use only TRUE Fitness certified service providers. LONG TERM STORAGE: When the elliptical is not in use for any length of time, turn it off. Make sure that the power cord is unplugged from the power source and is positioned so that it will not become damaged or interfere with people or other equipment.

  • Page 33: Chapter 6: Customer Service

    CONTACTING SERVICE: TRUE Fitness recommends that you gather the serial number, model number, and a brief description of the reason for the request. After information has been gathered you may choose to contact your selling dealer or local service company to set an appointment.

  • Page 34: Reporting Freight Claims Or Parts Damage

    Obvious damage to external packaging / internal product. Please refuse the shipment and it will be returned to TRUE Fitness by the carrier. Contact the TRUE Fitness customer support team by calling 800.883.8783 or sales support team by calling 800.426.6570 Monday-Friday during normal business hours to notify us that the shipment has been refused. Once we have received the damaged shipment, a replacement shipment will be sent to you.

  • Page 35: Chapter 7: Additional Information

    Using a voltmeter or alternate device verify power at wall outlet Charge the battery overnight with optional power supply Battery is discharged (if applicable) Motor control board Contact True Fitness Customer Service Department damaged (if applicable) Damaged power cord Replace power cord...
  • Page 36 CHAPTER 7: ADDITIONAL INFORMATION TROUBLESHOOTING GUIDE (continued): Malfunction Possible Cause Corrective Action Transmitter belt contacts are not making good contact Readjust the transmitter belt so that it is in full contact with the skin with the skin Contacts on the transmitter Moisten the contacts on the transmitter belt belt are not moist Transmitter belt is not...

  • Page 37: M30 Specification Sheet

    The patented core-drive allows for safe and easy entry and exit, low step up and True's exclusive Cardio 360 total body workouts. The CS200 elliptical from True allows users to get more from less. Truefitness.com / 800.426.6570 / 636.272.7100...
  • Page 38 CHAPTER 7: ADDITIONAL INFORMATION ELLIPTICAL TECHNICAL Power Source Self-Generating SPECIFICATIONS Drive System Core Drive™ Total Body Workout Cardio 360 (upper body, lower body, total body) Resistance Source Hybrid Self-Generating Brake Workload Range 30 - 450 Watts Frame Construction Robotically Welded Heavy-Gauge Steel Stride Length 21"...

  • Page 39: M50 Specification Sheet

    *TRUE Fitness shall not warrant the performance of the heart rate system on its truefitness.com / 800.426.6570 / 1.636.272.7100...
  • Page 40 Registration Form is completed on-line; or if the attached form is filled in, signed by the original purchaser and mailed to TRUE The CS200 elliptical comes with two serial numbers; one on the within 30 days of purchaser’s receipt of this Product. The serial base and one on the display console (see diagram below).

  • Page 41: Warranty Registration

    If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.
