APEX RECUMBENT ELLIPTICAL
OWNER'S MANUAL AND ASSEMBLY GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APEX XC1-RA-35 and is the answer not in the manual?

Questions and answers

Related Manuals for True Fitness APEX XC1-RA-35

Summary of Contents for True Fitness APEX XC1-RA-35

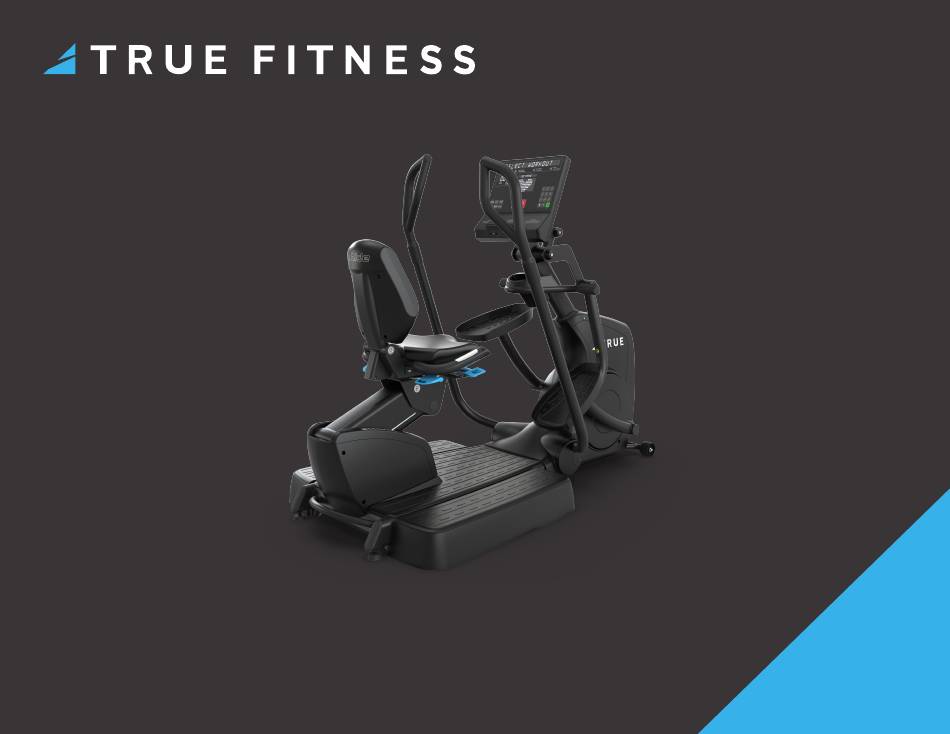

  • Page 1 APEX RECUMBENT ELLIPTICAL OWNER’S MANUAL AND ASSEMBLY GUIDE...

  • Page 2: Important-Please Read

    Interested in owning more TRUE products? Please contact us with any product inquires so that we may direct you to the appropriate sales representative to help answer your questions. • Phone | 800.426.6570 • Email | sales@truefitness.com • Hours | Monday - Friday 8:30am - 5:00pm (CST) © 2025 TRUE Fitness All Rights Reserved.

  • Page 3: Reporting Freight Claims Or Parts Damage

    Once you have called the carrier you will need to gather the serial number, model number, description of damage, and photos of damage. Contact TRUE product support (service@truefitness.com | 800.883.8783) or TRUE sales support (sales@truefitness.com | 800.426.6570) Monday-Friday during normal business hours. © 2025 TRUE Fitness All Rights Reserved.

  • Page 4: Table Of Contents

    COMPLIANCES................9 PROPER USE.................10 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST............11 ASSEMBLY STEPS.................14 PRODUCT FEATURES BASE OVERVIEW................27 CONSOLE OVERVIEW..............28 CARE AND MAINTENANCE INSPECTION................30 CLEANING THE EQUIPMENT............30 LEVELING THE MACHINE..............30 PREVENTATIVE MAINTENANCE............31 LONG TERM STORAGE..............31 ADDITIONAL INFORMATION TROUBLESHOOTING..............32 © 2025 TRUE Fitness All Rights Reserved.

  • Page 5: Safety Instructions

    Do not move the equipment by lifting the console. Do not use the console as a handlebar during a workout. • Close supervision is necessary when used near children under the age of 15, or disabled persons. © 2025 TRUE Fitness All Rights Reserved.
  • Page 6 110V AC input and 9V DC 1.5 amp output for console operation only. • The batteries within self-generated equipment contain materials that are considered hazardous to the environment. Federal law requires proper disposal of these batteries. © 2025 TRUE Fitness All Rights Reserved.

  • Page 7: Power Requirements

    XC1-RA-35 with the optional power supply. NEMA 6-15 Up to 5 units per Non-LED consoles require the 350 watts per 50/60Hz circuit—DO NOT optional power supply. machine exceed © 2025 TRUE Fitness All Rights Reserved.

  • Page 8: Space Requirements

    ◦ 72” x 39” x 56” (182cm x 98cm x 142cm) • MAXIMUM USER WEIGHT Active Footprint 400 lbs / 181 kg ◦ 72” x 39” x 56” (182cm x 98cm x 142cm) © 2025 TRUE Fitness All Rights Reserved.

  • Page 9: Warning Decals

    EUROPEAN COUNCIL DIRECTIVE 2011/65/EU, ON THE RESTRICTION OF .XXX 0.100 USE OF CERTAIN HAZARDOUS SUBSTANCES (RoHS). 104589-001 SIZE DWG. NO. REV. APPROVALS DATE DRAWN BY 12/5/2005 SCALE 1:1 DO NOT SCALE DRAWING SHEET 1 OF 1 © 2025 TRUE Fitness All Rights Reserved.

  • Page 10: Proper Use

    Remove feet from pedals and place on the floor. • Exit the machine from either side. NOTE: The elliptical trainer is not equipped with a free wheel, therefore the moving parts are unable to stop immediately. © 2025 TRUE Fitness All Rights Reserved.

  • Page 11: Assembly Instructions

    13mm (Qty 2) and (optional but Flat Head 17mm Wrench recommended) Screwdriver 5mm and 6mm Rubber Mallet Allen Wrench Ratchet Wrench with 5mm and Wire Cutters 6mm Socket Bits and 13mm Socket (optional but recommended) © 2025 TRUE Fitness All Rights Reserved.

  • Page 12: Box Contents

    Side Steps Hardware Bag Manual *NOTE: The Mast Boot and End Caps should come preinstalled on the Base. If they come loose in the packaging, press them back in place on the Base. © 2025 TRUE Fitness All Rights Reserved.

  • Page 13: Hardware Pack Contents

    WASHER, WAVE, 26.2 X 33.9 X 0.4 8022048 SCREW, M8 X 1.25 X 10, SBHCS, STAINLESS STEEL 8008949 ALLEN KEY, 6MM, HEX 103083-001 WRENCH, M5 HEX KEY 103393-001 NUT, HEX, NYLON INSERT, M8 X 1.25, CZ CLASS 10 © 2025 TRUE Fitness All Rights Reserved.

  • Page 14: Assembly Steps

    Reattach the retainer and M8 socket head cap screw. Securely fasten. When using a torque wrench fasten to 26 n-m (19 ft-lb). flat when using a torque wrench edge = 26 N-M (19 FT-LB) © 2025 TRUE Fitness All Rights Reserved.
  • Page 15 Once the seat bracket and damper are aligned, insert the M6 socket head cap screw and using a 5mm allen wrench, securely fasten. When using a torque wrench fasten to 10 n-m (7 ft-lb). when using a torque wrench = 10 N-M (7 FT-LB) © 2025 TRUE Fitness All Rights Reserved.
  • Page 16 NOTE: If needed, use the previously removed wire ties as fishing wire to help pull the cable bundle up and out the top of the mast. © 2025 TRUE Fitness All Rights Reserved.
  • Page 17 D. Using a 6mm allen wrench and four M8 socket head cap screws, securely fasten the mast to the frame. When using a torque wrench fasten to all six screws to 40 n-m (30 ft-lb). when using a torque wrench = 40 N-M (30 FT-LB) © 2025 TRUE Fitness All Rights Reserved.
  • Page 18 *IMPORTANT! Only one 2-pin power cable is used. If your console is a touchscreen, use power* the DC power. If your console is an LED, use I/O data the self gen power. © 2025 TRUE Fitness All Rights Reserved.
  • Page 19 Using a flat head screwdriver, gently unsnap aside the screws securing the crank arm covers and them remove and set the bottom of the shroud and remove and set aside the shroud. aside the covers. unsnap here © 2025 TRUE Fitness All Rights Reserved.
  • Page 20 13mm wrench. When using a torque wrench fasten to 26 n-m (19 ft-lb). longer when using a torque wrench = 26 N-M (19 FT-LB) when using a torque wrench = 26 N-M (19 FT-LB) © 2025 TRUE Fitness All Rights Reserved.
  • Page 21 POWER CORD, USA, 3 PIN Once you have verified the console powers up, use a #2 Phillips screwdriver to reattach the crank arm covers and lower rear shroud. G. Repeat for left moving handlebar. © 2025 TRUE Fitness All Rights Reserved.
  • Page 22 B. For the right pedal, place a wave washer onto the crank axle and then slide foot rest bracket to the mast. Verify all four screws are securely fastened. the pedal into place. Insert a washer and socket head cap screw into the pedal hub. © 2025 TRUE Fitness All Rights Reserved.
  • Page 23 Using a 6mm allen wrench fully tighten. When using a torque wrench fasten to 26 n-m (19 ft-lb). when using a torque wrench = 26 N-M (19 FT-LB) when using a torque wrench = 26 N-M (19 FT-LB) E. Repeat for left pedal. © 2025 TRUE Fitness All Rights Reserved.
  • Page 24 C. Verify both lock nuts are securely tightened and flush against the bottom of the frame. lock lock leveling leveling foot foot © 2025 TRUE Fitness All Rights Reserved.
  • Page 25 Please follow the instructions included with your console for important configuration steps. Please contact product support right away if you run into issues setting up the machine: 800.883.8783 | service@truefitness.com | Monday–Friday 8:30am–5:00pm (CST) © 2025 TRUE Fitness All Rights Reserved.
  • Page 26 © 2025 TRUE Fitness All Rights Reserved.

  • Page 27: Product Features Base Overview

    J. Moving Multigrip Handlebars Engage the upper body during exercise. K. Stationary Handlebars with Contact Heartrate Grips and Fingertip Controls Check heartrate without wearing a wireless chest strap. Adjust level up and down during a workout. © 2025 TRUE Fitness All Rights Reserved.

  • Page 28: Console Overview

    CONSOLE OVERVIEW UNITE TOUCHSCREENS (16” SHOWN) Choose Workout Bluetooth Compatible Apple Watch Compatible Choose Language Galaxy Watch Compatible Lock Screen for Cleaning Tap to Pair Wireless Charging HDMI 3.5mm Headphone Jack © 2025 TRUE Fitness All Rights Reserved.
  • Page 29 UNITE LED Eight Dedicated Data Points Manually Adjust Level Dedicated Message Center Bright White LEDs Keypad Choose Workout © 2025 TRUE Fitness All Rights Reserved.

  • Page 30: Care And Maintenance

    CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness Warranty. Never pour water or spray liquids on any parts of the machine. Allow the machine to dry completely before using. Frequently vacuum the floor underneath the unit to prevent the accumulation of dust and dirt, which can affect the smooth operation.

  • Page 31: Preventative Maintenance

    TRUE recommends that quarterly scheduled maintenance be performed by a qualified service technician. Please contact your dealer or visit www.truefitness.com to contact a local TRUE authorized service technician. IMPORTANT! Use only TRUE Fitness certified service providers. Using non-authorized service providers could void the TRUE Warranty. Frequency...

  • Page 32: Additional Information Troubleshooting

    Obtain set top box from video provider Verify video type with provider; analog (NTCS), digital air (ATCS), digital cable (QAM) Channels or format type not correct Rescan TV channels Tuner Invalid Contact TRUE Product Support © 2025 TRUE Fitness All Rights Reserved.
  • Page 33 Cables are pinched or damaged Contact TRUE product support Contact Heart Rate not displaying Nucleus board may be damaged Contact TRUE product support Heart Rate Grips may be damaged Contact TRUE product support © 2025 TRUE Fitness All Rights Reserved.

  • Page 34: Warranty Information Commercial Warranty

    Coax/TV, HDMI, USB, mirroring or 1 Year Bearings Ethernet connections, and safety key. Labor** 1 Year See Warranty Details for terms, conditions, and complete coverage details. Wear Items*** 90 Days © 2025 TRUE Fitness All Rights Reserved.

  • Page 35: Limited-Use Commercial Warranty

    LIMITED-USE COMMERCIAL WARRANTY* TRUE Fitness may offer alternative warranties to purchasers of CARDIO commercial equipment for limited-use commercial* or in-home use.** This policy ensures that customers who use commercial LAUNCH equipment for limited-use commercial or in-home use may WARRANTY GRAVITY...

  • Page 36: Warranty Details

    WARRANTY DETAILS All TRUE Fitness products are distributed by TRUE and are warranted to the original registered product purchaser and the parts of the TRUE product (the “Product”) listed below, under normal use and service, shall be free of manufacturing defects in workmanship and materials only for the specified period of time.

  • Page 37: Warranty Registration

    WARRANTY REGISTRATION Base Serial Number Console Serial Number Purchase Date Company (if applicable) Customer Name (First and Last) Email Address Phone Number Street Address City State Postal Code Country © 2025 TRUE Fitness All Rights Reserved.
  • Page 38 CONTACT US service@truefitness.com 800.883.8783 865 Hoff Road St. Louis, MO 63366 T R U E F I T N E S S . C O M MAN-XC1-RA-35 Owner’s Manual and Assembly Guide REV06 © 2025 TRUE Fitness All Rights Reserved.
