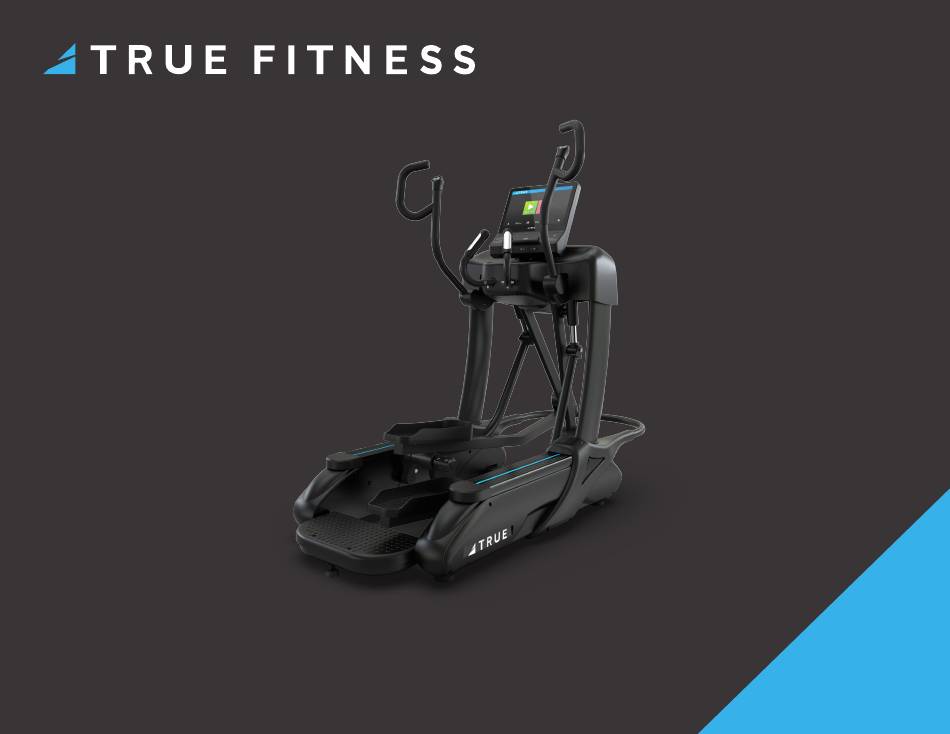

VAPOR SPECTRUM
OWNER'S MANUAL AND ASSEMBLY GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VAPOR SPECTRUM XC1-SA-35 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for True Fitness VAPOR SPECTRUM XC1-SA-35

Summary of Contents for True Fitness VAPOR SPECTRUM XC1-SA-35

  • Page 1 VAPOR SPECTRUM OWNER’S MANUAL AND ASSEMBLY GUIDE...

  • Page 2: Important-Please Read

    Interested in owning more TRUE products? Please contact us with any product inquires so that we may direct you to the appropriate sales representative to help answer your questions. • Phone | 800.426.6570 • Email | sales@truefitness.com • Hours | Monday - Friday 8:30am - 5:00pm (CST) © 2025 TRUE Fitness All Rights Reserved.

  • Page 3: Reporting Freight Claims Or Parts Damage

    Once you have called the carrier you will need to gather the serial number, model number, description of damage, and photos of damage. Contact TRUE product support (service@truefitness.com | 800.883.8783) or TRUE sales support (sales@truefitness.com | 800.426.6570) Monday-Friday during normal business hours. © 2025 TRUE Fitness All Rights Reserved.

  • Page 4: Table Of Contents

    WARRANTY DETAILS ..............50 WARRANTY REGISTRATION ............51 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST............11 ASSEMBLY STEPS.................15 PRODUCT FEATURES BASE OVERVIEW................39 CONSOLE OVERVIEW..............40 CARE AND MAINTENANCE INSPECTION................42 CLEANING THE EQUIPMENT............42 LEVELING THE MACHINE..............43 PREVENTATIVE MAINTENANCE............44 LONG TERM STORAGE..............44 © 2025 TRUE Fitness All Rights Reserved.

  • Page 5: Safety Instructions

    Do not use this product outdoors, near water, while wet, or in areas of high • Do not move the equipment by lifting the console. Do not use the console as a humidity including extreme temperature changes. handlebar during a workout. © 2025 TRUE Fitness All Rights Reserved.
  • Page 6 9V DC 1.5 amp output for console operation only. • The batteries within self-generated equipment contain materials that are considered hazardous to the environment. Federal law requires proper disposal of these batteries. © 2025 TRUE Fitness All Rights Reserved.

  • Page 7: Power Requirements

    NOT exceed XC1-SA-35 NEMA 6-15 Up to 3 ellipticals 550 watts per 50/60Hz per circuit—DO elliptical NOT exceed NOTE: The plug configuration for the power adapter may vary by country. © 2025 TRUE Fitness All Rights Reserved.

  • Page 8: Space Requirements

    ◦ 78” x 36” (198cm x 91cm) Active Footprint ◦ 85” x 36” (214cm x 91cm) • MACHINE WEIGHT 425 lbs / 193 kg • MAXIMUM USER WEIGHT 400 lbs / 181 kg © 2025 TRUE Fitness All Rights Reserved.

  • Page 9: Warning Decals

    To replace any worn or missing decals contact TRUE product support (service@truefitness.com | 800.883.8783). console serial number location base serial number location COMPLIANCES This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit www.truefitness.com. © 2025 TRUE Fitness All Rights Reserved.

  • Page 10: Proper Use

    Place the opposite foot on the other side platform. • Step down off the machine. NOTE: The elliptical trainer is not equipped with a free wheel, therefore the moving parts are unable to stop immediately. © 2025 TRUE Fitness All Rights Reserved.

  • Page 11: Assembly Instructions

    TOOLS NEEDED FOR ASSEMBLY INCLUDED IN BOX 5mm Allen Wrench 13mm Socket Wrench 6mm Allen Wrench #2 Phillips Screwdriver 8mm Allen Wrench Stubby #2 Phillips Screwdriver Wire Cutters 17mm Wrench Tape Measure 17mm Socket Wrench © 2025 TRUE Fitness All Rights Reserved.

  • Page 12: Box Contents

    PEDAL TUBES ROCKER TUBE COVERS FOOT SKATES FOOT PADS REAR CONSOLE COVER POWER CORD HARDWARE BAG(S) MANUAL *Keep the base, pedestal, rear step frame, and rear step cover on the pallet until Step 3. © 2025 TRUE Fitness All Rights Reserved.

  • Page 13: Hardware Pack Contents

    STEP 6 (NOTE: Bag may be labeled Step 5.) ITEM DESCRIPTION TS1195 SHCS, M8-1.25 X 18MM, STEP 4 (NOTE: Bag may be labeled Step 3.) CNTRSK,LP, BLK ITEM DESCRIPTION XCS0097 SHCS, M8-1.25 X 16MM, LP, BLK © 2025 TRUE Fitness All Rights Reserved.
  • Page 14 PHMS, M5-.08 X 12MM, TS1174 WASHER, FLAT, 8MM ID X 14MM OD X 2.25MM W STEP 11 (NOTE: Bag may be labeled Step 10.) ITEM DESCRIPTION SX0115 HH, M10 X 81.5MM, LP SX0116 HEX NUT, M10 © 2025 TRUE Fitness All Rights Reserved.

  • Page 15: Assembly Steps

    D. Disconnect the Ground cable on the right pedestal hinge. E. Using a 17mm socket and open end wrench, remove the 2 shoulder bolts and 2 nuts from the pedestal hinges and carefully remove the pedestal from the base. © 2025 TRUE Fitness All Rights Reserved.
  • Page 16 Preassembly Step 1—Measure Doorways Continued NOTE: The base can be set on its left side, but only with the attached foam packaging underneath it. © 2025 TRUE Fitness All Rights Reserved.
  • Page 17 IMPORTANT! DO NOT pinch the cables. E. Attach the pedestal to the base using 12 hex screws, but do not tighten. F. Using an 8mm allen wrench, fully tighten the 12 hex screws. © 2025 TRUE Fitness All Rights Reserved.
  • Page 18 2 bolts, but do not tighten. B. Using a 13mm socket wrench, fully tighten the 2 bolts. C. Attach the rear step frame cover to the rear step frame using 4 screws, but do not tighten. © 2025 TRUE Fitness All Rights Reserved.
  • Page 19 B. Carefully walk the unit forward to remove it from the pallet. C. Using a #2 Phillips screwdriver, fully tighten the 4 screws on the rear step frame cover. © 2025 TRUE Fitness All Rights Reserved.
  • Page 20 SHCS, M8-1.25 X 16MM, LP, BLK A. Attach the console mast to the base using 4 hex screws, but do not tighten. B. Using a 6mm allen wrench, fully tighten the 4 hex screws. © 2025 TRUE Fitness All Rights Reserved.
  • Page 21 6 hex screws, 6 flat washers, and 6 spacers, but do not tighten. D. Using a 5mm allen wrench, fully tighten the 6 hex screws, 6 flat washers, and 6 spacers. IMPORTANT! DO NOT overtighten the hardware. © 2025 TRUE Fitness All Rights Reserved.
  • Page 22 SHCS, M8-1.25 X 18MM, CNTRSK,LP, TS1195 A. Attach the upper exercise arms to the base using 8 hex screws, but do not tighten. B. Using a 6mm allen wrench, fully tighten the 8 hex screws. © 2025 TRUE Fitness All Rights Reserved.
  • Page 23 TS1198 PHMS, M5-0.8 X 25MM, BLK arm covers using 4 screws and 2 shorter screws. CX0079 PHMS, M5-0.8 X 12MM, BLK ZP IMPORTANT! DO NOT use an impact drill when assembling plastic components. © 2025 TRUE Fitness All Rights Reserved.
  • Page 24 A. Slide the front guard tube over the posts on the front of the unit. B. Attach the front guard tube using 4 hex screws, but do not tighten. C. Using a 6mm allen wrench, fully tighten the 4 hex screws. © 2025 TRUE Fitness All Rights Reserved.
  • Page 25 Disconnect and set aside the black and white filter output power wires from the input power filter and lower board. Input Power Filter Lower Board Filter Output Power Wires Cable Tie © 2025 TRUE Fitness All Rights Reserved.
  • Page 26 NOTE: Be sure to route the speed sensor wire underneath the front of the transformer without pinching the wire. NOTE: Carefully secure any excess wire. Foam Tape Foam Tape Transformer Input Wires Black Transformer Input Wires © 2025 TRUE Fitness All Rights Reserved.
  • Page 27 Optional Step 8A—Attach Step-Down Transformer Continued E. Using a #2 Phillips screwdriver, reattach the plastic shroud on the right side of the unit using the 5 screws you removed previously. © 2025 TRUE Fitness All Rights Reserved.
  • Page 28 TS1214 PHMS, M5-0.8 X 50MM, BLK WASHER, FLAT, 5.2MM ID X 12MM IMPORTANT! DO NOT use an impact drill when assembling TS1213 OD X 1MM W plastic components. © 2025 TRUE Fitness All Rights Reserved.
  • Page 29 C. Using a 6mm allen wrench, fully tighten the 8 hex screws and 8 curved washers. D. Using a 17mm socket and open end wrench, fully tighten the 2 bolts, 2 lock washers, and 2 hex nuts. © 2025 TRUE Fitness All Rights Reserved.
  • Page 30 2 nuts, but do not tighten. B. Ensure that the pedal tubes are centered on the crankshaft rollers. C. Using a 17mm socket and open end wrench, fully tighten the 2 bolts and 2 nuts. © 2025 TRUE Fitness All Rights Reserved.
  • Page 31 ROCKER TUBE COVER ASSEMBLY SX0004 PHMS, M5-.08 X 12MM, BLK Using a #2 Phillips screwdriver, attach the rocker tube covers using 8 screws. IMPORTANT! DO NOT use an impact drill when assembling plastic components. © 2025 TRUE Fitness All Rights Reserved.
  • Page 32 8 screws. IMPORTANT! DO NOT use an impact drill when assembling plastic components. B. Insert the foot pads into the plastic foot skates and ensure they are secured by the fastening strips. © 2025 TRUE Fitness All Rights Reserved.
  • Page 33 (00567800) and middle two screws button control (00567700). ground do not connect power here NOTE: Depending on the installation, PVS power may not be used. power I/O data © 2025 TRUE Fitness All Rights Reserved.
  • Page 34 Part Description #2 Phillips Screwdriver TS1051BK REAR CONSOLE COVER ASSEMBLY SX0004 PHMS, M5-.08 X 12MM, BLK Using a #2 Phillips screwdriver, attach the rear console cover to the console mast using 1 screw. © 2025 TRUE Fitness All Rights Reserved.
  • Page 35 Parts Used in this Step Item Part Description XCS0116 AC INLET TS1006 AC INLET XPS0080 12” POWER CORD X419000 CORDSET DAISY CHAIN IEC-320 Insert the appropriate power cord into the corresponding power inlet. © 2025 TRUE Fitness All Rights Reserved.
  • Page 36 C. Insert the opposite end of the daisy chain power cord into the corresponding power inlet on a second machine. D. Repeat steps 2 and 3 to connect a third machine. © 2025 TRUE Fitness All Rights Reserved.
  • Page 37 B. Verify all four lock nuts are securely tightened and flush against the bottom of the frame. lock nut lock nut leveling feet © 2025 TRUE Fitness All Rights Reserved.
  • Page 38 Please follow the instructions included with your console for important configuration and calibration steps. Please contact product support right away if you run into issues setting up the machine: 800.883.8783 | service@truefitness.com | Monday–Friday 8:30am–5:00pm (CST) © 2025 TRUE Fitness All Rights Reserved.

  • Page 39: Product Features Base Overview

    Coaxial Port Delivers television signal to the unit. K. Power Supply Inlet J. Ethernet Port Used to provide a network connection for compatible console options. Delivers power from the wall outlet to the elliptical. © 2025 TRUE Fitness All Rights Reserved.

  • Page 40: Console Overview

    CONSOLE OVERVIEW UNITE TOUCHSCREENS (16” SHOWN) Android OS Touchscreen Choose Workout Bluetooth Compatible Apple Watch Compatible Choose Language Galaxy Watch Compatible Lock Screen for Cleaning Tap to Pair Wireless Charging HDMI 3.5mm Headphone Jack © 2025 TRUE Fitness All Rights Reserved.
  • Page 41 UNITE LED Eight Dedicated Data Points Manually Adjust Stride Manually Adjust Level Dedicated Message Center Bright White LEDs Keypad Choose Workout © 2025 TRUE Fitness All Rights Reserved.

  • Page 42: Care And Maintenance

    CARE AND MAINTENANCE It is important to perform the minor maintenance tasks described in this section. Failure to maintain the elliptical as described here could void the TRUE Fitness Warranty. To reduce the risk of electrical shock, always unplug the unit from its power source before cleaning or performing any maintenance tasks.

  • Page 43: Leveling The Machine

    B. Verify all four lock nuts are securely tightened and flush against the bottom of the frame. lock nut lock nut leveling feet © 2025 TRUE Fitness All Rights Reserved.

  • Page 44: Preventative Maintenance

    TRUE recommends that quarterly scheduled maintenance be performed by a qualified service technician. Please contact your dealer or visit www.truefitness.com to contact a local TRUE authorized service technician. IMPORTANT! Use only TRUE Fitness certified service providers. Using non-authorized service providers could void the TRUE Warranty. Frequency...

  • Page 45: Additional Information Troubleshooting

    Error code is displayed on console Contact TRUE product support Pinched or loose main communication cable No User Present displayed on screen User weight must be over 90lbs. Verify No User Present settings in console. © 2025 TRUE Fitness All Rights Reserved.
  • Page 46 Cables are pinched or damaged Contact TRUE product support Contact Heart Rate not displaying Nucleus board may be damaged Contact TRUE product support Heart Rate Grips may be damaged Contact TRUE product support © 2025 TRUE Fitness All Rights Reserved.

  • Page 47: Wiring Diagrams

    WIRING DIAGRAM © 2025 TRUE Fitness All Rights Reserved.

  • Page 48: Warranty Information Commercial Warranty

    Coax/TV, HDMI, USB, mirroring or Bearings Ethernet connections, and safety key. Labor** 1 Year See Warranty Details for terms, conditions, and complete coverage details. Wear Items*** 90 Days © 2025 TRUE Fitness All Rights Reserved.

  • Page 49: Limited-Use Commercial Warranty

    LIMITED-USE COMMERCIAL WARRANTY* TRUE Fitness may offer alternative warranties to purchasers of CARDIO commercial equipment for limited-use commercial* or in-home use.** This policy ensures that customers who use commercial equipment for limited-use commercial or in-home use may LAUNCH WARRANTY GRAVITY...

  • Page 50: Warranty Details

    WARRANTY DETAILS All TRUE Fitness products are distributed by TRUE and are warranted to the original registered product purchaser and the parts of the TRUE product (the “Product”) listed below, under normal use and service, shall be free of manufacturing defects in workmanship and materials only for the specified period of time.

  • Page 51: Warranty Registration

    St. Louis, MO 63366 number location WARRANTY REGISTRATION Base Serial Number Console Serial Number Purchase Date Company (if applicable) Customer Name (First and Last) Email Address Phone Number Street Address City State Postal Code Country © 2025 TRUE Fitness All Rights Reserved.
  • Page 52 CONTACT US service@truefitness.com 800.883.8783 865 Hoff Road St. Louis, MO 63366 T R U E F I T N E S S . C O M MAN-XC1-SA-35 Owner’s Manual and Assembly Guide REV08 © 2025 TRUE Fitness All Rights Reserved.
