Rack and custom installation

WFMRACK adapter
dimensions
WFM5200 Series System Integrator
The instrument is shipped in a wrap-around chassis that covers the instrument
bottom and two sides. A cover is installed on the chassis, and the rear panel
is made up of the module rear panels.
You can operate the instrument in the instrument chassis (be sure the top cover is
on) or installed in an approved portable cabinet or rack adapter. (See page 4, Rack
adapter installation.) You can also install the instrument in a custom installation,
such as a console.
CAUTION.
To prevent damage to the instrument and the cabinet, do not install the
instrument in any cabinet except the WFMRACK-NN, WFMRACK-S2, or other
rack approved by Tektronix for this instrument.
The following two figures show the dimensions of the WFMRACK-NN and
WFMRACK-S2 rack adapter hardware.

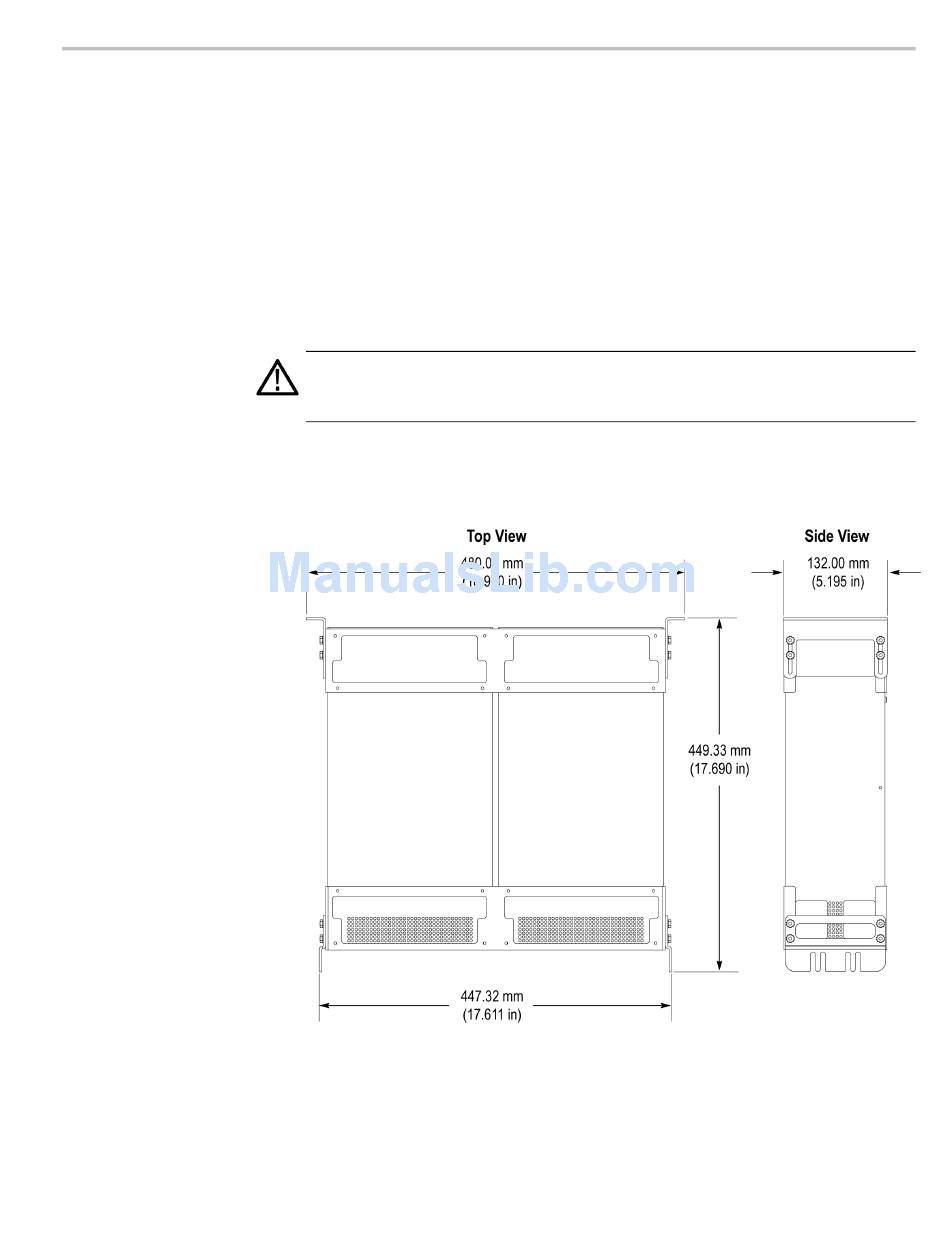

Figure 1: WFMRACK rack adapter dimensions
Rack and custom installation
3
