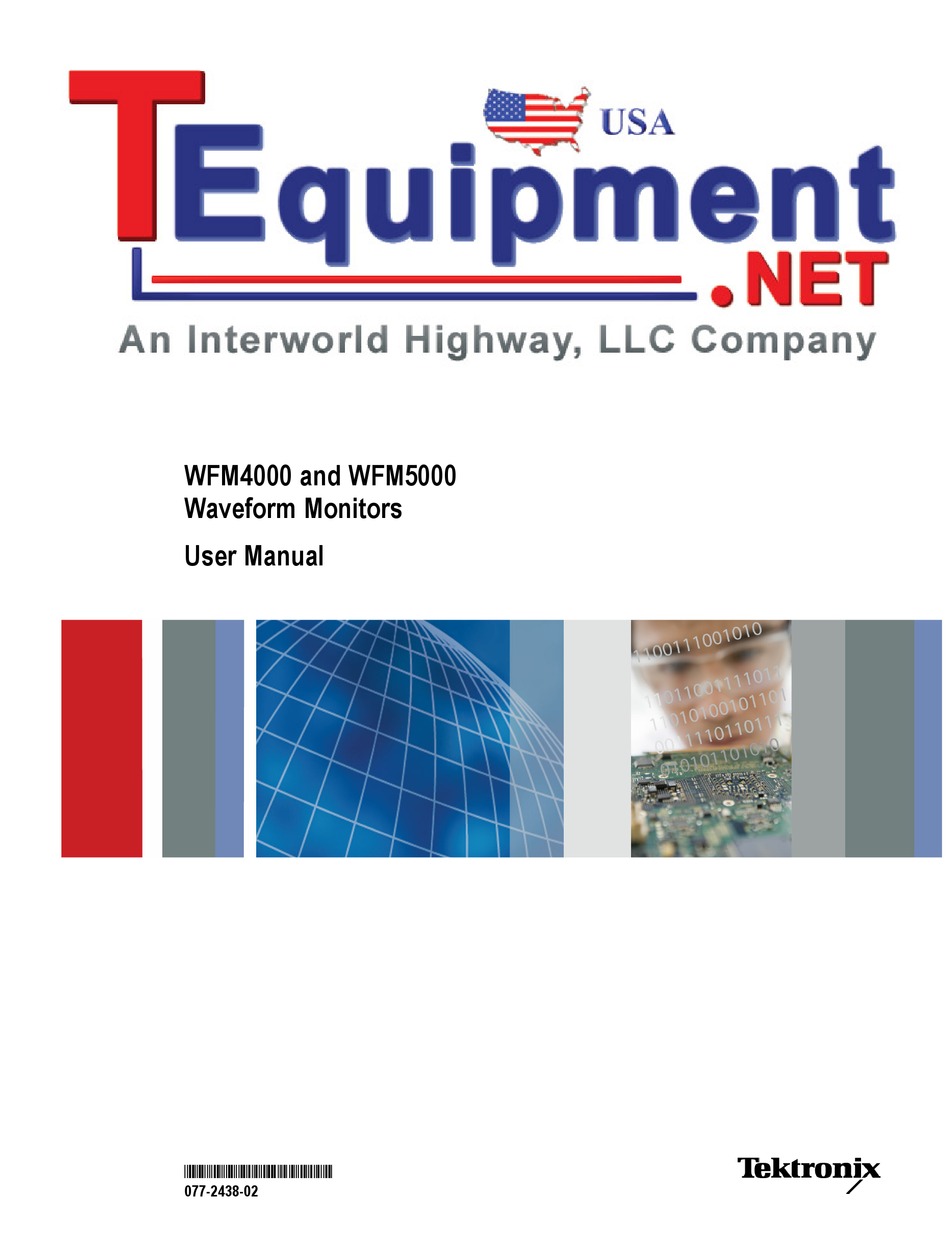

  • Page 1 WFM4000 and WFM5000 Waveform Monitors User Manual *P077243802* 077-2438-02...
  • Page 3 WFM4000 and WFM5000 Waveform Monitors User Manual Revision A www.tektronix.com 077-2438-02...
  • Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
  • Page 5 Warranty Tektronix warrants that this product will be free from defects in materials and workmanship for a period of one (1) year from the date of shipment. If any such product proves defective during this warranty period, Tektronix, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.

  • Page 7: Table Of Contents

    Table of Contents Table of Contents General Safety Summary ......................Environmental Considerations .
  • Page 8 Table of Contents Monitoring Safe Area Graticule ...................... Monitoring for Safe Area Graticule .

  • Page 9: General Safety Summary

    General Safety Summary General Safety Summary Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it. To avoid potential hazards, use this product only as specified. Only qualified personnel should perform service procedures. To Avoid Fire or Personal Injury Use proper power cord.
  • Page 10 General Safety Summary Terms in This Manual These terms may appear in this manual: WARNING. Warning statements identify conditions or practices that could result in injury or loss of life. CAUTION. Caution statements identify conditions or practices that could result in damage to this product or other property. Symbols and Terms on the Product These terms may appear on the product: DANGER indicates an injury hazard immediately accessible as you read the marking.

  • Page 11: Environmental Considerations

    The symbol shown below indicates that this product complies with the European Union’s requirements according to Directive 2002/96/EC on waste electrical and electronic equipment (WEEE). For information about recycling options, check the Support/Service section of the Tektronix Web site (www.tektronix.com). Perchlorate Materials This product contains one or more type CR lithium coin cell batteries.

  • Page 12: Preface

    This manual describes the installation and basic operation of the following instruments: WFM5000 series waveform monitors WFM4000 series waveform monitors Key Features Tektronix waveform monitors can help you monitor SD SDI or HD SDI signals. The following table includes key features of these instruments. Feature Description Flexible tile displays: Full, Quad TIle (4-Tile): View four measurement displays at once, one in each tile.
  • Page 13 Preface Feature Description Error tracking Configurable alarms and error logging. Ground closure Signal sent out of the GCI port of the instrument for a remote notification that an alarm condition occurred. WFM4000 and WFM5000 Waveform Monitors User Manual...

  • Page 14: Instrument Options

    Preface Instrument Options You can add the following service options to any instrument: Option C3. Adds 3 years of Calibration Service. Option C5. Adds 5 years of Calibration Service. Option D1. Adds a Calibration Data Report. Option D3. Adds 3 years of Calibration Data Report (when ordered with option C3). Option D5.

  • Page 15: Where To Find More Information

    Preface Where to Find More Information Item Purpose Location User manual (this manual) Installation procedures and procedures for instrument operation Online help In-depth instrument operation and UI help Specifications and Specifications and performance verification procedures for checking technical reference instrument performance WFM, WVR, and AMM Programming Management Information...
  • Page 16 Preface WFM4000 and WFM5000 Waveform Monitors User Manual...

  • Page 17: Installation

    (including the anti-static bag) in case you need to ship the instrument. Accessories The table below shows which items are standard accessories and which items are optional accessories. Check the Tektronix Web site (www.tektronix.com) for the most current information on accessories.
  • Page 18 Installation Tektronix part Accessory Standard Optional number ● WFM50F02, Dual rackmount for the WFM5000 series and WFM4000 WFM50F02 series ● WFM50FGM Anton Bauer battery adapter mounting plate for the WFM50FGM WFM4000 and WFM5000 NOTE. Battery and charger must be ordered separately.

  • Page 19: Connecting Power And Powering On/Off

    Risk of personal injury and/or property damage from falling instrument. This instrument was not designed to be used with batteries of a different shape or weight than the battery available for this product from Tektronix. Other batteries may make the unit too heavy in the back, causing the instrument to tip backward.

  • Page 20: Installing In A Video System

    Installation Installing in a Video System The instrument can operate almost anywhere in the distribution system. Refer to the following diagrams for serial digital system inputs. For monitoring the video bit stream at the end of a link If the instrument is placed at the end of a link, this setup can be used.
  • Page 21 SDI or reference connectors in end-of-link setups must be 75 Ω and DC coupled (good return loss extends to DC). An appropriate termination would be a 75 Ω End of Line terminator, Tektronix part number 011-0163-XX. Compatibility of BNC Center Pins Most video equipment BNC connectors, whether 50 Ω...

  • Page 22: Getting Acquainted With Your Instrument

    Getting Acquainted With Your Instrument Getting Acquainted With Your Instrument Instrument Display This instrument supports the following displays: Waveform: Normal, Display Overlay modes Vector: Normal, SDI—> Composite, Lightning, Display Overlay modes Gamut: Arrowhead, Diamond, Split Diamond Picture Audio: Bars, Lissajous, or both Status: Timing Display, Alarm Status, Event/Error Log, Video Session, Audio Session, Audio Control Picture Thumbnail Display The picture thumbnail feature displays the thumbnail of the picture in the selected measurement display.
  • Page 23 Getting Acquainted With Your Instrument To Determine Status At-a-Glance The Status Bar, located at the bottom of the instrument display, shows the instrument status and the monitored signal information. The following table describes the display elements shown on the status bar. Display element Description Input Format...
  • Page 24 Getting Acquainted With Your Instrument Status Bar Icons Display icons Description Warning - Appears when an error or an alarm that is mapped to the user interface triggers. Alarms Muted - Appears when the alarms are muted from the STATUS pop-up menu. Alarms Disabled - This text appears in the Status Bar when Alarms are disabled from the Configuration menu.

  • Page 25: Front-Panel Controls

    Getting Acquainted With Your Instrument Front-Panel Controls NOTE. Some of the controls that this section covers are option-dependent. For a list of the options that are installed on your instrument, press the CONFIG button. In the Configuration menu, select the Utilities submenu. The View Instruments Options entry lists the options installed on your instrument.
  • Page 26 Getting Acquainted With Your Instrument Control element or group Usage procedures Preset button Using presets (See page 21.) Input Selection buttons Selecting signal inputs (See page 16.) Line Select button Setting line select mode (See page 24.) EXT REF button Selecting signal inputs (See page 16.) Freeze button Freezing the display (See page 22.)

  • Page 27: Rear-Panel Connectors

    Getting Acquainted With Your Instrument Rear-Panel Connectors The following figure shows the rear panel. Power Requirements When Using an AC Converter A single-phase power source with one current-carrying conductor at or near earth-ground (the neutral conductor). The power source frequency must be 50 or 60 Hz, and an operating voltage range must be from 100 to 240 VAC, continuous.
  • Page 28 Getting Acquainted With Your Instrument Video Input Connectors All SDI inputs are passive inputs compensated for 75 Ω and require termination. 1. Ref Loop. A synchronization input. The input signal can be analog black burst, analog composite video, or analog tri-level for HD. Requires 75 Ω termination.
  • Page 29 Getting Acquainted With Your Instrument Ground Closure Interface Connector Pin Assignment The ground closure interface (GCI) connector uses ground closures for remote control and indicating to external equipment when alarms have occurred. The input of LTC is through the GCI connector. The GCI connector is a 15-pin D-type connector with socket contacts.

  • Page 30: Selecting A Display

    WFM - display of video waveform PICT - display of the picture generated by the video signal GAMUT - display selectable for three proprietary Tektronix views for checking the gamut of an SDI signal VECTOR - display of Vector plots of color signals...

  • Page 31: Setting Display Parameters

    Getting Acquainted With Your Instrument Setting Display Parameters You can set up the display parameters using the pop-up menus. In general, they control only settings specific to the active display type. For example, the pop-up menu for the Waveform display enables you to set the Display Mode. The pop-up menu will appear when selected (see the procedure that follows), unless it is not appropriate for the current instrument setting (for example, trying to display the Gamut menu when viewing a composite input signal).

  • Page 32: Selecting Signal Inputs

    SDI A and SDI B inputs on the rear panel. HD (WFM5000 series): The instrument automatically detects whether input is HD or SD. SD (WFM4000 series): Connect SD signal only. 2. Press the Input button corresponding to the input that you want (SDI Input A shown).
  • Page 33 Getting Acquainted With Your Instrument 3. Press the down arrow key to highlight Tile Config., and then press the right arrow key to select Tile 1. Only a waveform (WFM button) display can be viewed in this tile. NOTE. The Tile Config. menu option is only available when 4-Tile mode is selected.

  • Page 34: Setting Gain, Sweep, And Magnification

    Getting Acquainted With Your Instrument Navigating between tiles of the same display type. If the same measurement display is shown in two separate tiles, pressing the releated measurement button will activate first one and then the other tile. For example, if a Picture display is shown in tile 3 and tile 4, pressing the PICT button will alternately make tile 3 and then tile 4 active.
  • Page 35 Getting Acquainted With Your Instrument To Set Sweep 1. Press the WFM button. The default display style is Parade. 2. Press and hold the Sweep button to display the sweep settings. 3. Select the setting (1 Line or 1 Field) of your choice.

  • Page 36: Using Waveform/Vector Display Overlay

    Getting Acquainted With Your Instrument Using Waveform/Vector Display Overlay TandemVu® is a patented display that allows you to overlay the Waveform and Vector or Waveform and Lightning displays, plus Picture Thumbnail, in a single, full-tile display. You can then view waveform and vector displays, or waveform and Lightning displays, at the same time.

  • Page 37: Using Presets

    Getting Acquainted With Your Instrument Using Presets Presets let you save up to eight custom setups for later recall. You can also recall a factory predefined setup. To Recall an Existing Preset 1. Press the PRESET button briefly and the display buttons on the bottom of the front panel will light up and named presets will appear at the bottom of the display...

  • Page 38: Freezing The Display

    Getting Acquainted With Your Instrument To Save a Setup to a Preset 1. Set up the instrument according to your requirements. 2. From the Preset menu, select Save Preset and select the name to which you want to map the new preset. This name corresponds to one of the six numbered preset buttons.
  • Page 39 Getting Acquainted With Your Instrument To Delete the Freeze Display 1. Select the frozen display that you want to delete. 2. Press and hold the FREEZE button to display the pop-up menu. By default, the Delete Image (Clear) will be selected. 3.

  • Page 40: Setting Line Select Mode

    Getting Acquainted With Your Instrument Setting Line Select Mode To Toggle Line Select Mode 1. Select the measurement display for which you want to set the Line Select mode. 2. Press the LINE SEL button to toggle Line Select mode On or Off. When On, it displays the line information.

  • Page 41: Configuring Your Instrument

    Getting Acquainted With Your Instrument Configuring Your Instrument The Configuration menu is used to change the instrument settings that are changed occasionally such as printer settings. To change a setting, you must first highlight it. The following procedures help you to navigate through the configuration menu. To Traverse the Menu Panes 1.

  • Page 42: Using Online Help

    Getting Acquainted With Your Instrument Using Online Help The online help is both a quick and an exclusive reference for instrument operation details. The online help is: Context-sensitive. The topic displayed depends on what is displayed when the online help is selected or what control is operated after help is selected.
  • Page 43 Getting Acquainted With Your Instrument To Follow a Link Within a Help Topic 1. Press the right-arrow key to move selection to the Topic pane. 2. Highlight a link using the GENERAL knob or the up/down arrow key. 3. Press SEL to jump to the linked-to topic. 4.

  • Page 44: Adjusting Headphone Volume And Source

    Getting Acquainted With Your Instrument Adjusting Headphone Volume and Source When an audio tile is active, the headphone volume can be adjusted using the Horizontal knob. To adjust the audio source, perform the following procedure. NOTE. The headphone icon appears at the bottom of the Audio display. WARNING.

  • Page 45: Checking Chroma/Luma Delay (Lightning Display)

    Checking Chroma/Luma Delay (Lightning Display) Checking Chroma/Luma Delay (Lightning Display) The Lightning display can be used for interchannel timing measurements. When the color-difference signal is not coincident with luma, the transitions between the color dots will deviate from the center mark of a delay scale. The amount of deviation represents the relative signal delay between luma and the color-difference signal.
  • Page 46 Checking Chroma/Luma Delay (Lightning Display) 3. Use the arrow keys and the SEL button to set the menu in the steps that follow. 4. Set the Display Type to Lightning. 5. Set BAR TARGETS to match your input signal. 6. Select Center Waveform, and press SEL if you want to center the waveform.
  • Page 47 Checking Chroma/Luma Delay (Lightning Display) The + tic marks on the graticule indicate the following timing errors: 1080p 50, 59.94, 60 (dual link Tic mark SD timing error (ns) HD timing error (ns) formats) timing error (ns) 0 marks 13.5 6.75 13.5 Luma sample...

  • Page 48: Checking Gamut

    Checking Gamut Checking Gamut Signals that are legal and valid in one signal representation may not be legal in another representation. Specifically, signals which are legal in the Digital YCbCr representation may not be legal if transcoded to RGB or encoded to NTSC/PAL. Any signal that fails this test is considered outofgamut.

  • Page 49: Checking Rgb Gamut

    Checking Gamut 4. Use the arrow keys and SEL button to set the menu to one of these three gamut displays: Diamond. Use to detect, isolate, and correct RGB component gamut errors. Split Diamond. Use to reveal hard-to-find black gamut errors. Arrowhead.
  • Page 50 Checking Gamut 1. Perform the Setup for Gamut Checks procedure. Select Diamond in step 4. (See page 32.) 2. Compare the signal to the display to determine out-of-gamut components, and note the following: The intensity of a vector indicates its duration.

  • Page 51: Checking Composite Gamut

    Checking Gamut Checking Composite Gamut The Arrowhead gamut display plots luminance (Y) against chrominance (C) to check if the composite signal adheres to standard gamut. NTSC and PAL Arrowhead displays (75% Color bars) show the values of the graticule lines. The arrowhead shape of the graticule results from overlaying the standard limits for luminance and luminance-plus-peak chrominance.

  • Page 52: Checking Luma Gamut

    Checking Gamut Usage Notes To adjust the IRE level limits, do the procedure Adjusting Gamut Limits. (See page 38, Adjusting Gamut Limits.) To automate this check, do the procedure Automating Gamut Checks. (See page 37, Automating Gamut Checks.) Checking Luma Gamut Luma limit thresholds can be configured for identifying luma exceeding threshold limits.

  • Page 53: Automating Gamut Checks

    Checking Gamut Automating Gamut Checks You can use alarms to automatically monitor for out-of-gamut conditions: 1. Press the CONFIG button to display the Configuration menu. 2. Use the arrow keys and SEL button to select Alarms and then Video Content. 3.

  • Page 54: Adjusting Gamut Limits

    Checking Gamut 5. Check that Enable Alarms is set to On in the Alarms menu before leaving the Alarms menu. NOTE. For information on Alarms, press the HELP button while Alarms is selected in the configuration menu. 6. Press CONFIG to exit the menu. Adjusting Gamut Limits 1.

  • Page 55: Timing Display

    Timing Display Timing Display The Timing display is a Tektronix proprietary display that simplifies measuring the timing difference between two signals as the timing is corrected. You can access this display from the STATUS button. Using the Timing display enables you to easily compare and correct the timing between two signals.
  • Page 56 Timing Display Timing Pop-up Menu Once you have selected Timing Measure from the STATUS button pop-up menu, pop-up menu enables you to save a timing setting for comparison with another signal and specify the zero point of the timing display. To save the timing of the current input as an offset to the timing display, use the Save Offset menu entry.
  • Page 57 Timing Display Such cases include timing an NTSC input (multiplier of 1) or a 525 SDI input whose frame time is 33.36 ms (multiplier of 2), against an NTSC reference, which has a frame time of 66.73 ms. Non-integer multiples of reference rates. If you time input rates that are not integer multiples of the reference rates, the instrument cannot measure the timing deterministically, so it displays the relationships as several circles.
  • Page 58 Timing Display Supported Video Formats The following table shows which video formats are supported. If a specific format is only suported by a specific instrument model, it is referenced in a footnote. Table 2: Supported video formats External reference inputs NTSC 720p 1080p/sF...
  • Page 59 Timing Display Table 2: Supported video formats (cont.) External reference inputs NTSC 720p 1080p/sF 1080i Supported formats 59.94 Hz 50 Hz 50 Hz 59.94 Hz 60 Hz 23.98 Hz 24 Hz 50 Hz 59.94 Hz 60 Hz 1080sf, 25 Hz 1080sf, 29.97 Hz 1080sf, 30 Hz...

  • Page 60: Monitoring Audio

    Monitoring Audio Monitoring Audio Your instrument provides several methods for monitoring audio signals. It can measure levels, phase, and phase correlation. You can specify meter ballistics and scales, set test and peak program indicator levels, and specify how phase is displayed. Configuring Audio Inputs Audio inputs are initially set to factory defaults.

  • Page 61: Selecting Audio Input

    Monitoring Audio Selecting Audio Input Select the audio input to be monitored from the front-panel AUDIO button pop-up menu. 1. Press and hold the Audio button to open the Audio display and popup the Audio menu. 2. Use the Arrow Keys and SEL button to make selections in the steps that follow.

  • Page 62: Checking Audio Level And Phase

    Monitoring Audio Checking Audio Level and Phase Level meters are vertical bar graphs on which the height of the bar indicates the amplitude of the audio program in the corresponding input channel. You can change the input and turn on and off the Phase display from the Audio pop-up menu.
  • Page 63 Monitoring Audio 6. Check for Phase correlation of the signals, noting the following: Phase correlation meters are located under the appropriate bars and one is duplicated under the phase display. For correlated signals, the indicator will be green and will move to the right.

  • Page 64: Monitoring Safe Area Graticule

    Monitoring Safe Area Graticule Monitoring Safe Area Graticule Your instrument can also display Safe Action and Safe Title graticules, allowing you to monitor incorrect placements of graphics, logos, and other branding elements. This will help you ensure that those items do not obscure text or essential action.
  • Page 65 Monitoring Safe Area Graticule 5. If you want to set the Height, Width, and Offsets of the title and action areas for Custom Safe Graticules 1 and 2, first select the title or action to change. 6. Select the parameter. 7.
  • Page 66 Monitoring Safe Area Graticule Usage Notes The Safe Action Area denotes the maximum image area within which all significant action should be contained; the Safe Title Area denotes the maximum image area within which all significant titles should be contained. Safe Area Graticules can globally be configured to comply to accepted standards in the Configuration menu.

  • Page 67: Using Alarms

    Using Alarms Using Alarms Alarms can be configured so that your instrument automatically monitors parameters and reports when those parameter limits are exceeded. The procedures that follow describe how to configure response types for individual alarms, how to enable them, and how to monitor them. Configuring Alarms Alarms may need to be configured in the Configuration menu.
  • Page 68 Using Alarms 6. For each alarm listed in the table, press the SEL button to enable (when enabled, there is an X in the box) or disable (when disabled, the box is blank) it. (See page 53, Possible Alarm Responses.) 7.
  • Page 69 Using Alarms Possible Alarm Responses For each available alarm, you can select up to four of the responses listed. If you do not select a notification method for an error, you will not be notified when the error occurs. Screen Text/Icon. An icon appears on the display. This notification method is disabled when the Configuration menu is open.
  • Page 70 Using Alarms 6. For each of the AES and Embedded inputs, select Bar to Input Map and press the SEL button to display the Bar to Input map menu. 7. Navigate to each box for each alarm that you want to allow. Press the SEL button to enable (when enabled, there is an X in the box) or disable (when disabled, the box is blank) it for each channel...

  • Page 71: Monitoring Alarms

    Using Alarms Monitoring Alarms After defining and enabling alarms, you can quickly check if any error condition exists by looking for the notification you defined (text, icon, or logging). (See page 8, Status Bar Icons.) Selecting the Ground Closure output response can help you notice alarms that you may miss if the notification is text or icon only.

  • Page 72: Upgrading Instrument Software

    USB memory device by performing the following procedure: 1. Using an Ethernet connection on a PC, navigate to the Tektronix Web site at http://www.tektronix.com. 2. Find the Downloads heading located on the right-hand side of the Web page.
  • Page 73 Upgrading Instrument Software Download the firmware onto your instrument from the USB memory device by performing the following procedure: 7. Insert the USB memory device containing the WfmUpgrd folder with the firmware.pkg file into the USB drive of the instrument. 8.
  • Page 74 Upgrading Instrument Software 6. On the instrument, press CONFIG > Utilities > System Upgrade > Upgrade Options > Network Upgrade and then press the SEL button. This displays the System Software Upgrade window. 7. To continue with the upgrade, press the right-arrow key to select Continue and press SEL.
  • Page 75 Upgrading Instrument Software Upgrading Multiple Instruments You can upgrade several instruments in one session, one at a time, if you have determined their addresses. To upgrade, use the Windows Command Prompt. Enter the following line in a Command Prompt window (substituting the addresses of your machines): transfer.exe 192.181.115.1 192.181.115.2 192.181.115.3 Separate the addresses with a space.
  • Page 76 Upgrading Instrument Software WFM4000 and WFM5000 Waveform Monitors User Manual...

  • Page 77: Index

    Index Index Symbols and Numbers Documents included, 1 4-Tile Basic operation, 6 using thumbnail display, 6 Battery 4-tile mode, 16 optional, 3 safety, 3 Errors status indicators, 7 Ethernet connector, 13 Accessories Calibration documents, 1 optional, 1 service options, viii power cords, 2 Chroma/Luma delay, 29 Factory defaults...
  • Page 78 Index How to LTC, 13 Luma/Chroma delay, 29 configure and monitor Rear-panel audio, 44 Layout and description, 11 configure and use alarms, 51 Recall configure your instrument, 25 settings (presets), 21 Magnification, 19 control the display, 6 Repair Manuals determine status, 7 service options, viii conventions used in, ix find more information, ix...
  • Page 79 Index Timing display saving a display to, 23 description, 39 Waveform display overlay, 20 horizontal offset, 39 Using alarms supported video formats, 41 task description, 51 Timing measurement relative to, 40 save offset, 40 phase style, 47, 50 Vector simple compared to display, 29 complex, 40 Vector display overlay, 20...
