Fluke DTX-CLT CertiFiber User Manual page 37

A

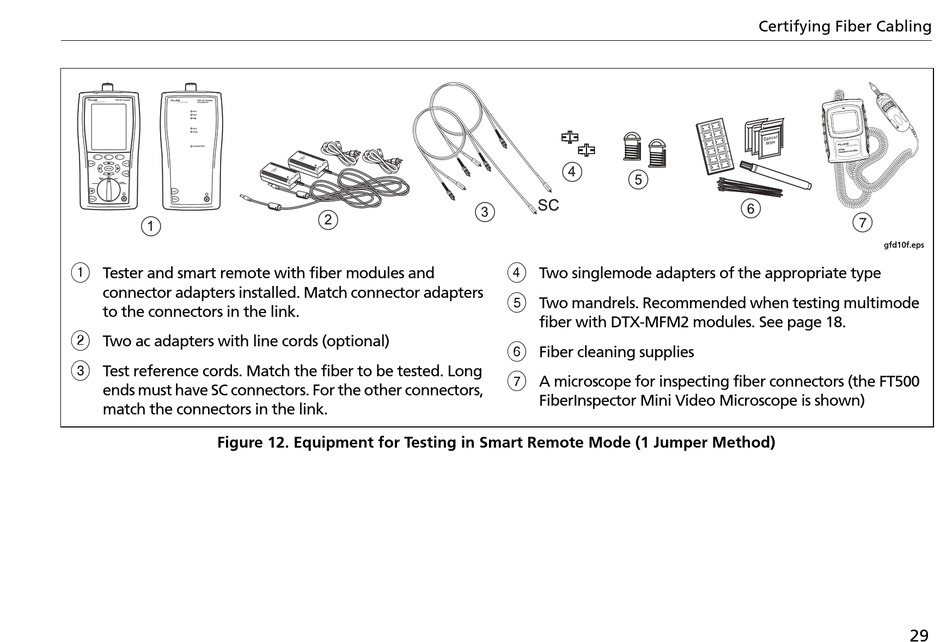

Tester and smart remote with fiber modules and
connector adapters installed. Match connector adapters
to the connectors in the link.
B
Two ac adapters with line cords (optional)
C
Test reference cords. Match the fiber to be tested. Long
ends must have SC connectors. For the other connectors,
match the connectors in the link.
Figure 12. Equipment for Testing in Smart Remote Mode (1 Jumper Method)
D
Two singlemode adapters of the appropriate type
E
Two mandrels. Recommended when testing multimode
fiber with DTX-MFM2 modules. See page 18.
F
Fiber cleaning supplies
G
A microscope for inspecting fiber connectors (the FT500
FiberInspector Mini Video Microscope is shown)
