The DTX-1500 CableAnalyzer
troubleshoot, and document copper cabling installations.
Accessing the Product Manuals
This guide provides basic information to help you get started using the tester. For more
detailed information, see the latest versions of the DTX-1500 CableAnalyzer Users Manual
and the DTX-1500 Technical Reference Handbook provided on the Fluke Networks
website. Go to www.flukenetworks.com, click SUPPORT >
CableAnalyzer Series.
Safety Information
Warning or Caution: Risk of damage or destruction to equipment or
software. See explanations in the manuals.
Warning: Risk of fire, electric shock, or personal injury.
This key turns the Product on and off.
To prevent possible fire, electric shock, or personal injury:
Read all safety information before you use the Product.
Carefully read all instructions.
Do not connect the tester to telephony inputs, systems, or equipment,
including ISDN inputs. Doing so is a misapplication of this product, which
could result in damage to the tester and create a potential shock hazard
to the user.
*4615636*
PN 4615636 February 2015, Rev. 1 6/2015
©2015 Fluke Corporation
All product names are trademarks of their respective companies.
is a rugged, hand-held instrument used to certify,
TM
Warning
DTX-1500
Getting Started Guide
Manuals,
CableAnalyzer
then select DTX
™
Advertisement
Table of Contents
Related Manuals for Fluke CableAnalyzer DTX-1500
Summary of Contents for Fluke CableAnalyzer DTX-1500

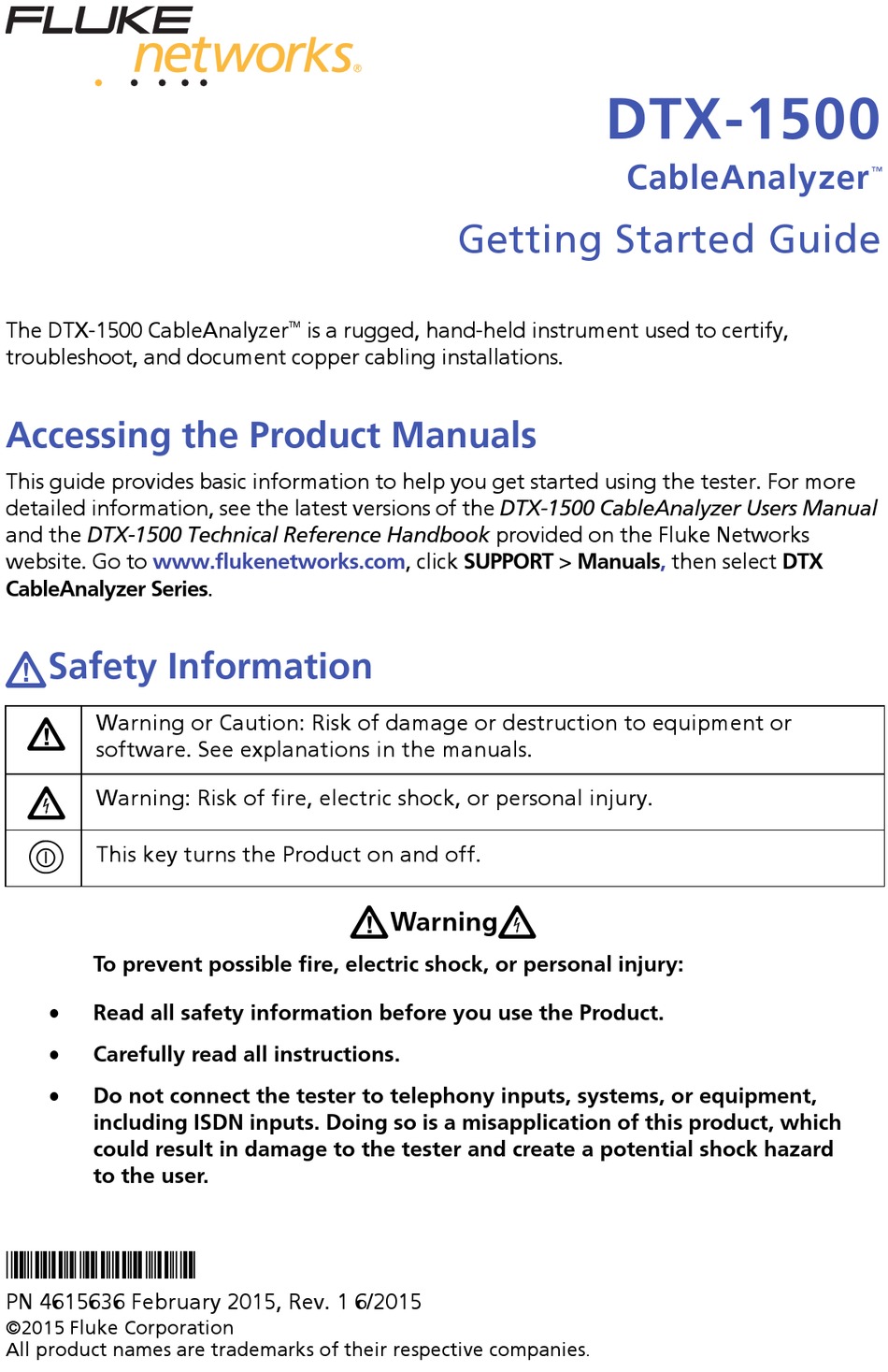

- Page 1 This guide provides basic information to help you get started using the tester. For more detailed information, see the latest versions of the DTX-1500 CableAnalyzer Users Manual and the DTX-1500 Technical Reference Handbook provided on the Fluke Networks website. Go to www.flukenetworks.com, click SUPPORT >...
- Page 2 Do not open the case. You cannot repair or replace parts in the case. Do not modify the Product. Use only replacement parts that are approved by Fluke Networks. Do not touch voltages > 30 V AC rms, 42 V AC peak, or 60 V DC. ...
-
Page 3: Powering The Tester
For Products with rechargeable batteries, use only AC adapters approved by Fluke Networks for use with the Product to supply power to the Product and charge the battery. Caution To prevent damage to the Product or cables under test and to prevent data loss, read all safety information given in all documentation supplied with the Product. -
Page 4: Preparing To Save Tests
To set the reference, do the following: Note Turn on the tester and smart remote and let them sit for 1 minute before setting the reference. Set the reference only after the testers have reached an ambient temperature between 10 C and 40 C (50 ... -
Page 5: Autotest On Twisted Pair Cabling
Autotest on Twisted Pair Cabling Attach adapters appropriate for the job to the tester and the smart remote. Turn the rotary switch to SETUP, then select Twisted Pair. Set the following on the Twisted Pair tab: Cable Type: Select a list of cable types; then select the cable type to be tested. ... - Page 6 Horizontal cabling Optional consolidation point Patch panel Wall outlet Start permanent permanent link link PASS TEST FAIL TALK TONE Smart remote with Tester with optional LOW BATTERY optional permanent permanent link adapter TEST EXIT ENTER SAVE AUTO TEST link adapter SINGLE TEST SETUP...
-
Page 7: Contacting Fluke Networks
Registration Registering your product with Fluke Networks gives you access to valuable information on product updates, troubleshooting tips, and other support services. To register, fill out the online registration form on the Fluke Networks website at www.flukenetworks.com/registration. Contacting Fluke Networks www.flukenetworks.com... - Page 8 LIMITED WARRANTY AND LIMITATION OF LIABILITY Fluke Networks mainframe products will be free from defects in material and workmanship for one year from the date of purchase, unless stated otherwise herein. Parts, accessories, product repairs and services are warranted for 90 days, unless otherwise stated.
