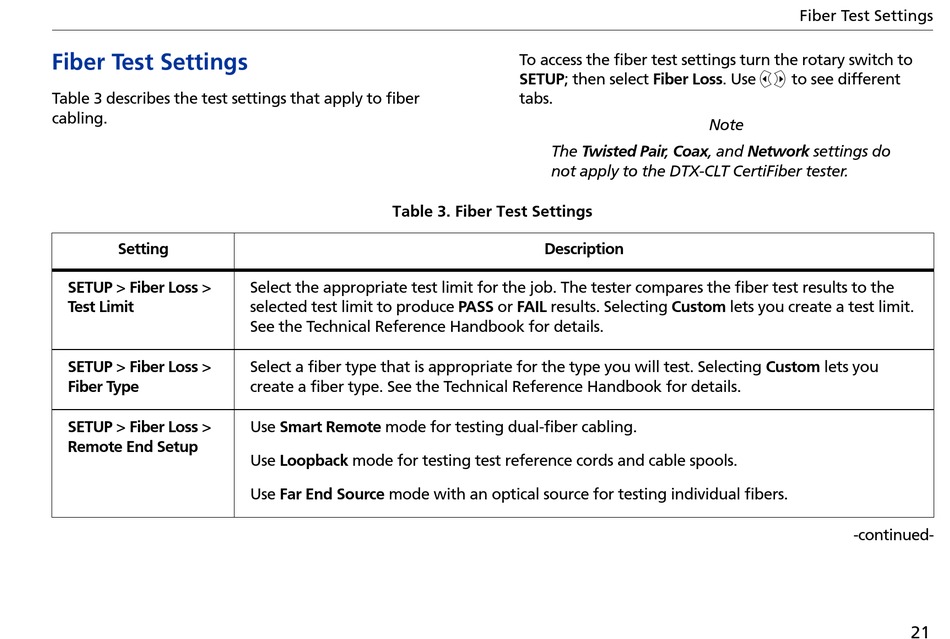

Fiber Test Settings

Table 3 describes the test settings that apply to fiber
cabling.
Setting
SETUP > Fiber Loss >
Test Limit
SETUP > Fiber Loss >
Fiber Type
SETUP > Fiber Loss >
Remote End Setup
Table 3. Fiber Test Settings
Select the appropriate test limit for the job. The tester compares the fiber test results to the
selected test limit to produce PASS or FAIL results. Selecting Custom lets you create a test limit.
See the Technical Reference Handbook for details.
Select a fiber type that is appropriate for the type you will test. Selecting Custom lets you
create a fiber type. See the Technical Reference Handbook for details.
Use Smart Remote mode for testing dual-fiber cabling.
Use Loopback mode for testing test reference cords and cable spools.
Use Far End Source mode with an optical source for testing individual fibers.
To access the fiber test settings turn the rotary switch to
SETUP; then select Fiber Loss. Use
tabs.
The Twisted Pair, Coax, and Network settings do
not apply to the DTX-CLT CertiFiber tester.
Description
Fiber Test Settings
BC
to see different
Note
-continued-
