Fluke DTX-CLT CertiFiber User Manual page 17

A
B
C
D
E
F

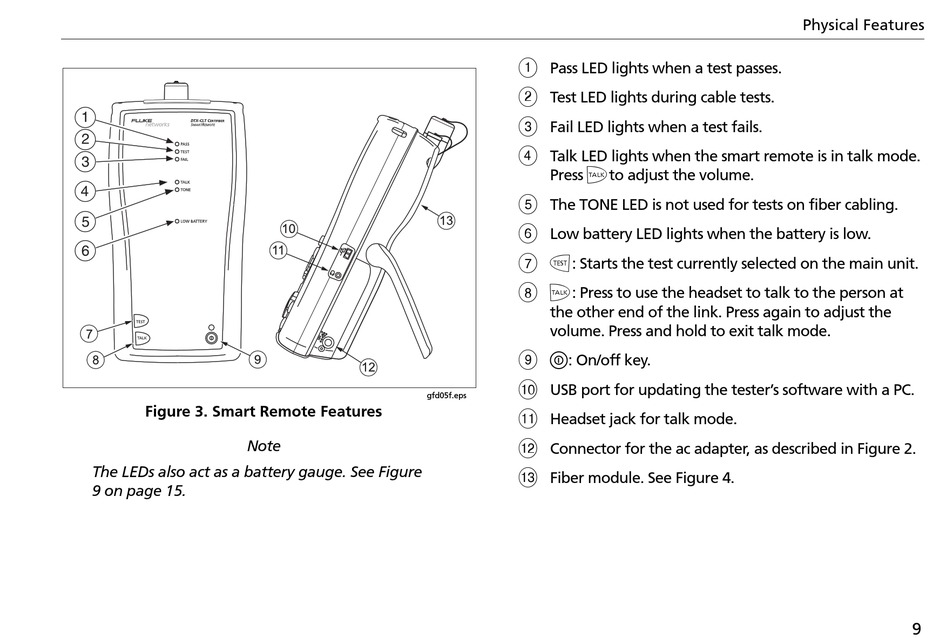

Figure 3. Smart Remote Features
Note
The LEDs also act as a battery gauge. See Figure
9 on page 15.
A
Pass LED lights when a test passes.
B
Test LED lights during cable tests.
C
Fail LED lights when a test fails.
D
Talk LED lights when the smart remote is in talk mode.
O
Press
E
The TONE LED is not used for tests on fiber cabling.
F
Low battery LED lights when the battery is low.
G
P
: Starts the test currently selected on the main unit.
H
O
: Press to use the headset to talk to the person at
the other end of the link. Press again to adjust the
volume. Press and hold to exit talk mode.
I
M
: On/off key.
J
USB port for updating the tester's software with a PC.
gfd05f.eps
K
Headset jack for talk mode.
L
Connector for the ac adapter, as described in Figure 2.
M
Fiber module. See Figure 4.
to adjust the volume.
Physical Features
9
