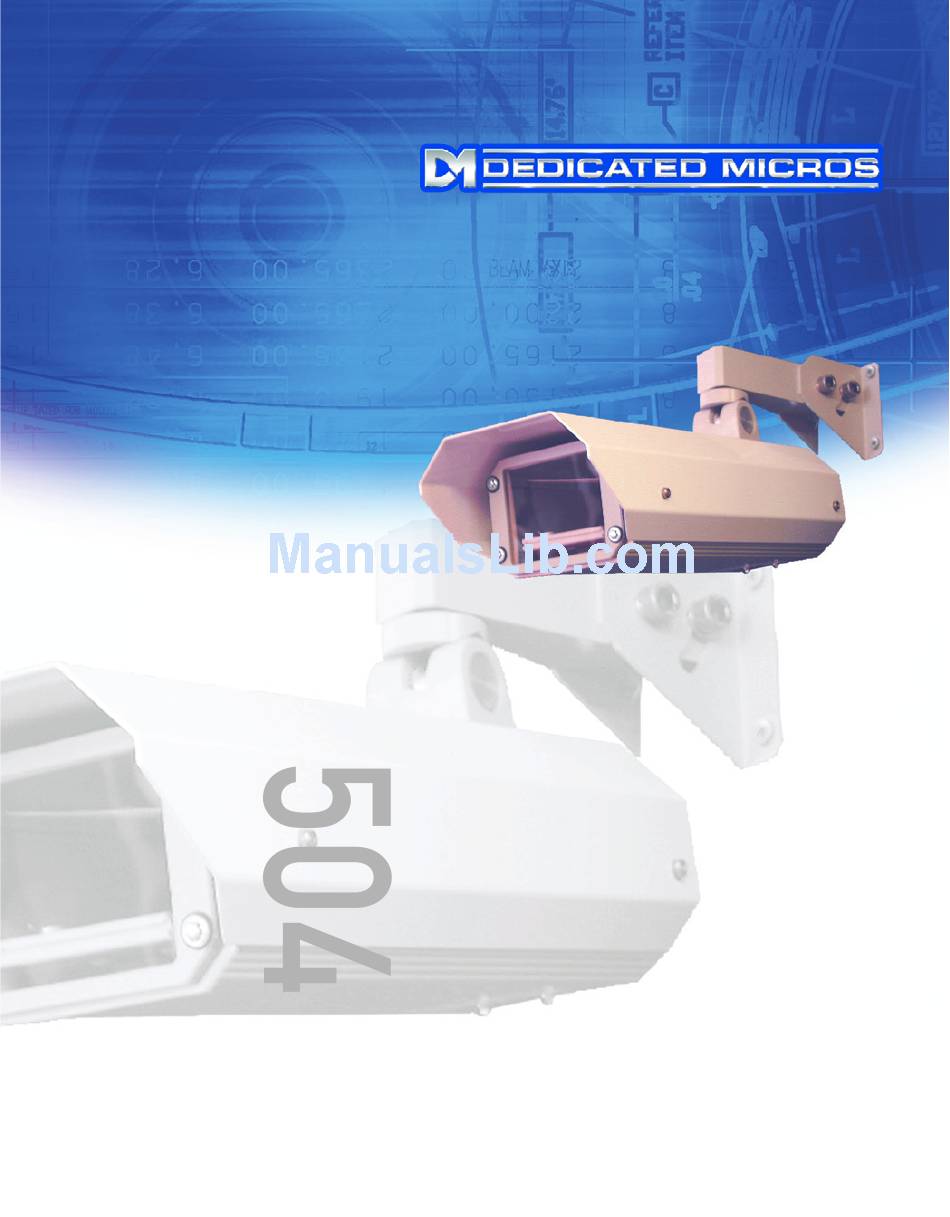

- Page 1 www.dedicatedmicros.com INSTALLATION MANUAL MANUEL D’INSTALLATION INSTALLATIONSHANDBUCH MANUAL DE INSTALACIÓN MANUALE D'INSTALLAZIONE...
- Page 2 T.B.1 = 3 Way terminal block. N E L P.C.B Earth T.B.1 Chassis Earth Specification: Material: Aluminium alloy extrusion Heater Voltage: 240V, 110V, 24V, 12V Finish: Powder coated and stoved Heater Power: 12.25W Weight: 5kg IP Rating: 65 504 Installation Manual Page. 1...
- Page 3 1. Release socket screw (A) to adjust tilt and pan positioning. Position as required for camera coverage & tighten to secure. 2. Release socket screw (B) and twist bracket mount 90º to give option of either ceiling or wall mounting configurations. 504 Installation Manual Page. 2...
-
Page 4: Camera Mounting

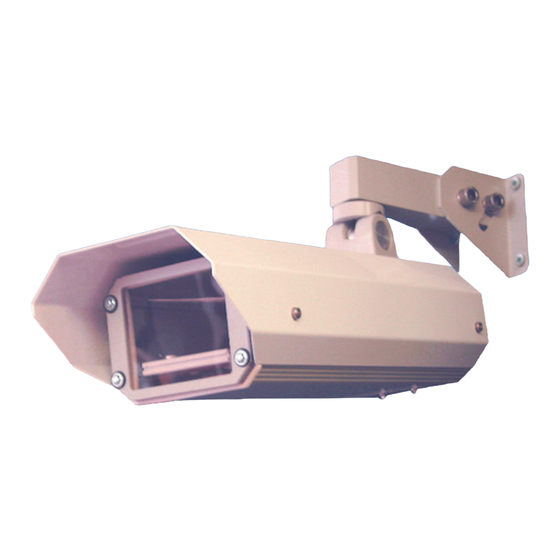

3. Camera Mounting Fig.4 shows the two camera mounting options available with the 504 environmental camera housing. Suitable for internal or external use. The unit is constructed from a hollow aluminium extrusion with a steel end plate and scratch resistant polycarbonate window. - Page 5 Joseph Chantraineplantsoen 1, 3070 Kortenberg, Belgique Tél. : +32 2751 3480, Fax : +32 2751 3481 e-mail : dmbenelux@dmicros.com Dedicated Micros Ltd. Slovenija Delavska cesta 26, 4208 Sencur-Slovenija Tel: +386 (4) 279 18 90, Fax: +386 (4) 279 18 91 e-mail: dmslovenia@dmicros.com...
