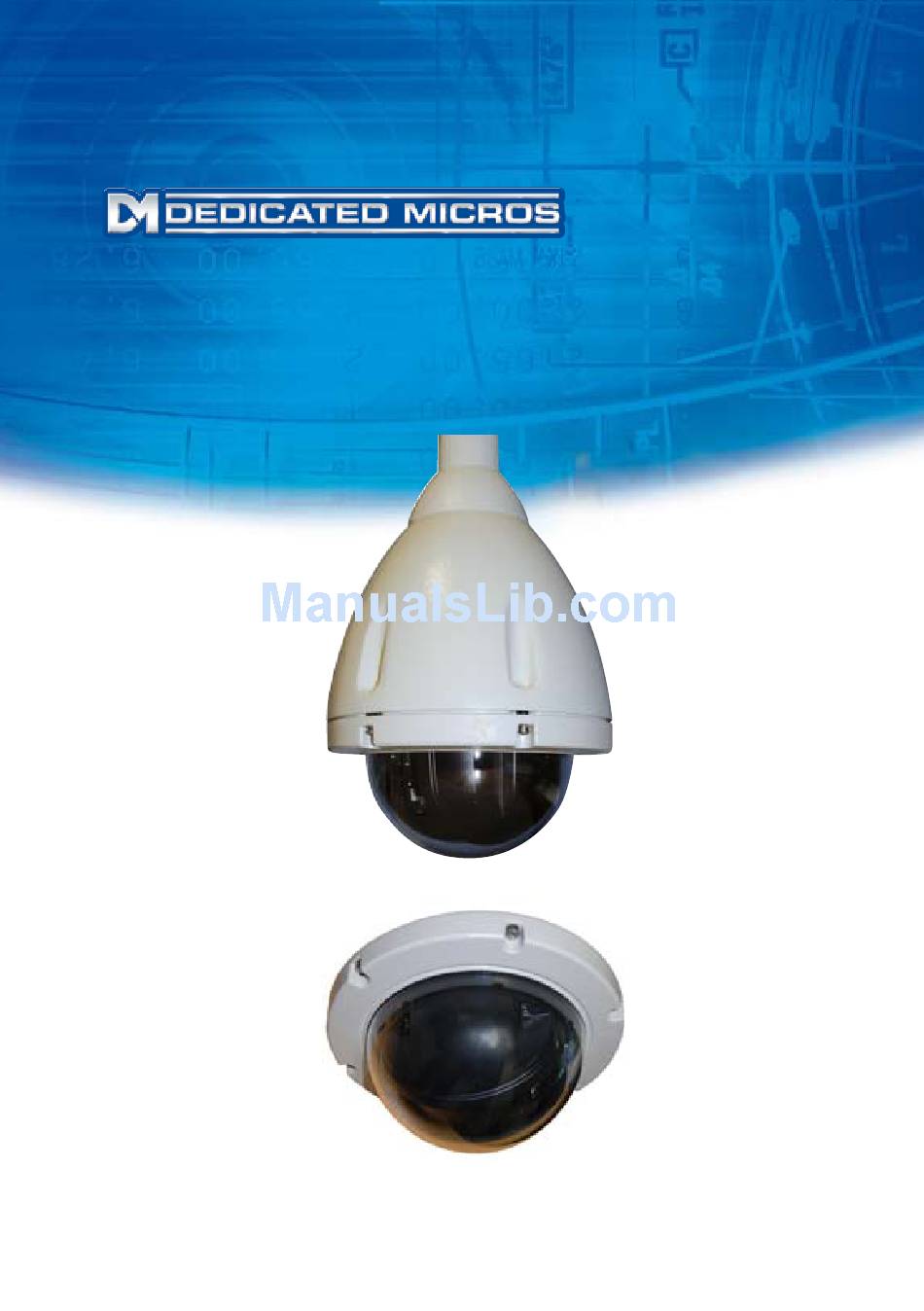

- Page 1 Vandal PTZ Speed Dome Camera Installation Manual DM/CAM/SDH36/N www.dedicatedmicrosus.com...
-
Page 2: Table Of Contents
Control Configuration ........15 Troubleshooting ..........19 Notes ..............21 Whilst every attempt is made to ensure these manuals are accurate and current, Dedicated Micros reserve the right to alter or modify the specification of the machine described herein without prejudice. Dedicated Micros ©2008... -
Page 3: Introduction
Introduction Congratulations on choosing a Dedicated Micros Vandal PTZ speed dome camera. This manual will provide all the information necessary to install the Dedicated Micros SDH36. USA Regulatory Notice This product is compliant with UL2044, safety of Commercial CCTV Products and UL 50. - Page 4 • EN 60825-1 Safety standard for LED’s and Lasers. Further details about these applicable standards can be obtained from Dedicated Micros LTD. 1200 Daresbury Park, Daresbury, Cheshire, WA44HS. A “Declaration of Conformity” with all relevant European Union Directives has been made, is on file and is available from the Dedicated Micros address above.
-
Page 5: Components Supplied
Before installing the dome, please remove the components from the packaging and verify that all items listed below have been supplied: 1 x Dedicated Micros SDH36 Dome enclosure (with safety bond) 1 x Installation manual 1 x Operation and Programming manual Note: Any PSU used must be a UL 2044 approved Class 2 current limited 24VAC Power Supply. -
Page 6: Mounting Configurations
Tile mount (order code DM/CAM/SDACT/N) for suspended ceilings. Snowdrop mount bracket (order code DM/CAM/SDASM/N) for mounting at the top of a pole, column or roof parapet. All mounting versions are suitable for both weatherproof (IP66 BS EN 60529/NEMA Type 4X) and indoor units. Dedicated Micros ©2008... -
Page 7: Safety Bond
Attach safety bond to a suitable secure position in the ceiling void. Note: Always support dome with bond prior to mating connector (C). Weight of dome should be supported by bond ensuring no stress is placed on centre connector (C) at any time. Dedicated Micros ©2008... - Page 8 Insert 4 x ¼”(M6) plugs (item 1) into the holes and mount the Node Casting (item 2) using the 4 wall fixing screws (item 3) provided. Connect the cable from the network to the three way and four way connector blocks as detailed in the ‘Electrical Connections’ section of this manual. Dedicated Micros ©2008...
- Page 9 Using supplied ¼”(M6) fixings (item 4), fasten the Mounting Bracket to the Node Casting. Fix the dome to the end of the Mounting Bracket, refer to ‘Dome Mounting’. Note: Bracket base casting can be orientated to position the entry hole to either side or at the top. Dedicated Micros ©2008...
- Page 10 Use suitable ¼”(M6) fixings to fasten the Node Casting to the pole. Note: Dedicated Micros does not supply these fittings, due to the variation in materials and thickness found on site. Parapet installation only Drill 4 x ”...
- Page 11 Use suitable safety equipment to access the top of the pole to complete the final stage of installation. Fix the dome to the end of the Mounting Bracket, refer to ‘Dome Mounting’ in the DM SDH36 Dome Installation manual. Mounting Hole Configuration ” 2” ” (NOT TO SCALE) Dedicated Micros ©2008...
-
Page 12: Tile Mounting
Using suitable ¼” (M6) fixings, fasten the Dome/Support Ring assembly to the Split Clamp Ring (items 1 & 7). Note: Dedicated Micros does not supply these fittings, due to the variation in ceiling materials and thickness found on site. Dedicated Micros ©2008... -
Page 13: Dome Mounting
Lift dome to bracket flange ensuring head of screws (previously fitted ¼” x 1” Caphead Screw) pass through keyhole slots. Twist to locate. Tighten 4 top mounting fixings with Hexagonal key supplied to secure, finally secure plastic cover to metal pins on bracket flange. Dedicated Micros ©2008... -
Page 14: Electrical Connections
The dome connects via an IP66 Amphenol connector with a composite cable flying lead comprising co-ax, power pair & RS485 pair. This lead is supplied installed in the dome bracket and terminates in the supplied wiring node. Dedicated Micros ©2008... -
Page 15: Control Configuration
The same address switches are used for both RS485 and up the coax control, Refer to the individual configuration chapters for more information. Note: When reassembling the dome, check the hemisphere sealing gasket is in place and that the hemisphere retaining screws are retightened to avoid water ingress. Dedicated Micros ©2008... -
Page 16: Switch Settings
Scan across the table to identify the values for the blue and yellow switches. For example, if the dome is to be used with a Dedicated Micros PTZ controller system with address ID#5 the switches should be set to ‘05’. i.e. the blue switch should be set to ‘0’ and the yellow switch set to ‘5’. - Page 17 For: Dedicated Micros, BBV & DM controllers All Dedicated Micros SDH36 domes are fitted with a termination switch, shown above. If a single dome is connected on the RS485 line, or if a star configuration is used, the termination switch should be switched to ‘IN’...
- Page 18 Up to 16 Preset positions may be set up using the controller programming facility when PTZ control is over coax. If more than 16 preset positions are required, the Dedicated Micros SDH36/N dome programming must be used via the dome’s on-screen menus. Alternatively RS485 PTZ control should be used if more than 16 presets are to be recalled directly form the controller keyboard.
-
Page 19: Troubleshooting
Select ‘Miscellaneous Services’ Select ‘Host Comms/Video Amp’. Adjust lift and gain settings. Dome spins continuously (DM controllers) Cause No joystick dead band recognized as joystick was off centre during powerup. Solution Reboot the controller with the joystick self centred. Dedicated Micros ©2008... - Page 20 Open the Technician menu (see Operation and Programming manual for details on accessing the menu). Select ‘Miscellaneous Services’ Select ‘NVM Services’. Select ‘Reload Factory defaults’. Note: This will delete all preset positions and tours from the dome memory. Dedicated Micros ©2008...
-
Page 21: Notes
Notes Dedicated Micros ©2008... - Page 22 Notes Notes Dedicated Micros ©2008...
- Page 23 Tile Mounting ............................... 12 To use the table; ............................16 Troubleshooting ............................19 Up-The-Coax PTZ control ........................... 16 Up the Coax Configuration .......................... 16 Up the Coax Switch Configuration....................... 16 USA Regulatory Notice ..........................3 Wall/Pendant Mounting ..........................8 Dedicated Micros ©2008...
- Page 24 Dedicated Micros Benelux 14434 Albemarle Point Place, Suite 100, Joseph Chantraineplantsoen 1, Chantilly, Virginia 20151 USA 3070 Kortenberg, Belgium Dedicated Micros Europe Dedicated Micros, Australia PTY. Neckarstrafle 15, 5/3 Packard Avenue, Castle Hill, 41836 Hückelhoven, Germany NSW 2154, Australia Dedicated Micros France...
