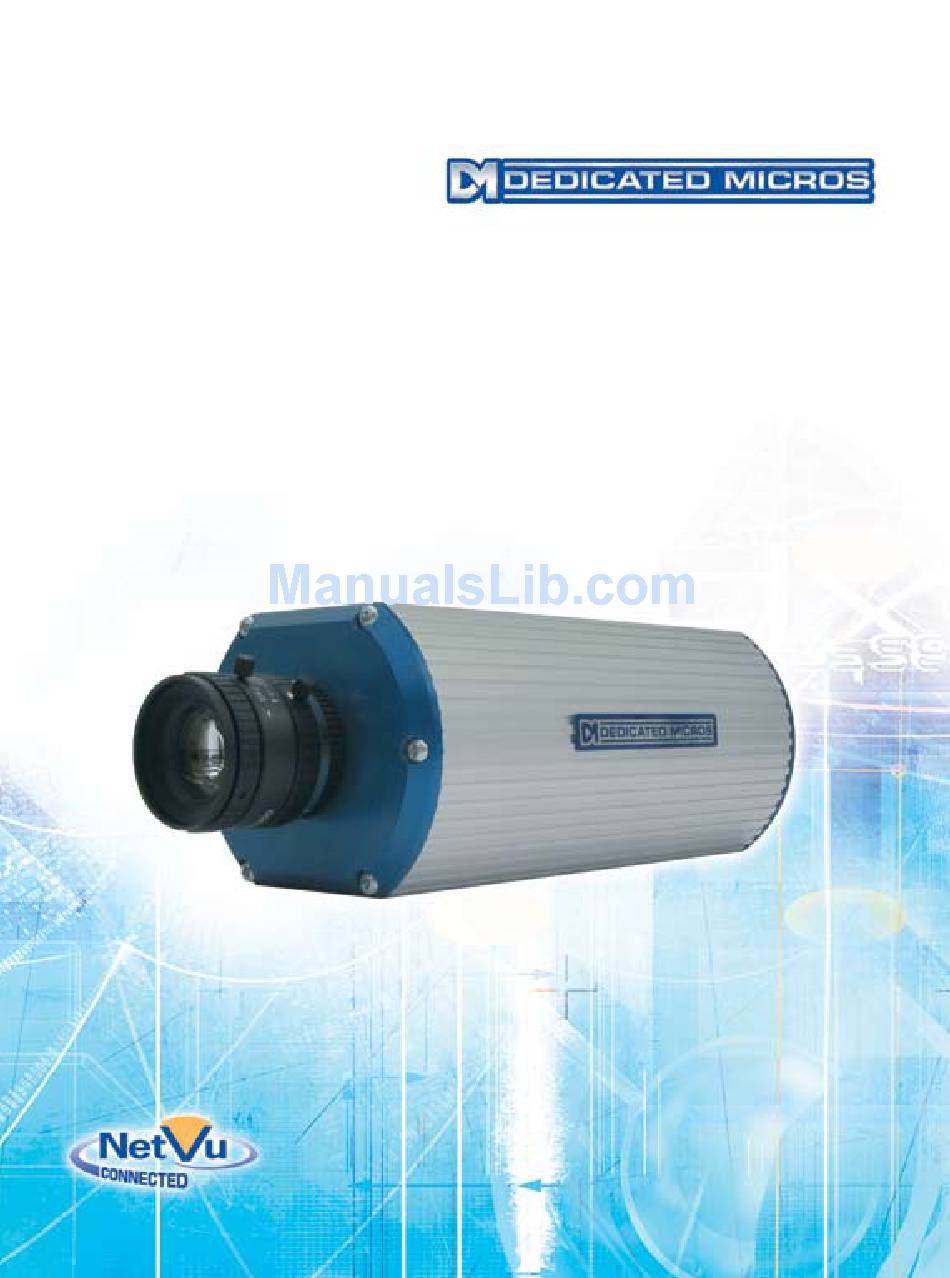

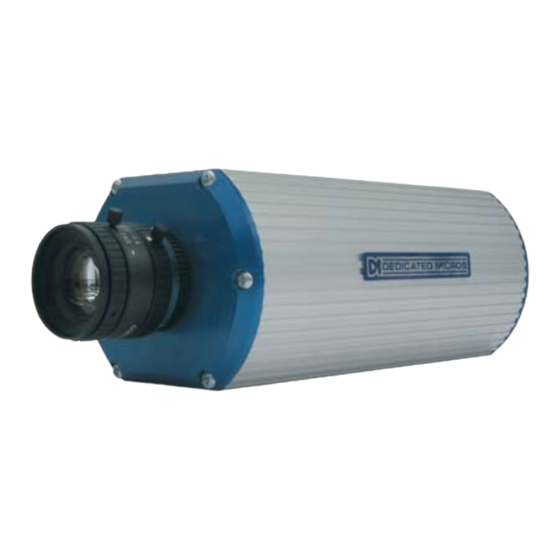

- Page 1 CamVu 2000 Camera User Guide...
-
Page 2: Table Of Contents
1.01 Contents Introduction .................3 Rear Connections ...............6 Network ..................11 General ..................12 Video ..................13 Audio ..................15 6.25 Serial ..................16 User Access ................17 Camera ..................18 6.25 Connections ................19 6.25 Connecting to the CamVu 2000 Camera ........20 Dedicated Micros ©2007... -
Page 3: Introduction
(via an external camera housing) to cover a wide field of view. Its web configuration pages allow the installer to adjust the cameras features over the network without the need to return to the site. The CamVu 2000 camera is the ideal choice for capturing high quality, high definition images Features •... -
Page 4: Components Supplied
“Declaration of Conformity” is held at Dedicated Micros LTD, 1200 Daresbury Park, Daresbury, Cheshire WA4 4HS WWW.dedicatedmicros.com Hereby, Dedicated Micros LTD, declares that this CamVu 2000 Camera is in compliance with the essential requirements and other relevant provisions of Directive 95/5/EC. -
Page 5: Important Safeguards
EN 60950 Safety of IT and similar equipment. • EN 55022 Class A. Radiated Emissions Standard, suitable for Commercial or Residential use Further details about these applicable standards can be obtained from Dedicated Micros Ltd., 1200 Daresbury Park, Daresbury, Cheshire WA4 4HS 1.01002 RF Interference warning This is a class A product. -
Page 6: Rear Connections
Rear Connections The CamVu 2000 features push fit connectors which house connections for 12VDC power and the relay output. There are also connections for an audio input (via 3.5mm stereo jack socket) and an RJ45 socket for connection to a suitable network point. Telemetry information is passed to the camera via the D type socket. - Page 7 5.13 Step Connecting Video The CamVu 2000 has a 75Ω BNC connector configurable for PAL or NTSC which can be used to focus the lens during installation. The video feed will be sent via the network connection. Note: This feature will be available after future development.
- Page 8 If the device utilises POE, this step would not be necessary. Connect the Network connector at this stage. The CamVu 2000 is supplied by a two way 3.81mm pitch screw terminal push fit connector, seperate to the alarm connector. Please note that there are two versions of this camera: For DM/CMVU2000A, power can be 12Vdc or 24Vac via screw terminal connector For DM/CMVU2000D power can be 12Vdc via screw terminal connector or POE via network connector.
-
Page 9: Configuring The Unit
IP address e.g. setip 192.168.1.100 setsub followed by the new subnet mask e.g. setsub 255.255.0.0 setgw followed by the new gateway address e.g. setgw 192.168.50.1 reset (to reset the camera so that the new IP address settings are adopted) 6.101 6.11 Dedicated Micros ©2007... - Page 10 Ths can be done by clicking on the webpage name in the links on the left-hand side of the page. Clicking cancel before the webpage is refeshed will cancel any changes that have been made on the webpage without saving them to the camera. Dedicated Micros ©2007...
-
Page 11: Network
This will be the name of the unit that is automatically allocated by the DHCP server Note: After saving the Network setting changes to the camera; click the Restart Camera button at the bottom of the webpage to restart the camera. The new network settings will then take effect Dedicated Micros ©2007... -
Page 12: General
The unit can be synchronised with the PC being used for the configuration process. The PC network clock time will then be adopted by the unit. All other parameters on this page may be required in the event that Technical Support are contacted. 6.26 Dedicated Micros ©2007... -
Page 13: Video
P frame being a record of only those areas of the image which differ to the I frame. This option allows the User to determine how often a new I frame will be recorded. Dedicated Micros ©2007... -
Page 14: Audio
8 bit (mono), 11025 Hz, 16000 Hz and 22050 Hz (half CD quality or 16 bit mono). Input AGC The Automatic Gain Control function can be utilised to lower excessive volume. Record Volume Adjustable level between 0 and 64. Dedicated Micros ©2007... -
Page 15: Serial
Any changes to this page will require the unit to be reset. This can be done via the Restart Camera button at the bottom of the webpage. Note: The telemetry receiver should be set to address number 1. 6.24 Dedicated Micros ©2007... -
Page 16: User Access
NetVu ObserVer or a DVR. Note: Please ensure all configured Usernames and Passwords are retained as loss of this information may result in the unit being returned to Dedicated Micros. 6.23 Dedicated Micros ©2007... -
Page 17: Camera
This option allows specific camera functionality setting to be established. Exposure Time Set the camera exposure rate (select from 1/1 to 1/100 seconds) Brightness Establish the camera brightness settings Flicker Rate Set the camera flicker rate, select from 50Hz or 60Hz. Dedicated Micros ©2007... -
Page 18: Connections
Connections 6.25 This page shows the IP addresses of machines currently connected to the camera via the network. IP Addresses A list of up to four IP addresses connected to the camera will be displayed. 6.25 Dedicated Micros ©2007... -
Page 19: Connecting To The Camvu 2000 Camera
Select the ‘Cameras’ option on the side bar. There is a page called ‘IP-Camera and Record Setup’. Select this page. Add the CamVu 2000 Camera information to a free position in the camera table. Use the parameters listed below. Camera type - IP IP Cam type - NetVu Server IP Cam URL - <Enter the IP address of the CamVu 2000>... - Page 20 ObserVer can connect directly to this video stream in the same way as it connects to a DVR. However, the camera needs to be within the same subnet as ObserVer. A CamVu 2000 Camera can be added to ObserVer to allow the Operator to easily select the camera for viewing and control: Highlight the Stored Image Servers Folder, or if a sub-folder (a folder within a folder) is required highlight the top level folder.
- Page 21 Notes Dedicated Micros ©2007...
- Page 22 Notes Dedicated Micros ©2007...
- Page 23 Equipment ........................5 Features ........................3 Features To Be Supported In Future Releases .............3 General ........................12 In order to setup a CamVu 2000 Camera using the On Screen Display menus; ..20 Introduction ........................3 Locating the Unit IP address ..................9 Network ........................11 Overview of the CamVu 2000 ..................7 Power Over Ethernet .....................5...
- Page 24 Dedicated Micros ©2007...
- Page 25 Tel : +33 (0) 1 45 81 99 99 Tel: +1 310 791-8666 Fax : +33 (0) 1 45 81 99 89 Fax: +1 310 791-9877 Dedicated Micros Slovenia Dedicated Micros, Australia PTY. Delavska cesta 26, 5/3 Packard Avenue, Castle Hill, 4208 Sencure, Slovenia NSW 2154, Australia...
