CAUTION
POSSIBLE
EQUIPMENT
DAMAGE
14
TOP
FRONT
BOTTOM
THREADED HOLES
FOR MOUNTING
SCREWS (4)
#6-32 X 1/4˝
SIDE

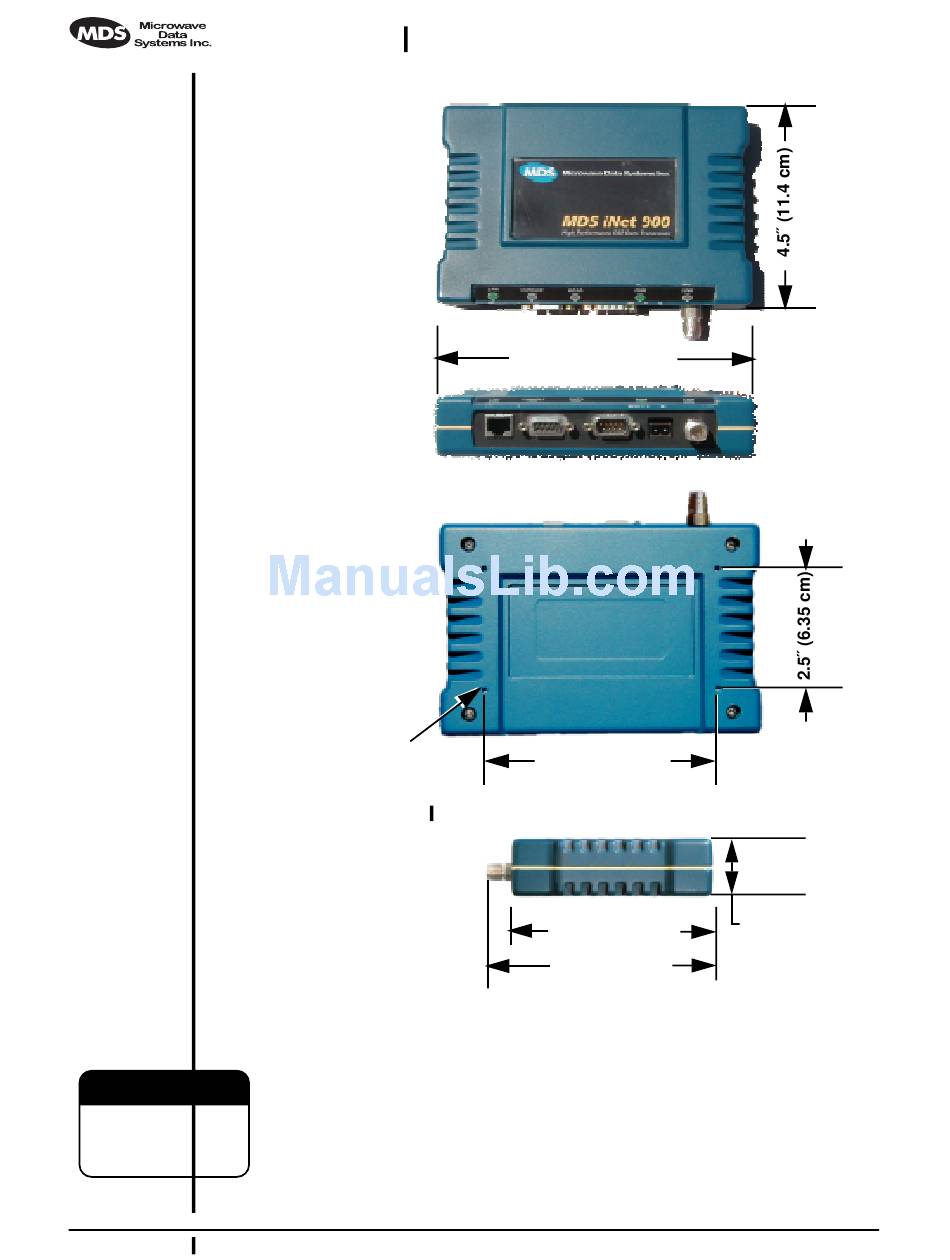

Figure 8. Transceiver dimensions
The screws holding the brackets to the radio are 5⁄16 inch (8 mm) long
or shorter to prevent damage to the radio's PC board when they are
tightened. If these screws are replaced for any reason, the new screws
must not exceed this length. The radio's case is made of a durable
cast-aluminum, however, the use of the wrong sized screws can dam-
age the screw sockets on the cover.
MDS iNet 900 Installation Guide
DRAFT 6—8/29/01
Invisible place holder
6.75˝ (17.15 cm)
4.85˝ (12/3 cm)
4.25˝ (10.8 cm)
4.75˝ (12 cm)
1.25˝ (3.17 cm)
MDS 05-2873A01, Rev. A
