HOST
COMPUTER

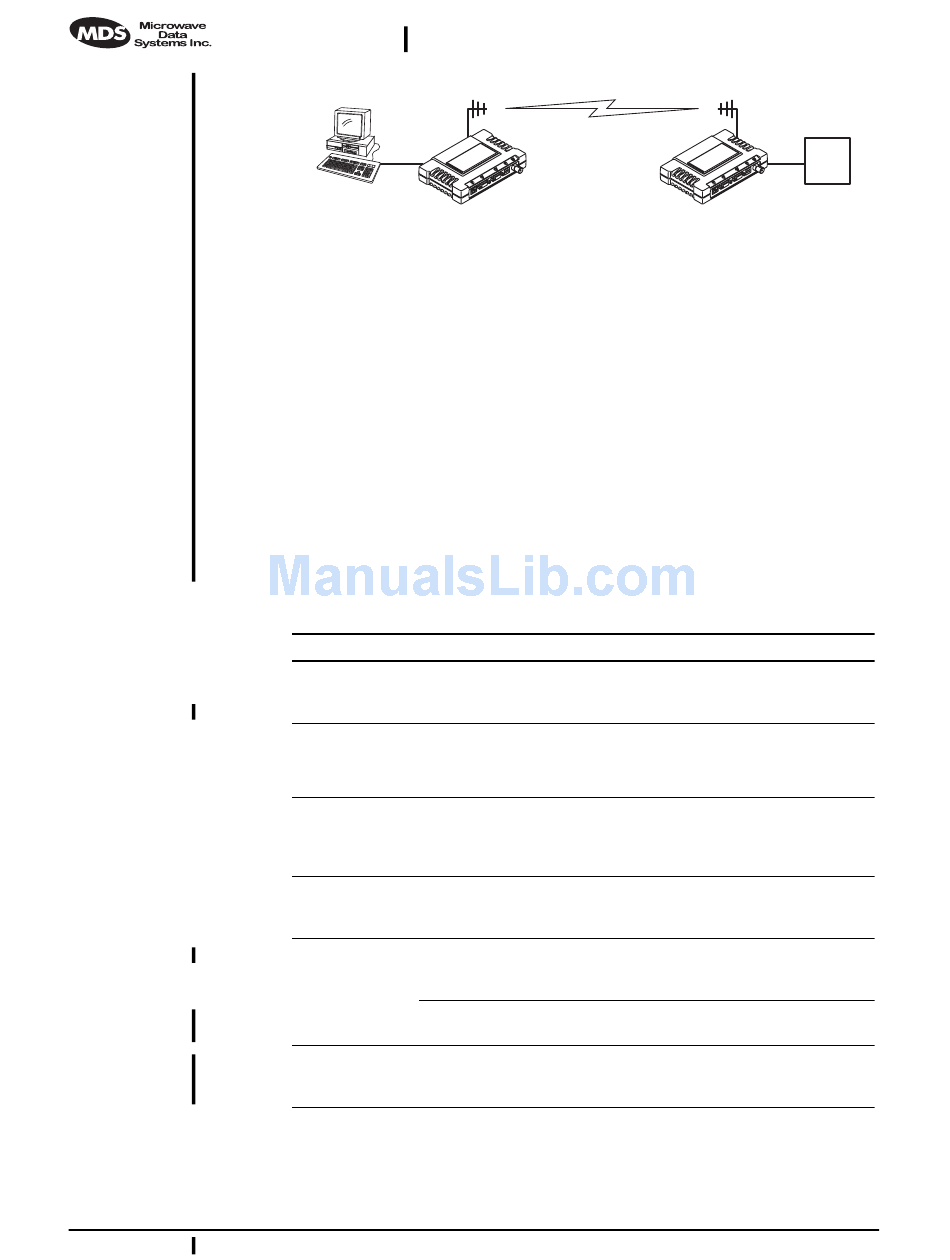

Figure 3. Typical point-to-point link
(A LAN connection may be used in place of a Host Computer)
Dealing with difficult terrain
In some geographical areas there may be obstacles that make communi-
cation between iNet transceivers difficult. These obstacles commonly
are large buildings, natural geological formations or dense foliage.
These obstacles can often be overcome with a repeater station. See
"REPEATER ASSITED LANS" on page 28 for descriptions of basic
repeater configurations.

2.4 Accessories

The MDS iNet 900 transceiver can be used with one or more of the
accessories listed in Table 1. Contact the factory for ordering details.
Accessory Description
A/C Power A small switching power supply module
Adapter designed for continuous service. UL approved.
Output 13.8 Vdc @ 500 mA.s
LAN Antenna Small and flexible 1/4 wavelength antenna
plugged directly into the radio's ANTENNA
port. Suitable for short-range local area
networks.
TNC to N Short length of coaxial cable (6"/15 cm) used to
Adapter connect the radio's TNC antenna connector to
a Type N commonly used on large diameter
coaxial cables.
Ethernet RJ-45 Cable assembly used to cross-connect the
Cross-over Ethernet ports of two iNet radios used in a
Cable repeater configuration. (Cable length = 3'/1M)
Flat-Surface Brackets: 2" x 3" plates designed to be screwed
Mounting onto the bottom of the transceiver for
Brackets surface-mounting the radio.
Screws: 6-32/1/4˝ with locking adhesive.
(Industry Standard MS 51957-26)
19˝ Rail Adaptor for mounting one MDS iNet 900 radio
Mounting in a standard 19-inch equipment rack.
Brackets
