Configuration example

Network requirements

As shown in
statistics for the incoming packets with 1.1.1.1/24 as the source IP address.

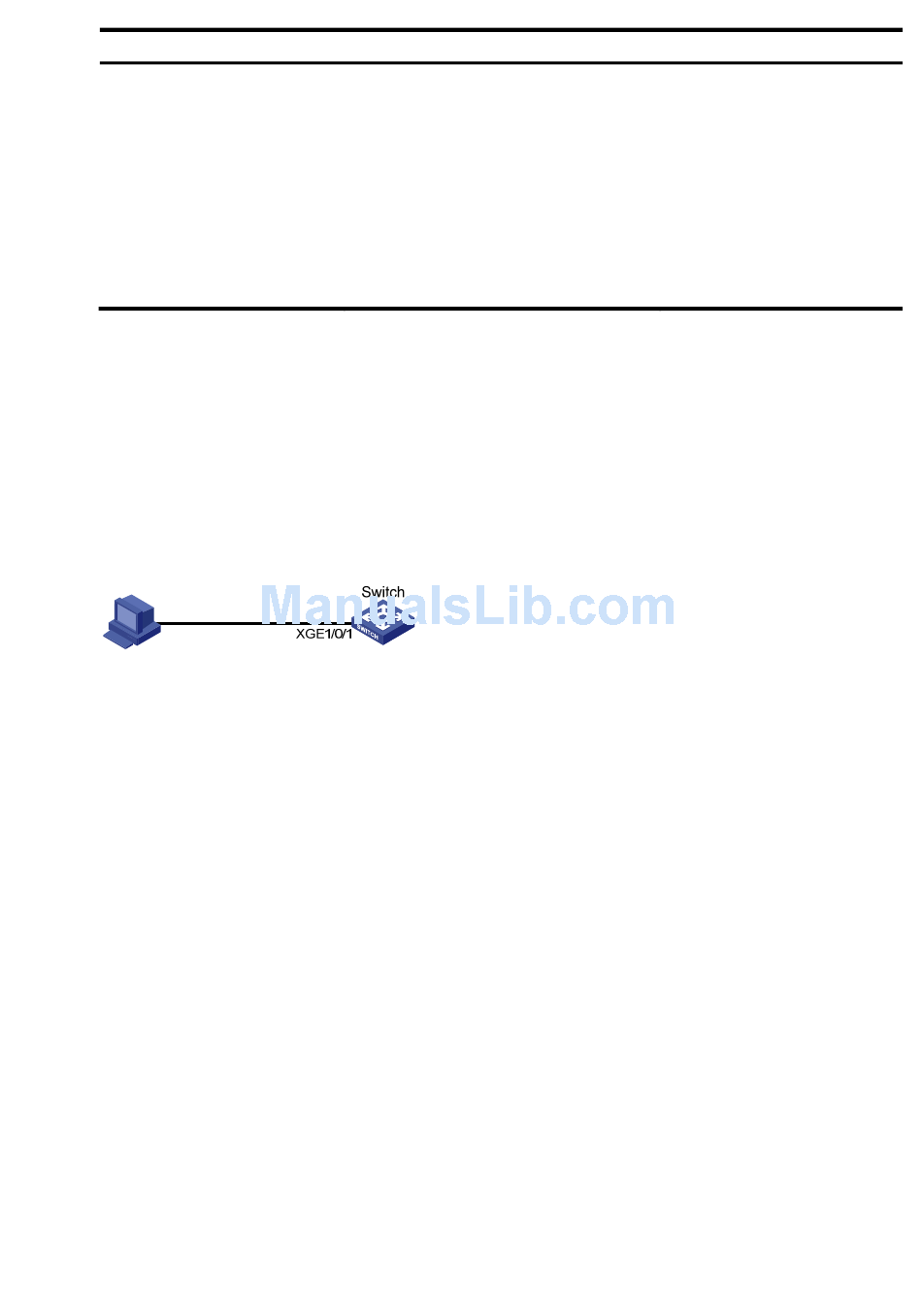

Figure 23 Network diagram

Configuration procedure

# Create basic ACL 2000, and configure a rule to match packets with source IP address 1.1.1.1.
<Switch> system-view
[Switch] acl number 2000
[Switch-acl-basic-2000] rule permit source 1.1.1.1 0
[Switch-acl-basic-2000] quit
# Create a traffic class named classifier_1, and use ACL 2000 as the match criterion in the traffic class.
[Switch] traffic classifier classifier_1
[Switch-classifier-classifier_1] if-match acl 2000
[Switch-classifier-classifier_1] quit
# Create a traffic behavior named behavior_1, and configure the class-based accounting action.
[Switch] traffic behavior behavior_1
[Switch-behavior-behavior_1] accounting packet
[Switch-behavior-behavior_1] quit
# Create a QoS policy named policy, and associate traffic class classifier_1 with traffic behavior
behavior_1 in the QoS policy.
[Switch] qos policy policy
[Switch-qospolicy-policy] classifier classifier_1 behavior behavior_1
[Switch-qospolicy-policy] quit
# Apply the QoS policy named policy to the incoming traffic of Ten-GigabitEthernet 1/0/1.
Command
•
display qos policy control-plane slot
slot-number
•
display qos policy global [ slot
slot-number ] [ inbound | outbound ]
•
display qos policy interface
[ interface-type interface-number ]
[ inbound | outbound ]
•
display qos vlan-policy { name
policy-name | vlan [ vlan-id ] } [ slot
slot-number ] [ inbound | outbound ]
Figure 23, configure class-based accounting on Ten-GigabitEthernet 1/0/1 to collect
83
Remarks
Available in any view.
