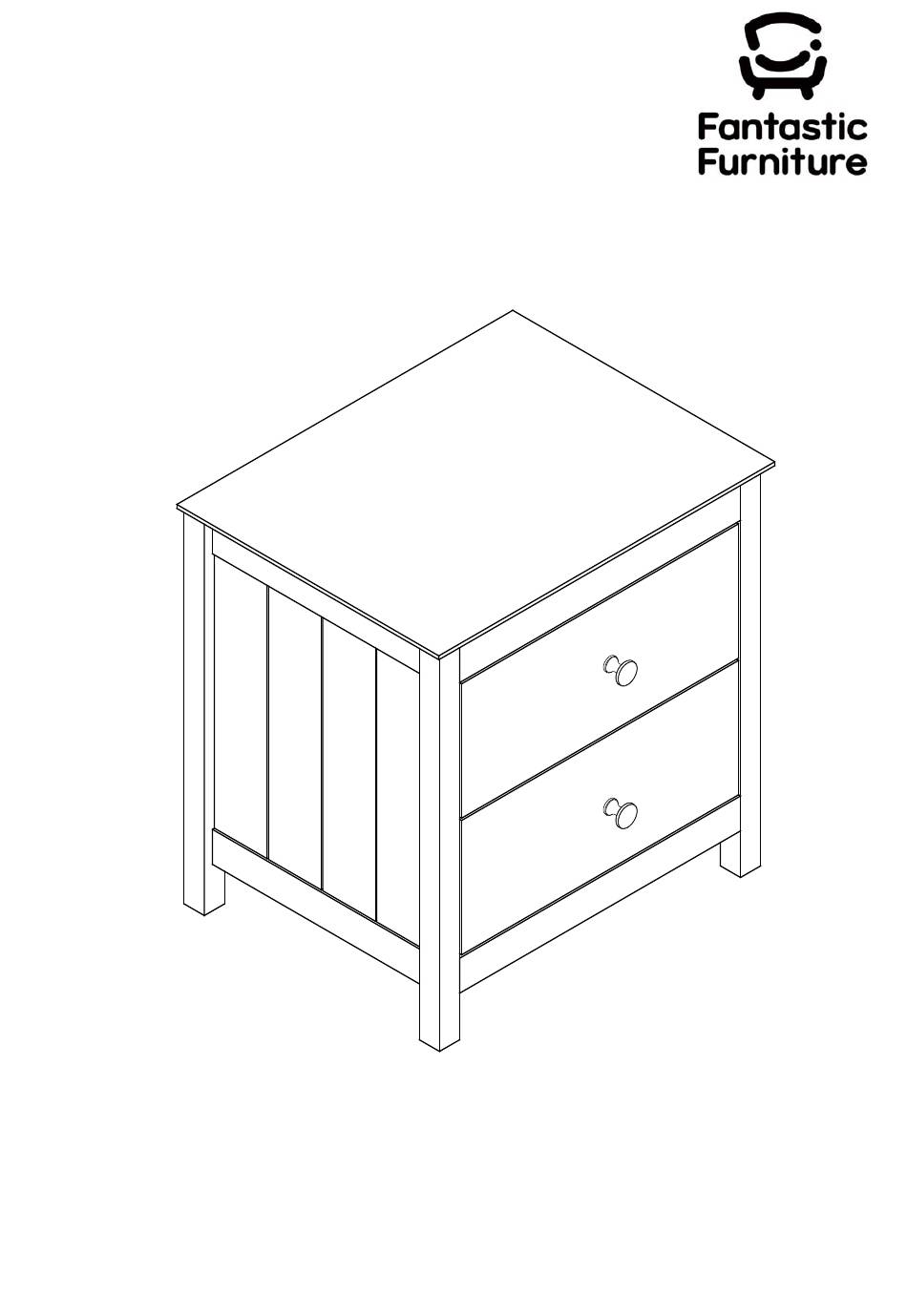

Version 1.0
Hamilton
Bedside 2 Drawer
fantasticfurniture.com.au

Advertisement

loading

Related Manuals for fantastic furniture Hamilton Bedside 2 Drawer

Summary of Contents for fantastic furniture Hamilton Bedside 2 Drawer

  • Page 1 Version 1.0 Hamilton Bedside 2 Drawer fantasticfurniture.com.au...
  • Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love！ Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 2 fantasticfurniture.com.au...

  • Page 3: Assembly Checklist

    Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.

  • Page 4: What You Need

    What you need to assemble the product Top Panel Right Side (P1) Panel (P3) DO NOT USE Back Panel Other tools you need: Phillips head screwdriver; (P6) Top Front Rail (P12) Left Side Bottom Back Panel (P2) Rail (P5) Bottom Front Rail (P4) Parts list Top Panel (P1);...
  • Page 5 Step 1 You will need 12 x Small 2 x CL Runner Screws (H5) Tracks (H6) (P3) 2 x CR Runner Phillips Head Tracks (H7) Screwdriver (P2) Attach 2 x CL RunnerTracks (H6) and 2 x CR Runner Tracks (H7) to Left&Right Side Panels (P2&P3) with 12 x Small Screws (H5) by tightening with the Phillips Head Screwdriver.
  • Page 6 Step 3 (P12) You will need (P4) 4 x Dowels 4 x Cam Nuts (H1) (H4) Phillips Head Screwdriver (P5) This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut.
  • Page 7 (P6) Step 5 (P3) (P2) Slide Back Panel (P6) into the grooves of Left&Right Side Panels (P2&P3). Step 6 (P1) You will need 4 x Cam Nuts 4 x Cam Bolts (P3) (H3) (H4) (P12) (P2) 2 x Long Phillips Head Screws (H14) Screwdriver (P1)
  • Page 8 Step 7 You will need 4 x Wedges 4 x Wedge (H12) Screws (H13) (P6) Phillips Head Screwdriver Secure Back Panel (P6) in place with 4 x Wedges (H12) using 4 x Wedge Screws (H13). Tighten with a Phillips Head Screwdriver. Step 8 You will need 8 x Cam Bolts...
  • Page 9 Step 9 (P8) You will need (P9) 8 x Cam Nuts Phillips Head (H4) Screwdriver (P7) Attach Drawer Sides (P8x2&P9x2) to Drawer Front (P7x2). Insert 8 x Cam Nuts (H4) into the holes of Drawer Sides (P8x2, P9x2). Make sure the opening on cam nuts point towards the incoming cam bolts.
  • Page 10 Step 12 You will need (P9) 2 x DL 2 x DR Runners (H8) Runners (H9) (P8) Phillips Head 8 x Small Screwdriver Screws (H5) Attach 2 x DL Runners (H8) to Left Drawer Sides (P8x2) and 2 x DR Runners (H9) to Right Drawer Side (P9x2) with 8 x Small Screws (H5) using a Phillips Head Screwdriver.

  • Page 11: Job Complete

    Step 14 (P7) (P7) Insert the assembled drawers into the corresponding compartments as shown. Ensure the drawers slide easily along the rails. Job Complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 11...
