Operating instructions – Part 2
Basic functions and operation

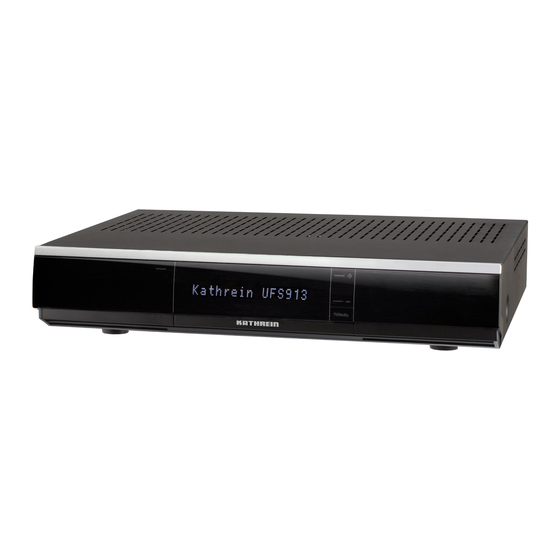

Receivers
UFS 913si
UFS 913sw
Part no.
20210184
20210185
Operating manual valid as of software version:
1.00
UFS 913
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UFS 913si and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kathrein UFS 913si

Summary of Contents for Kathrein UFS 913si

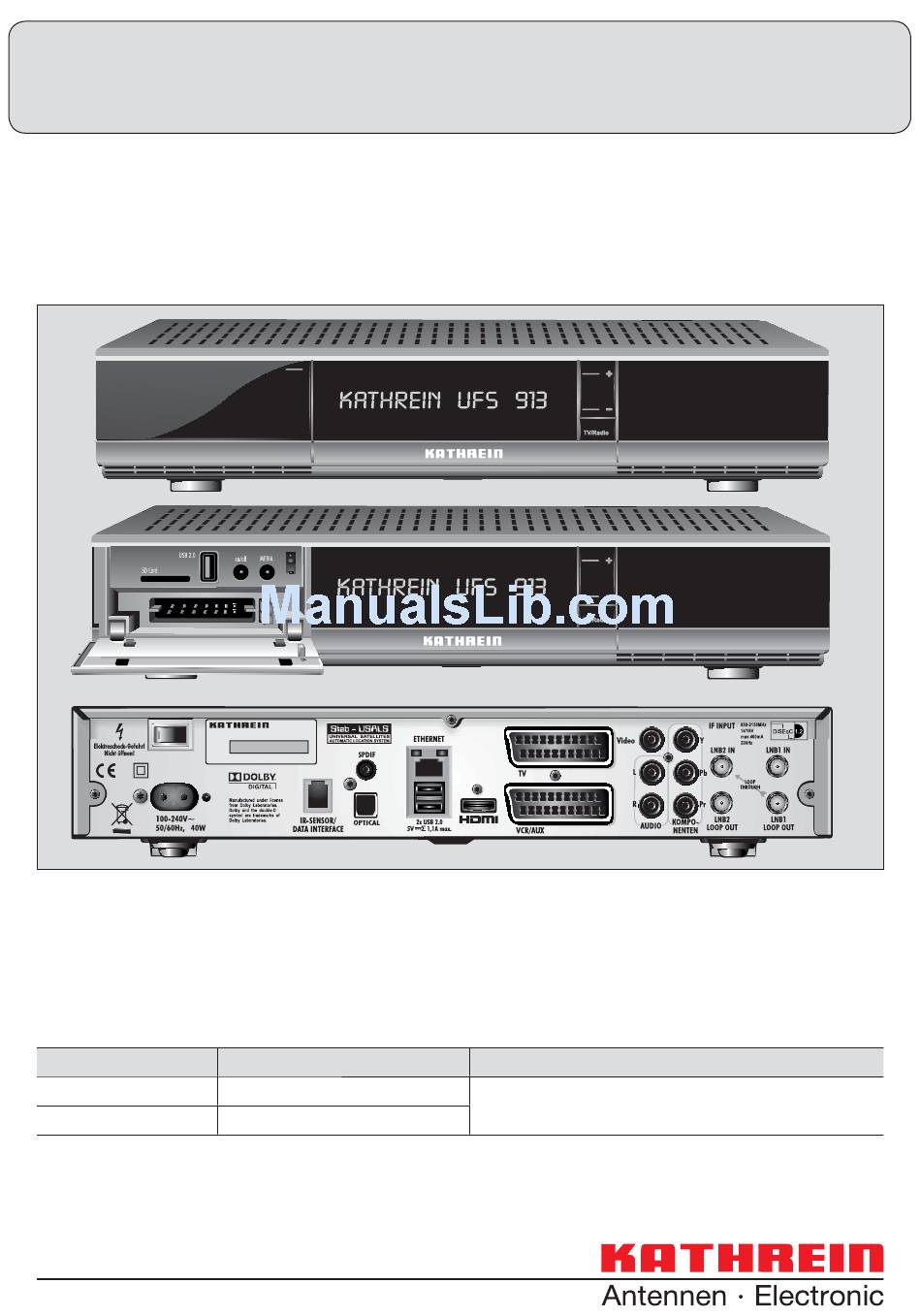

  • Page 1 Operating instructions – Part 2 UFS 913 English Basic functions and operation Receivers Part no. Operating manual valid as of software version: UFS 913si 20210184 1.00 UFS 913sw 20210185...
