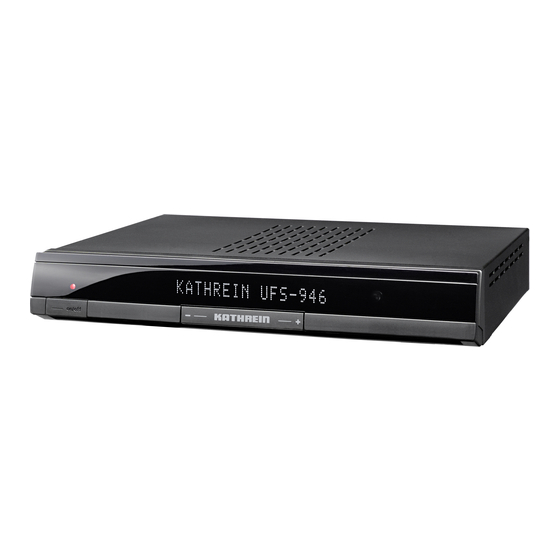

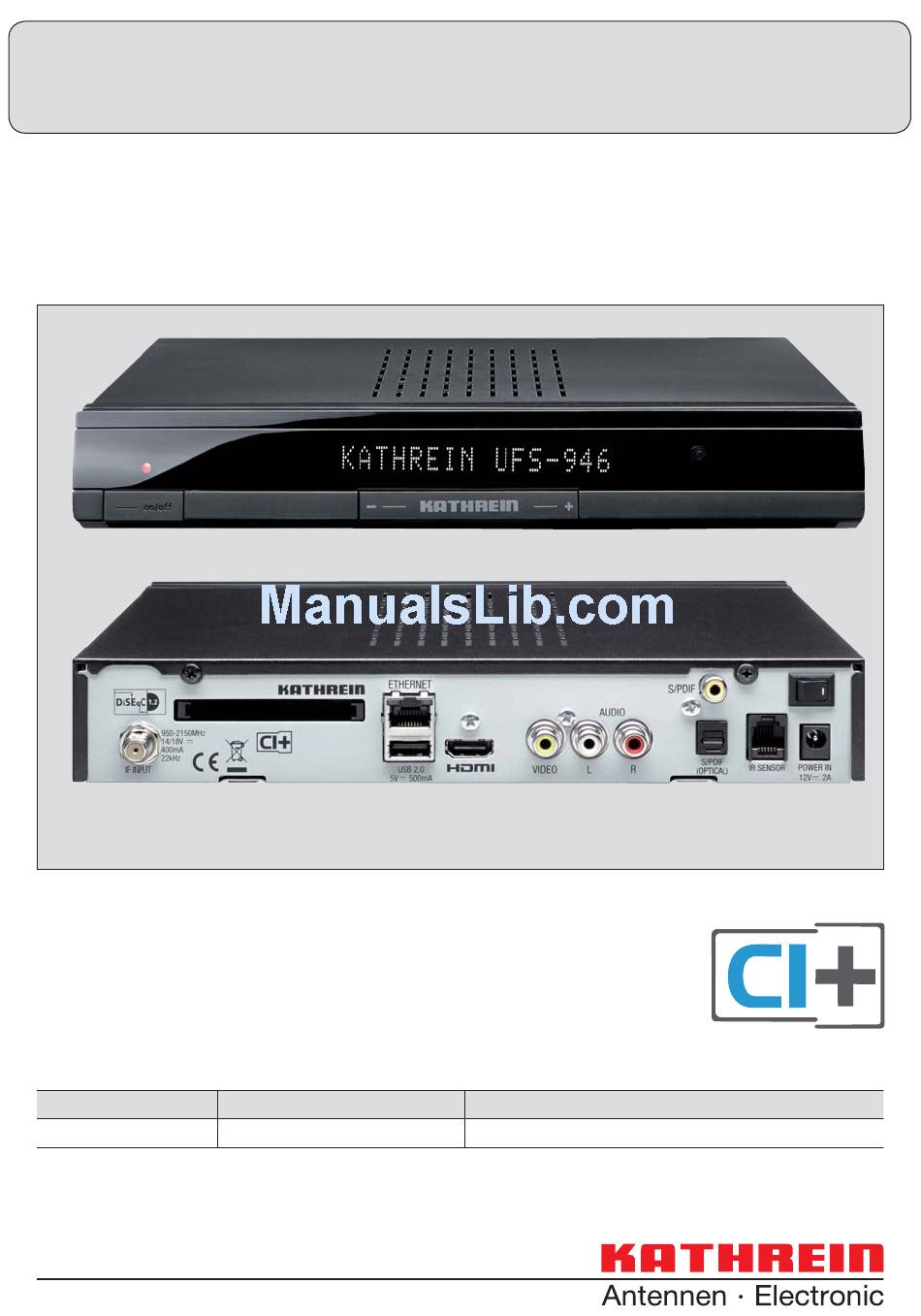

  • Page 1 Operating Instructions Part 2 UFS 946/CI+ Basic functions and operation Englisch Receivers Part no. Operating instructions valid as of software version: UFS 946/CI+ 20210222 1.00...

  • Page 2: Preface

    This unit makes use of legally protected technologies, which are protected by patents in the USA and also by other intellectual property rights in other countries. KATHREIN-Werke KG has obtained licences from Audio MPEG Inc. and Societa‘ Italiana per lo sviluppo dell‘elettronica, S.I.SV.EL, S.P.A to use these technologies. These licences carry certain restrictions which also apply to you as the customer.
  • Page 3 Licence). The source code of the program is available at: www.kathrein.de/linux/receiver/ufs946 Software changes/use of applications Any modifi cations to the receiver software, or the use of applications not provided by Kathrein will invalidate the warranty! You will have to bear the costs yourself for shipping and repairing any receiver that requires attention due to modifi...

  • Page 4: Table Of Contents

    Extras menu ............. 36 Software Update by USB ......... 63 My hints ................36 Load operatingsoftware ............. 63 HbbTV ................ 37 Update Channel List ............64 Kathrein portal (Media centre) ......... 38 Save Channel List to USB ..........64 Factory Reset ............64...
  • Page 5 List of contents Mainmenu - Settings ..........65 Calling up the menu ..........65 First Installation ............66 Basic Setting ............66 Video Settings ..............67 Audio Settings..............69 Time Setting ............... 70 Remote Control Code ............71 User Defined Settings ..........73 Parental Lock ..............

  • Page 6: Safety Instructions - Important Notes

    Safety instructions - important notes These two pages contain important information about the operation, installation location and connection of the unit. Read these instructions carefully before setting up the device. Mains power cable If the mains voltage is too high, there is a risk of fi...
  • Page 7 Safety instructions - important notes Do not place any objects on top Installation location of the unit. Unless stated to the All electronic equipment generates contrary in the “Connection and set- heat. temperature rise up” and “Installation” sections in this unit does however lie within the instructions supplied, maintain permissible range.

  • Page 8: Switching The Receiver Off

    Safety instructions - important notes Product return/original packaging Please keep the original packaging in case you need to return the product at any time! The receivers are fragile due to their construction and are only adequately protected by the original packaging. If the receiver is not shipped correctly the guarantee/warranty on it will be voided.

  • Page 9: Updating The Receiver Software

    (e.g. changes to the menus and/or functions), if we believe it necessary we will make available new operating instructions for download at “www.kathrein.de”. Make a note of the receiver's basic settings (these are set during fi rst installation) so you can restore...

  • Page 10: Basic Functions

    Basic functions Following an overview of the remote control, a simple explanation will be provided of the receiver’s most important functions (with all the required buttons on the remote control). The explanations in the sections “I would like to...” merely demonstrate the most simple use of the relevant receiver functions without going into any great detail.

  • Page 11: Remote Control In Live Mode (Tv/Radio)

    Basic functions Remote control in live mode (TV/radio) Switch between TV/radio mode Operation (on)/standby (off) Call up teletext Number pad Call up Mainmenu Volume “+” (louder) Volume “-” (softer) Mute Channel selection The coloured buttons are reserved for certain content- dependent functions (e.g.

  • Page 12: I Want To Watch Tv

    Basic functions I want to watch TV ...  - Use to increase or decrease the volume  - Use to switch channels  - Use to display and hide again additional channel information  - Press to mute sound ...

  • Page 13: I Want To Listen To The Radio

    Basic functions I want to listen to the radio ...  - Press to change to radio mode  - Use to increase or decrease the volume  - Use to switch channels  - Use to display and hide again additional channel information ...

  • Page 14: I Want To Access Teletext

    Basic functions I want to access teletext ...  - Use to call up teletext   - Use to enter the required page directly  - Use to page forward/back   - Use to return to TV...

  • Page 15: Editing And Selection Options In The Menus

    Basic functions Editing and selection options in the menus In some menus/displays this box is shown with a particular colour gradation. Each colour gradation represents a specifi c view/selection. The table below shows which colours are assigned to which buttons. Where the functions of these buttons are assigned for the current menu/ view, they are also shown in the line at the bottom of the on-screen display.

  • Page 16: Alphanumeric Entries

    Basic functions Alphanumeric entries For entries such as names of favourites or search expressions, use the keyboard displayed on the screen (see screenshot example). The letters assigned to the number pad also apply to your remote control. They are used in a similar way to those on a mobile phone.
  • Page 17 Basic functions Switch between letters and digits/ special characters  Switch to QWERTZ keyboard (control using the arrow buttons and the OK button) - see screenshot at top right  Switch between upper case and lower case letters  Confi rm the term entered ...

  • Page 18: Switching Between Tv And Radio Operation

    Basic functions Switching between TV and Radio operation  Press the button to switch between TV and radio operation. Adjusting the volume  Adjust the volume using the buttons. Channel selection ... directly  button allows the channel to be selected from the sorted channel list/favourites list currently selected.
  • Page 19 Basic functions...
  • Page 20 Basic functions Now use the relevant coloured button to select the category from which you want to open a channel list:  (red) button: Call up the “Favoriteslist” Contains the following channel lists: - Favourites lists 1-8  (green) button: Call up the “Complete List”...

  • Page 21: Channel Banners (Information)

    Basic functions  Use the cursor ( ) buttons to select the desired channel list and call it up using  button. After selecting the desired channel list, the desired channel is selected using the  cursor ( ) buttons and called up using ...
  • Page 22 Basic functions...

  • Page 23: Calling Up The Channel Options

    Basic functions The following icons (symbols) may appear in the channel information: Broadcast transmitted in Teletext is available HDTV standard 1080i Receiver registers Broadcast transmitted in the programme as HDTV standard 720p a live broadcast Portal channel (channel Receiver registers the options available) programme as a fi...

  • Page 24: Audio Selection

    Basic functions The desired channel list is selected using  the cursor buttons ( ) and called  up using the button. The following on-screen display appears:   Press the if you want to be reminded of this function next time, or the button if you don't want to see this message again.

  • Page 25: Select Subtitle

    Basic functions Select subtitle If the channel banner includes the following symbol for subtitles , you can call up the “Subtitle”   function as follows: Open the selection box (with the button) and press to select “Sound,   Picture, Subtitle”.

  • Page 26: Teletext

    Basic functions Teletext This symbol in the channel banner indicates whether teletext is available for the selected channel.  When you press the button, the receiver processes the videotext/Teletext service data for your TV set to display, even when the signal is encrypted. During the search, the page which is being searched for is displayed in the top left-hand corner with the time and date displayed at the top right.

  • Page 27: Electronic Programme Guide (Epg)

    Electronic Programme Guide (EPG) General information on the programme guide What is the programme guide? The electronic programme guide (in the following section referred to as the EPG for short) provides all programme information free of charge (EPG data) and informs you up to a week in advance. However, this programme information must be broadcast by the related channel provider.

  • Page 28: Calling Up The Epg

    Electronic Programme Guide (EPG) Calling up the EPG  The EPG is called up by pressing the button. You will automatically see the view you selected in the menu (“Settings”, “User-Defi ned Settings”, “EPG Setup”) - irrespective of which view you selected last time before exiting the EPG.

  • Page 29: Navigation (Remote Control Buttons In The Epg)

    Electronic Programme Guide (EPG) Navigation (remote control buttons in the EPG) Button Function Call up “Current” view (displays all channels in the order of the overall list) (green) Navigation in the individual views (e.g. skip forward 15 minutes in the “Current” view) Open a preview of the currently selected channel (programme listings) (yellow)

  • Page 30: Epg Views

    Electronic Programme Guide (EPG) EPG views “Current” view  Press the (green) button to call up the “Current” view in EPG. In the “Current” view you can see all channels displayed in the order of the complete channel list. Provided that EPG data has been supplied by the channel provider, the receiver shows the current programme running on each channel, with start time,...

  • Page 31: Preview" View (Programme Magazine)

    Electronic Programme Guide (EPG) “Preview” view (programme magazine) The “Preview” view can be called up at any time in the EPG by pressing the  (yellow) button. In the “Preview” view you will see all programmes to be shown for the channel previously selected “Current”...

  • Page 32: Categories View

    Electronic Programme Guide (EPG) Categories view The categories overview can be called up at any time in the EPG by pressing the  (blue) button. In the “Category” view you can see all programmes sorted by category and starting time. following main categories...

  • Page 33: Search Function

    To open the menu for “More Episodes” and  button. “Keywordsearch in detailed information”, press the For the “on YouTube” function please refer to the “Kathrein portal (Media centre)” guide which can be downloaded from “www.kathrein.de”. More episodes The following on-screen display appears (see example on the right): ...

  • Page 34: Key Word Search In Detailed Information

    Electronic Programme Guide (EPG) Key word search in detailed information The following on-screen display appears (see example on the right):  Use the cursor ( ) buttons to select the fi rst letter of the word by which you want to search the available EPG information.

  • Page 35: Full-Text Search

    Electronic Programme Guide (EPG) Full-text search After calling up the search function, select  Full-text search and confi rm using The following on-screen display appears (see example on the right): The last search expression used may appear  by default. By pressing the button you can delete your input or a search expression provided by the receiver.

  • Page 36: Extras Menu

    Electronic Programme Guide (EPG) Extras menu The “Extras” menu is opened in the EPG  by pressing the button. This menu offers you the following additional sorting/ search option: - My hints   The selection is made using the buttons and confi...

  • Page 37: Hbbtv

    Media library for the channel “Das Erste” HbbTV content is provided by each respective programme provider/broadcaster, not Kathrein. Kathrein also does not accept any liability for any inaccurate, incomplete or out-of-date content that may be provided. Use of HbbTV is the responsibility of the user, and is at their own risk.

  • Page 38: Kathrein Portal (Media Centre)

    Kathrein portal (Media centre) For all applications of the Kathrein portal please refer to the separate guide “Kathrein portal (Media centre)” (see picture below) which you can download from “www.kathrein.de”. Anleitung Deutsch UFS 946sw...

  • Page 39: Mainmenu

    Mainmenu Calling up the main menu and introduction  The main menu is opened by pressing the button. The following on-screen display appears: Tip! Always check the bar at the bottom of on-screen display. This provides information on what to do next. The picture for the programme on the currently selected channel appears in the top right-hand corner of the main menu.

  • Page 40: Overview Of The Main Menu Submenus

    Mainmenu Overview of the main menu submenus...

  • Page 41: Mainmenu - Edit Tv-Channellist

    Mainmenu - Edit TV-Channellist All changes to the channel lists and favourites lists which you can make as described in the following section are not saved by the receiver unless, when you  exit the menu by pressing the button, you answer “Yes, save changes” to the ...
  • Page 42 Mainmenu - Edit TV-Channellist...

  • Page 43: Navigation (Remote Control Buttons In "Edit Tv-Channellist" Menu)

    Mainmenu - Edit TV-Channellist Navigation (remote control buttons in “Edit TV-Channellist” menu) Button Function 1 x Call up the overall list 2 x Overview of available sort orders for the overall list (list view) (green) 1 x Call up alphabetical sort order 2 x Overview of the sort options (list view) (yellow) Switch between TV and radio channel lists...

  • Page 44: Views (Sort Orders)

    Mainmenu - Edit TV-Channellist Views (sort orders) (green) Complete list view. You can use the  buttons to choose between the sorting criteria “Complete List” and “Sorted by Satellite” (e.g. ASTRA 19.2°) (yellow) Alphabetical sort order view. Use the  buttons choose between the available sorting options...

  • Page 45: Selection Of The Channel/S To Be Edited

    Mainmenu - Edit TV-Channellist Selection of the channel/s to be edited For selection of a channel, select the desired channel in the selected channel  list/favourites list, using the cursor ( buttons (see example screenshot on the right). To select several channels for editing at the same time, if they are not listed directly following each other in the selected channel ...

  • Page 46: Move

    Mainmenu - Edit TV-Channellist Move  Use the buttons to select  “Move” and confi rm with the button. The following on-screen display appears (see example screenshot on the right):  Use the cursor ( ) buttons or the number pad to select the new channel memory position(s), then confi...

  • Page 47: Lock

    Mainmenu - Edit TV-Channellist Lock  Use the buttons to select  “Lock” and confi rm with the button. To lock the channel, you now need to enter your four-digit PIN code (factory setting: 0000). following screen display appears (see example screenshot on the right): The locked channel is now displayed in the channel list with a padlock on the right hand side, and in future can only be viewed by entering the four-digit PIN code (factory setting: 0000).

  • Page 48: Start Blockselection

    Mainmenu - Edit TV-Channellist Start Blockselection  Use the buttons to select “Start Blockselection” and confi rm by  pressing the button. You can now  use the buttons to start block selection previously selected channel. This selects the channels in the sequence in which they appear in the previously selected channel list and applies a coloured background to them...

  • Page 49: Editing Favourites Lists

    Mainmenu - Edit TV-Channellist Editing favourites lists After selecting channel(s) favourites list you want to edit, press  button. The following screen display appears (see screenshot on the right): “Start Blockselection” only appears if one channel only is selected. Move See “Edit channels (channel lists)”, “Move”...

  • Page 50: Rename Favoritelist

    Mainmenu - Edit TV-Channellist Rename favoritelist  Use the buttons to select “Rename favoritelist” and confi rm by  pressing the button. You can now rename the favourites list you selected. The following on-screen display appears (see example screenshot on the right): Alphanumeric characters entered...

  • Page 51: Mainmenu - Channel Search

    Mainmenu - Channel Search Calling up the menu  From the TV picture, press the button to open the Mainmenu. Now select the “Channel Search”   using the buttons and confi rm by pressing the button. You now see the following on-screen display: You have three different search options: Search type...

  • Page 52: Automatic Channel Search

    Mainmenu - Channel Search Automatic channel search After calling up the menu you will see the following on-screen display:  buttons allow you to select different sets of parameters for the search. Satellite  Now use the buttons to choose between the individual satellites you have set up, or select the setting “All”.
  • Page 53 Mainmenu - Channel Search TV channels Radio channels found found During the search you will see the following on-screen display (example): The newly found channels are added are identifi ed with the suffi x “new” (see example screenshot on the right). You can cancel the search at any ...

  • Page 54: Manual Channel Search

    Mainmenu - Channel Search Manual channel search After calling up the menu you will see the following on-screen display:  buttons allow you to select different sets of parameters for the search. Satellite  Use the buttons to select the satellite on which the transponder you want to scan is located. ...
  • Page 55 Mainmenu - Channel Search Channel Search Mode  Use the buttons to select the type of channels that are to be searched for. You have three options: - “free & scrambled” All channels are searched for - “only free” Only free-to-air channels are searched for - “only scrambled”...

  • Page 56: Channel Scan With Service Id

    Mainmenu - Channel Search Channel scan with service ID After calling up the menu you will see the following on-screen display:  buttons allow you to select different sets of parameters for the search. Satellite  Use the buttons to select the satellite that is transmitting the channels to be searched. By ...

  • Page 57: Astra Channellist Management (Lcn)

    Mainmenu - Channel Search  Once you have defi ned all the settings, use the buttons to switch to the “Start Search” selection  fi eld and confi rm the start of the search using the button. The following on-screen displays that appear during and in connection with the search are identical to those for an automatic search.

  • Page 58: Update Astra Channel List

    Mainmenu - Channel Search Update ASTRA channel list  Press the button. The ASTRA channel list is updated. If your channel list is already fully up to date, there channels available, the following on-screen display appears: following on-screen display appears (example): If you do not want to edit the channel positions After showing this on-screen display the receiver of new channels you can leave the corresponding...

  • Page 59: Mainmenu - Service Menu

    Mainmenu - Service menu Calling up the menu  From the TV picture, press the button to open the Mainmenu. Now select “Service Menu”, using the   buttons, and confi rm the call up of the menu using the button.

  • Page 60: Automatic Software Update

    ! New software available software update. Information UFS 946/CI+ date xx.xx.xxxx Dear customer, New software V x.xx is available. You will fi nd more information at www.kathrein.de   Cancel Update Software The receiver saves the new data and ! Note then restarts.

  • Page 61: ( Software) Update By Satellite

    Mainmenu - Service menu ( Software) update by satellite After calling up the menu, you will see the following on-screen display: All available s modules/components for your receiver will be loaded and then displayed. Software updates from the satellite available limited periods.
  • Page 62 After performing a software update, check the time setting on the receiver! Tip! You can also download the updates from the Internet. The address is: www.kathrein.de These updates can also be performed via the receiver’s USB interfaces (see “Software Update...

  • Page 63: Software Update By Usb

    ∟ Subfolder: ufs946 You can also download the updates from the Internet. The address is: www.kathrein.de Load operating software First connect your USB stick (containing the new operating software) to the receiver, using a free USB port on the receiver. Now select the “Update Firmware” fi eld and confi rm the start of the update ...

  • Page 64: Update Channel List

    The function “Update Channel List” allows you to reload the saved channel list to the receiver at a later date, should you so require. The channel list “channel.xml” is copied to the USB storage medium using the following folder structure: Main folder: kathrein ∟ Subfolder: ufs946 Factory Reset...

  • Page 65: Mainmenu - Settings

    Mainmenu - Settings Calling up the menu  From the TV picture, press the button to open the Mainmenu. Then select the “Settings” item, using   buttons, and confi rm the call up from the menu using the button. The following on-screen display appears: You can choose between the following menus: Menu...

  • Page 66: First Installation

    Mainmenu - Settings First Installation See Operating Instructions Part 1 “Connection and set-up”. Basic Setting After calling up the menu you will see the following on-screen display:   Use the buttons to select the desired menu and confi rm with the button.

  • Page 67: Video Settings

    Mainmenu - Settings Video Settings After calling up the menu you will see the following display (depending on the selected signal output):  Individual items are selected using the buttons. Changes to the current settings can be made  using the buttons.
  • Page 68 Mainmenu - Settings HDMI standard setting Here you can set the connection over which you want to connect the TV set and the receiver. Choose either HDMI or DVI. HDCP for free channels Select here whether HDCP (digital copy protection) is to be switched on or off with free channels. TV control box via HDMI (CEC) If you select “Off”, the TV set must be switched on or off separately.

  • Page 69: Audio Settings

    Mainmenu - Settings Audio Settings After calling up the menu you will see the following on-screen display: Individual items are selected using the  buttons. Changes to the current settings can be  made using the buttons. Preferred Audio Language Here select your preferred audio language.

  • Page 70: Time Setting

    Mainmenu - Settings Time Setting After calling up the menu you will see the following on-screen display: Changes to the current setting can be  made using the buttons. Set Local Time Here you can select the time zone deviation to UTC (formerly GMT) (e.g. for Germany +1 hour). You can set the deviation in 30-minute steps.

  • Page 71: Remote Control Code

    Mainmenu - Settings Remote Control Code After calling up the menu you will see the following on-screen display: You can use this function to allow you to operate several receivers (e.g. four UFS 946/ CI+ units) using the same remote control. You can assign each receiver its own remote control code.
  • Page 72 Mainmenu - Settings If you have another Kathrein receiver in use that was supplied with the RC 660 remote control, you can use the UFS 946/CI+ remote control to operate that other receiver also. On the UFS 946/CI+ remote control, the remote control codes for the RC 660 begin with “5”: ...

  • Page 73: User Defined Settings

    Mainmenu - Settings User Defi ned Settings After calling up the menu you will see the following on-screen display:   Use the buttons to select the desired menu and confi rm with the button. Parental Lock After calling up the menu you will see the following on-screen display: In order to access this menu, you must enter the four-digit PIN code (factory...
  • Page 74 Mainmenu - Settings Lock Mainmenu Select here whether the main menu should be locked. If the main menu is locked, the four-digit PIN code will be requested when it is called up. Without the four-digit PIN code (factory setting: “0000”), the main menu cannot be viewed and no changes can be made to the device settings.

  • Page 75: Customize Screen Menu

    Mainmenu - Settings Customize Screen Menu After calling up the menu you will see the following on-screen display: Individual items are selected using the  buttons. Changes to the current settings can be  made using the buttons. Sleep Timer You can use the “Sleep Timer”...
  • Page 76 Mainmenu - Settings Front Display Brightness Set the front display brightness here. Select the most comfortable setting for your ambient lighting. Your available options are: - Bright - Medium - Dark or - Off (display is not switched on/lit during operation) Front Display Notifi...

  • Page 77: Programme Guide (Epg Setup)

    Mainmenu - Settings Programme Guide ( EPG Setup) After calling up the menu you will see the following on-screen display: Individual items are selected using the  buttons. Changes to the current settings can be  made using the buttons. EPG Grabbing Select here whether the EPG data are to be automatically updated at the time selected in “EPG Grabbing Time”...

  • Page 78: Mediacenter Setup

    Mainmenu - Settings Mediacenter Setup After calling up the menu you will see the following on-screen display: Individual items are selected using the  buttons. Changes to the current settings can be  made using the buttons. Simple MP3 Mode ...

  • Page 79: Antenna & Satellite

    Mainmenu - Settings Antenna & Satellite You should only make changes to the “Tuner Confi guration”, “Edit Satellites” and “Edit Transponders” menus if you are very familiar with the confi guration of your satellite reception system! If you do not know the confi guration of your satellite reception system, contact your specialist dealer.

  • Page 80: Tuner Configuration

    Mainmenu - Settings Transponder Frequency  Use the buttons (transponder frequency already stored) or the number pad (transponder frequency not yet stored) to select the transponder frequency to be tested. At the bottom right of the on-screen display, the receiver shows the current signal strength and signal quality of the selected transponder.

  • Page 81: Edit Satellites

    Mainmenu - Settings Edit Satellites You should make changes only if you are thoroughly familiar with the confi guration of your satellite reception system! If you do not know the confi guration of your satellite reception system, contact your specialist dealer. After calling up the menu you will see the following on-screen display: Individual items are selected using the...
  • Page 82 Mainmenu - Settings Polarisation The polarisation is permanently assigned to each transponder stored and cannot be changed. Symbol Rate The symbol rate is permanently assigned to each transponder stored and cannot be changed. Satellite Longitude A fi xed longitude is assigned to each satellite stored and cannot be changed.

  • Page 83: Edit Transponder

    Mainmenu - Settings Delete Satellite  Press the button to delete the satellite currently selected. For security reasons you are asked to confi rm that you really want to delete the satellite  by pressing the button. Edit Satellite Name ...
  • Page 84 Mainmenu - Settings Satellite Select here the satellite for which you want to edit/delete the transponder, or for which you want to add a new transponder.  Pressing the button at this point will show you a list of the satellites stored in the receiver.
  • Page 85 Mainmenu - Settings New Transponder  Pressing the button calls up the input screen to store a new transponder. The following on-screen display appears: Frequency Use the number pad to enter the transmission frequency transponder. Polarisation: Select here the applicable polarisation for the selected transponder. Either “Horizontal” or “Vertical”. Symbol Rate: Use the number pad to enter the corresponding symbol rate.
  • Page 86 Mainmenu - Settings Edit Transponders  Pressing the button calls up the input screen which allows you to edit/change the settings of the previously selected transponder. Frequency: Here shown selected transponder to be edited. The transponder frequency cannot be changed. Polarisation: Select here the applicable polarisation for the selected transponder.

  • Page 87: Mainmenu - Interface Setup

    CI+ Decryption System Multidecryption Please refer separate instructions “Kathrein Ethernet Settings portal (Media Centre)” which can be downloaded from “www.kathrein.de”. Wake on LAN allows other devices within the same network Wake On LAN (starting via network) to “wake up” the receiver from standby mode.

  • Page 88: Ci+ Decryption System

    Mainmenu - Interface Setup CI+ Decryption System After calling up the menu you will see the following on-screen display (example): For details on fi tting the CI module and Smartcard in the receiver’s CI slot, Operating Instructions Part 1, “Connection and set-up”, “Common interface (CI)”...

  • Page 89: Multidecryption

    Mainmenu - Interface Setup Multidecryption  If your CI module is capable of decrypting multiple channels, you can press the buttons to select whether the module should always decrypt only one channel (Off) or multiple channels simultaneously (On). This function is optimised for “AlphaCrypt” modules and may lead to malfunctions with other modules.

  • Page 90: Ethernet Settings

    PC/laptop, consult your PC or network specialist. To confi gure the network settings please refer to the Operating Instructions Part 1 “Connection and set-up”, “Network/Internet Connection” and the separate instructions “Kathrein portal (Media centre)” which you can download from “www.kathrein.de”.

  • Page 91: Mainmenu - Applications

    Mainmenu - Applications Calling up the menu  From the TV picture, press the button to open the Mainmenu. Then select “Applications”, using the   buttons, and confi rm the call up of the menu using the button. The following on-screen display appears: ...

  • Page 92: Mainmenu - Language Selection

    Mainmenu - Language Selection Calling up the menu  From the TV picture, press the button to open the Mainmenu. Then select “Language Selection” using   buttons, and confi rm the call up of the menu using the button. The following on-screen display appears: ...

  • Page 93: Operation From The Front Panel (Without Remote Control)

    Operation from the front panel (without remote control) If you have misplaced your remote control, or if the batteries are empty, you can still operate your receiver from the front panel. Backup operation There are three buttons on the front of the receiver: On/Off button: The on/off button allows the receiver to be switched On (operation) and Off again (stand-by mode).

  • Page 94: Software Update By Usb

    ∟ Subfolder: ufs946 You can also download the updates from the Internet. The address is: www.kathrein.de 1. Switch the receiver to standby mode 2. Switch off the receiver at the main switch at the rear of the unit 3. Now connect your USB stick (with the new operating software, in the required directory structure) to the receiver using the USB port on the receiver 4.

  • Page 95: Brief Technical Glossary

    Brief technical glossary AC 3 DiSEqC™ Dolby digital signal DiSEqC™ (Digital Satellite Equipment Control) is a communication system between a satellite ASTRA receiver (master) and the peripheral satellite SES (Société Européene des Satellites) satellite components (slaves), such as LNBs, multi- system.
  • Page 96 Brief technical glossary FBAS IP address Colour-picture-blanking-synchronous signal for Internet Protocol address. Every unit that can be the transmission of colour video signals used in a network has a dedicated IP address so as to obtain an unambiguous assignment (address) for e.g. the exchange of data. FEC is the abbreviation for Forward Error Correction.
  • Page 97 TV programme. After the PID is entered, the in the feed system or in the matrix. digital receiver automatically selects the audio The Kathrein one cable system satisfi es the data identifi ed by the PID number from the single-cable...
  • Page 98 Brief technical glossary Subnet mask Web interface Defi nes an IP address range in a subnet (small This is a web interface which allows two or independent network). more systems (e.g. receiver to PC) to interact. It makes it possible to transfer data, for example. Symbol rate The symbol rate describes the quantity of data that is transmitted per second.

  • Page 99: Troubleshooting

    Troubleshooting In the event of a malfunction, fi rst check all the cable connections and operating states: 1. Receiver and TV set power plugs are connected to wall socket 2. Antenna cables are connected to the receiver input 3. Receiver and TV set correctly connected by a HDMI or Scart cable 4.
  • Page 100 Troubleshooting Check that the (cross-over) network cable is correctly connected (clicked connection network Network problem home) (receiver, router, etc.) possible Refer to your PC or network specialist Select a channel/transmitter that selected channel is provided by HbbTV (e.g. ARD or provided by HbbTV.

  • Page 101: Service

    Service If, despite studying these operating instructions, you still have questions about getting started with the unit or using it correctly, or if unexpected problems occur, please contact your specialist dealer. Tip! The serial number sticker for the UFS 946/CI+ is located on the underside of the unit. The information printed on it includes the following: - The exact designation (e.g.

  • Page 102: Subject Index

    Subject index Adjusting the volume Edit TV-Channellist Calling up the menu Alphanumeric entries Edit channels (channel lists) Antenna & Satellites Delete Applications Lock Move Start FTP at booting Skip Start UPnP server at booting Start Blockselection To Favourite Audio selection Editing favourites lists Automatic software update Navigation (remote control buttons in...
  • Page 103 Subject index Kathrein portal (Media centre) Remote control in live mode (TV/radio) Language Selection Select subtitle Legal information Service Service menu Automatic software update 57, 60 MP3 player screensaver Calling up the menu Factory Reset Software Update by Satellite Operation from the front panel...
  • Page 104 Subject index Software update via the front USB port Start FTP at booting Start view (EPG) Switching between TV and radio operation Teletext Troubleshooting Tuner Confi guration Volume bar display WOL (Wake on LAN)

  • Page 105: Third Party Copyrights And License Terms

    Third Party Copyrights and License Terms 1. Copyright Recognition Statements Third Party Copyright Notices/Acknowledgements Third Party Software License Terms Allgemeines / General Software-Components and associated Licenses 2.2.1 Application 2.2.2 ST-Linux 2.2.3 Binaries/Executables License Texts 2.3.1 GPLv2 2.3.2 LGPL licensed Software 2.3.3 STLinux licenses 2.3.4...

  • Page 106: Copyright Recognition Statements

    GNU Lesser General Public License lizensiert ist. Diese Freie Software wurde von Dritten entwickelt und ist urheberrechtlich geschützt. Sie sind berechtigt, diese Freie Software gemäß den oben genannten Lizenzbedingungen zu nutzen. Den Quelltext samt Urhebervermerken der Freien Software fi nden Sie im Internet auf der KATHREIN- Werke KG Homepage unter: http://www.kathrein.de/linux/receiver/ufs946 Diese Webseite steht bis max.

  • Page 107: Software-Components And Associated Licenses

    The website will be available for a maximum of three years after the sale of our fi nal product. The use of the open source software contained in this product that goes beyond the scope of its use by KATHREIN-Werke KG is at your own risk.

  • Page 108: License Texts

    Third Party Copyrights and License Terms License Texts 2.3.1 GPLv2 Related Software or Software parts: • mount.cifs • lircd http://www.lirc.org/ • mkdosfs • iwpriv, iwconfi g, iwlist http://www.hpl.hp.com/personal/Jean_Tourrilhes/Linux/Tools.html • iptables-multi http://www.netfi lter.org/ • busybox http://www.busybox.net/ License Text: http://www.gnu.org/licenses/gpl-2.0.html GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
  • Page 109 Third Party Copyrights and License Terms program or work, and a „work based on the Program“ means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifi cations and/or translated into another language.
  • Page 110 Third Party Copyrights and License Terms If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.
  • Page 111 Third Party Copyrights and License Terms WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

  • Page 112: Lgpl Licensed Software

    Third Party Copyrights and License Terms 2.3.2 LGPL licensed Software Related Software or Software parts: • GNU C Library (libc) http://www.gnu.org/software/libc/ • Pango http://www.pango.org/ • GTK+ Project http://www.gtk.org/ • DirectFB http://directfb.org/ • E2fsprogs (Ext2/3/4 Filesystem http://e2fsprogs.sourceforge.net/ Utilities) • Cairo (2D graphics library) http://cairographics.org/ •...
  • Page 113 Third Party Copyrights and License Terms Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specifi...
  • Page 114 Third Party Copyrights and License Terms You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifi...
  • Page 115 Third Party Copyrights and License Terms If such an object fi le uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object fi le is unrestricted, regardless of whether it is le- gally a derivative work.
  • Page 116 Third Party Copyrights and License Terms license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients‘ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.

  • Page 117: Stlinux Licenses

    Third Party Copyrights and License Terms If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).

  • Page 118: Portable Sdk For Upnp Devices

    Third Party Copyrights and License Terms Copyright (C) 2009 Free Software Foundation, Inc. Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. This GCC Runtime Library Exception („Exception“) is an additional permission under section 7 of the GNU General Public License, version 3 („GPLv3“).

  • Page 119: Expat Xml Parser

    Third Party Copyrights and License Terms Copyright (c) 2000-2003 Intel Corporation All rights reserved. Redistribution and use in source and binary forms, with or without modifi cation, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright notice, this list of conditions and the following disc- laimer.

  • Page 120: Open Ssl

    Third Party Copyrights and License Terms this permission notice appear in supporting documentation, and that the name of Keith Packard not be used in adverti- sing or publicity pertaining to distribution of the software without specifi c, written prior permission. Keith Packard makes no representations about the suitability of this software for any purpose.
  • Page 121 Third Party Copyrights and License Terms This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written so as to conform with Netscapes SSL. This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code;...
  • Page 122 For your notes...
  • Page 123 For your notes...
  • Page 124 936.4575/-/VKDT/0713/GB - Technical data subject to change. Internet: www.kathrein.de KATHREIN-Werke KG • Anton-Kathrein-Straße 1 - 3 • P.O. Box 100 444 • 83004 Rosenheim • GERMANY • phone +49 8031 184-0 • Fax +49 8031 184-385...

Table of Contents
