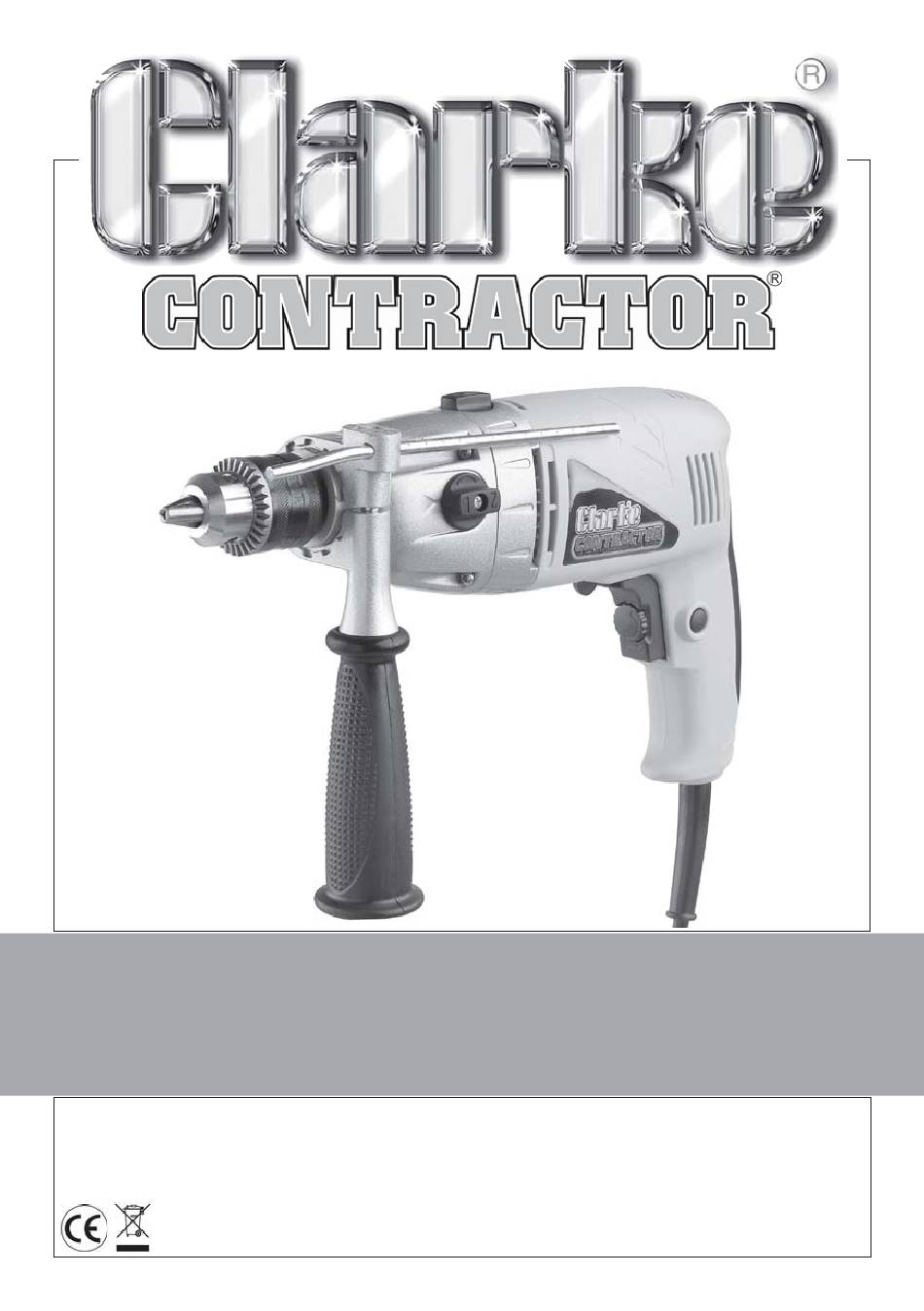

- Page 1 1050 WATT HAMMER DRILL 1050 WATT HAMMER DRILL Model No: CHD1050 Part No: 6480210 USER INSTRUCTIONS 0708...
-
Page 3: Table Of Contents
Waste electrical products should not be disposed of with household waste. Please dispose of at your local recycling facility. Please Note that details and specifications herein, are correct of time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. Copyright CLARKE International All rights Reserved 2006. -
Page 4: General Safety Precautions
GENERAL SAFETY PRECAUTIONS WARNING: PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING As with all machinery, there are certain hazards involved with their operation and use. Exercising respect and caution will considerably lessen the risk of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator or damage to property, may result. -
Page 5: Additional Safety Precautions
GENERAL SAFETY PRECAUTIONS CONTINUED • ALWAYS keep your proper footing and balance at all times DO NOT over reach. For best footing wear rubber soled footwear. Keep floor clear of oil, scrap wood etc. • ALWAYS use recommended accessories, the use of improper accessories could be hazardous. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS This product is provided with a standard 13 amp, 230 volt (50Hz) BS1363 plug, for connection to a standard, domestic electrical supply. Should the plug need replacing at any time, ensure that a plug of identical specification is used. WARNING: This appliance is double insulated. -
Page 7: Technical Specification
TECHNICAL SPECIFICATION Description: Model No: ..................CHD1050 Part No: ....................6480210 Product Specification: Typical applications: ........General Drilling/Masonry Drilling Operating modes: ............Drill/Drill & Hammer Chuck Capacity: ........2mm - 13mmØ Keyless Operation Rotational Speeds: Speed 1: ....... 1200 RPM Speed 2: ....... -
Page 8: Setup & Operation
SETUP AND OPERATION 1. Trigger 2. Variable Speed Control 3. Forward/Reverse Control 4. Trigger Lock Button 5. Speed Selection 6. Drill/Hammer Drill Selection 7. Chuck 8. Auxiliary Handle BEFORE plugging into the mains supply briefly pull the trigger and release to ensure the drill trigger lock is not set in the ‘lock’... -
Page 9: Maintenance
• If excessive sparking or speed faults accur consult your CLARKE dealer. Please note that the chuck is not designed to be changed. It is secured by a single centre screw which has a LEFT HAND THREAD, and is glued into place . -
Page 10: Hand Arm Vibration Explanation
HAND-ARM VIBRATION Employers are advised to refer to the HSE publication “Guide for Employers”. All hand held power tools vibrate to some extent, and this vibration is transmitted to the operator via the handle, or hand used to steady the tool. Vibration from about 2 to 1500 herz is potentially damaging and is most hazardous in the range from about 5 to 20 herz. - Page 11 NOTES...
