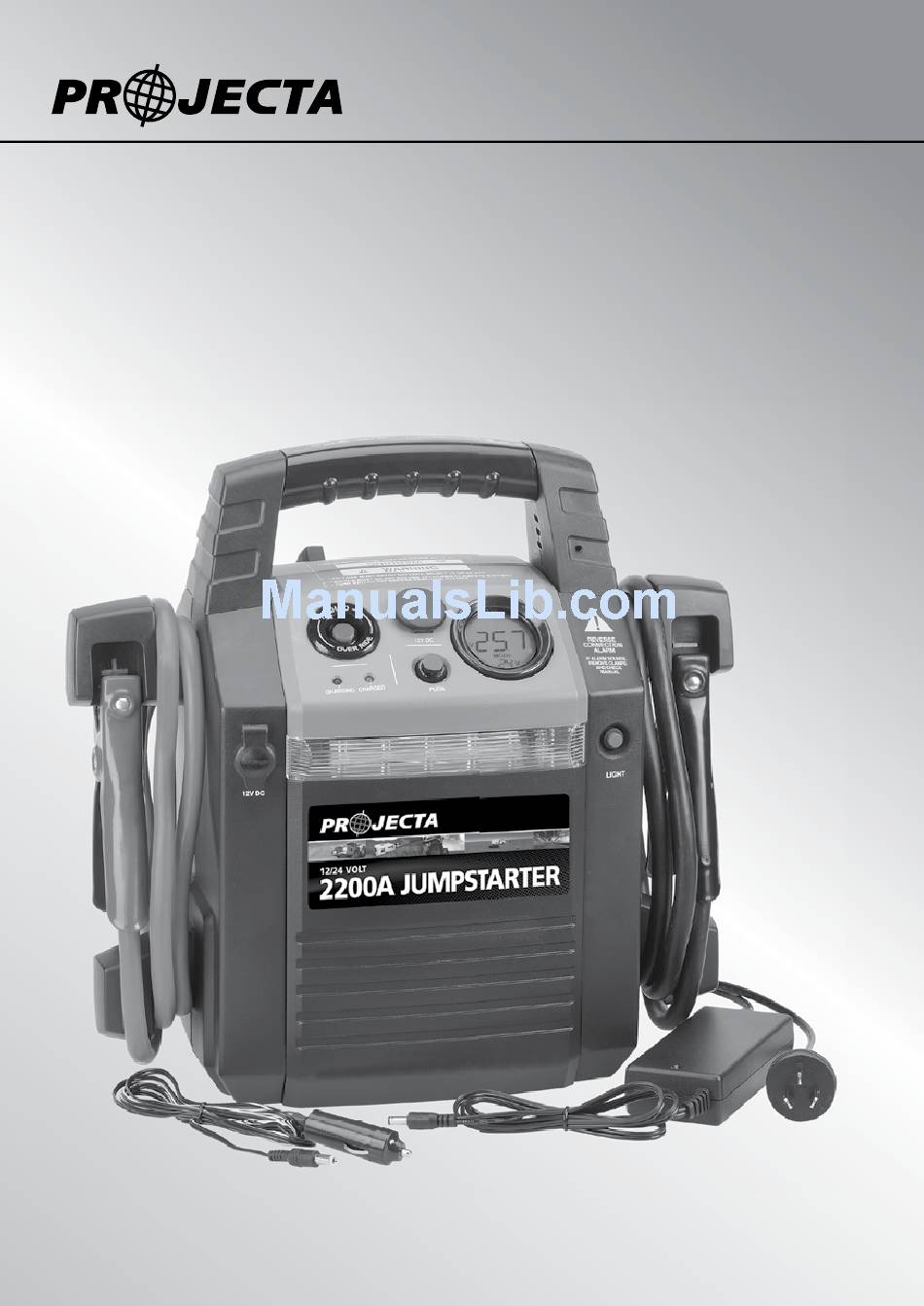

- Page 1 2 x 22 AMP HOUR HIGH PERFORMANCE JUMPSTARTER P/No.s HP2012, HP2200...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read this manual thoroughly before use and store in a safe place for future reference. WARNINGS • Risk of explosive gas. Working in the vicinity of a lead-acid battery can be dangerous. Batteries release explosive gases during normal operation, charging and while jumpstarting a battery. - Page 3 FEATURES ENGINE STARTING CAPABILITIES HP2012 The HP2012 is suitable for starting 12V vehicles. 12V: Petrol vehicles up to 6 litres and diesel vehicles up to 4.5 litres HP2200 The HP2200 is suitable for starting both 12V and 24V vehicles. 12V: Petrol vehicles up to 6 litres and diesel vehicles up to 4.5 litres 24V: Petrol &...
- Page 4 HIGH PERFORMANCE BATTERY High quality AGM battery delivers instant starting power to vehicles. Maintenance free and fully sealed battery ensures convenience and safety. 240V AND 12V RECHARGING 4A adaptor allows recharging from a 240 Volt AC outlet. The DC lead allows charging from either the 12V or 24V accessory socket. 5 STAGE AUTOMATIC CHARGE CONTROL Both the HP2012 and HP2200 feature in-built 5 stage charge control that delivers a complete and thorough charge to the jumpstarter batteries in both 240VAC and...
-
Page 5: Specifications
SPECIFICATIONS Part No. HP2012 HP2200 Battery Battery Capacity 2 x 12V 22Ah AGM 2 x 12V 22Ah AGM Battery Short Circuit Current 2000A 2200A at 12V,1100A at 24V Clamp Output 600A 640A at 12V, 500A at 24V 12V DC Power outlets Accessory Socket Heavy Duty Accessory Socket Protection... -
Page 6: Product Overview
PRODUCT OVERVIEW Image of HP2200 (HP2012 not shown) Battery Voltage 10A Accessory Status Button Socket LCD Digital Override Display Button High current & low Reverse Polarity voltage protection Protection & Alarm Automatic 5 Stage Charging L.E.D 20A Heavy Duty Work Light Accessory Socket Heavy-Duty Fully Insulated Leads... - Page 7 VEHICLE JUMPSTARTING INSTRUCTIONS NOTE: Instructions for negatively earthed vehicles only 1. Insert supplied fuse into fuse holder below charging socket. 2. Your jumpstarter should be charged for 24 hours prior to first use and as soon as possible after each use. 3.
- Page 8 UNDERSTANDING YOUR JUMPSTARTER STATUS SCREEN DISPLAY SCREEN ILLUMINATION Incorrect Battery Voltage Screen flashing (Scrolling Display) *Example only: Display shows actual battery voltage. Reverse Connection Screen flashing (+/- Alternating) (Scrolling Display) Low Battery Voltage 12V Mode: less than 12.0V (Scrolling Display) 24V Mode: less than 24.0V Low Battery Voltage (Scrolling Display)
- Page 9 ALARM REMEDY Beeping Intermittently Check voltage of battery being jumpstarted. Ensure the jumpstarter voltage is switched to the same voltage as the vehicle being jumpstarted Constantly On Check the jumpstarter clamps are connected correctly to the battery Beeping Intermittently Recharge jumpstarter Beeping Intermittently Recharge jumpstarter OR to override/cancel warning hold the BATTERY STATUS button while the jumpstarter is switched to the off position...
-
Page 10: Charging With Ac Adaptor
CHARGING WITH AC ADAPTOR IMPORTANT: DO NOT POWER ANY APPLIANCE FROM THE JUMPSTARTER WHILE IT IS BEING CHARGED USING THE AC CHARGER. 1. To charge, rotate the switch on the back of the unit to ON AND CHARGING (HP2012) or 12V AND CHARGING (HP2200). 2. - Page 11 CHARGING WITH 12V DC Your Jumpstarter can be recharged from a 12V DC socket. A single-ended accessory plug and lead is included for recharging while driving. 1. To charge, rotate the switch on the back of the unit to ON AND CHARGING (HP2012) and 12V AND CHARGING (HP2200).
-
Page 12: Charge Indicators
L.E.D CHARGE INDICATORS Your jumpstarter unit features two coloured L.E.D’s that illuminate various signals to indicate different stages of charging. L.E.D L.E.D SIGNAL & STAGES OF CHARGING Bulk Absorption Analysis Recondition Float Charging Solid On Solid On Flashing (Blue) –––––– ––––––... - Page 13 USING THE PROJECTA HP2012/HP2200 JUMPSTARTER AS A POWER SUPPLY These jumpstarter’s utilise 2 x 22Ah AGM batteries and can be used as a power supply by connecting a cigarette lighter or accessory plug into the 12V DC socket at the front of the jumpstarter.
-
Page 14: Checking Battery Capacity
CHECKING BATTERY CAPACITY The jumpstarter is equipped with a LCD DIGITAL DISPLAY. When the BATTERY VOLTAGE STATUS button is pressed the display will indicate the battery voltage level. To check the battery capacity : Step 1 Disconnect any appliance and accessories that might be running from the jumpstarter, as this will effect the reading. -
Page 15: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS Q. How do I work out how long my appliance will run from the Jumpstarter A. When the jumpstarter is fully charged the battery will be able to provide 44 Amp hours of 12V power. If you have an appliance that uses 2.5 Amps and you use it for one hour, you have just used 2.5 Amp hours. - Page 16 Q. Why didn’t my jumpstarter start my vehicle? A. There could be a number of reasons why the jumpstarter did not start your vehicle. Check the following: 1. Ensure the jumpstarter battery is fully charged. Press the INTERNAL BATTERY STATUS button to check the condition of the battery (state of charge). Refer to page 13 (“Checking Battery Capacity”) for further information.
- Page 17 NOTES...
- Page 18 NOTES...
-
Page 20: Warranty Statement
WARRANTY STATEMENT Brown & Watson International Pty Ltd (“BWI”) of 1500 Ferntree Gully Road, Knoxfield, Vic., telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue will under normal use and service be free of failures in material and workmanship for a period of one (1) year from the date of the original purchase by the customer as marked on the invoice.
