Summary of Contents for Projecta HP900

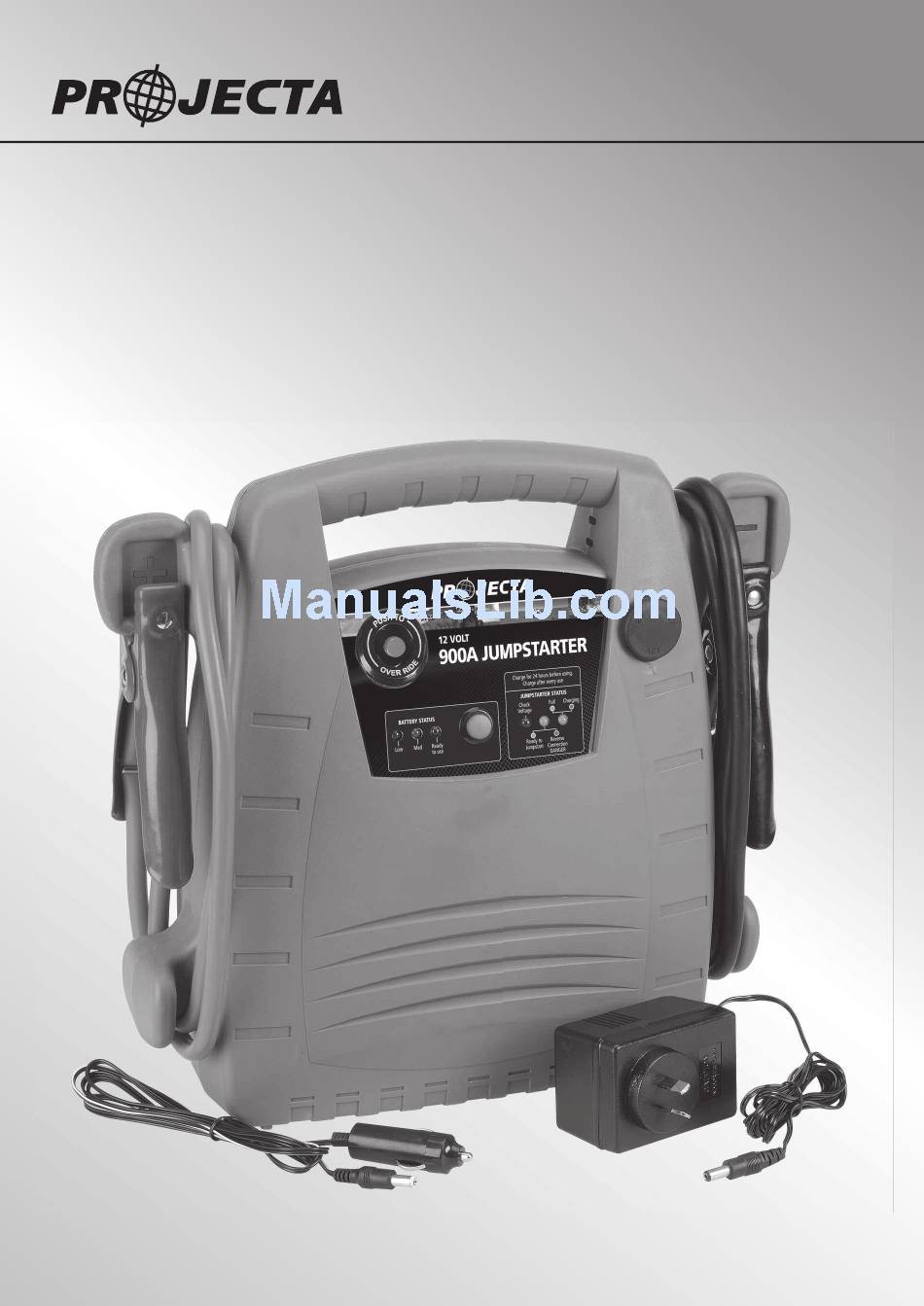

- Page 1 12 VOLT HIGH PERFORMANCE JUMPSTARTER P/No.s HP900, HP1200...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read this manual thoroughly before use and store in a safe place for future reference. WARNINGS • Do not jumpstart 24V batteries. This unit is designed for 12V vehicles only and will not operate when used on 24V vehicles. •... - Page 3 This jumpstarter is designed for starting vehicles that require a clamp output up to 275 Amps (HP900) or 380 Amps (HP1200) to start their motor. In a new and fully charged condition the jumpstarter has enough power to deliver the following number of jumpstarts before needing to be recharged, however it is recommended that the jumpstarter be recharged immediately after each use.
-
Page 4: Specifications
SPECIFICATIONS Part No. HP900 HP1200 Battery Battery Capacity 12V 17Ah AGM 12V 22Ah AGM Battery short circuit current 900A 1200A Clamp output 275A 380A 12V DC Power Outlet Cigarette Lighter Socket Circuit Protection Automatic Resetting Circuit Breaker Automatic Resetting Circuit Breaker... -
Page 5: Product Overview
PRODUCT OVERVIEW Image of HP900 (HP1200 not shown) Automatic Charge Control 12 Volt DC Cigarette Leave connected to the charger Lighter Output without risk of overcharging Automatic overload and Heavy-Duty Fully short circuit protection Insulated Leads 1.2m long, 20mm quality cable... - Page 6 VEHICLE JUMPSTARTING INSTRUCTIONS NOTE: Instructions for negatively earthed vehicles only 1. Charge your jumpstarter for 24 hours prior to first use and as soon as possible after each use. 2. Before making any connections, check the jumpstarter battery status by pressing the red BATTERY STATUS button: Green LED: Ready to use.
-
Page 7: Charging With Ac Adaptor
CHARGING WITH AC ADAPTOR IMPORTANT: DO NOT POWER ANY APPLIANCE FROM THE JUMPSTARTER WHILE IT IS BEING CHARGED USING THE AC CHARGER. 1. To charge, plug the output end of the AC Charger into the charging socket (back of jumpstarter) and connect the Charger to a 240VAC outlet and turn ‘ON’. 2. - Page 8 CHARGING WITH 12V DC Your jumpstarter can be recharged from a 12V DC socket. A single-ended cigarette lighter plug and lead is included for recharging while driving. 1. Connect the 12V charging lead to your vehicle's cigarette lighter socket and to the jumpstarter’s charging socket.
- Page 9 USING THE PROJECTA HP900/HP1200 JUMPSTARTER AS A POWER SUPPLY The jumpstarter utilises a 17Ah AGM battery (HP900) and 22Ah AGM battery (HP1200) and can be used as a power supply by connecting a cigarette lighter plug into the 12V DC socket at the front of the jumpstarter.
-
Page 10: Checking Battery Capacity
CHECKING BATTERY CAPACITY The jumpstarter is equipped with a BATTERY STATUS display. When the BATTERY STATUS button is pressed the LEDs indicate the battery charge level (Low, Med or Ready to Use). BATTERY STATUS LED BATTERY CAPACITY BATTERY VOLTAGE READY TO USE (green) 75–100% Above 12.65V MED (yellow) -
Page 11: Frequently Asked Questions
A. When the jumpstarter is fully charged the battery will be able to provide 17 Amp hours (HP900) and 22 Amp hours (HP1200) of power. If you have an appliance that uses 2.5 Amps and you use it for one hour, you have just used 2.5 Amp hours. -
Page 12: Warranty Statement
WARRANTY STATEMENT Brown & Watson International Pty Ltd (“BWI”) of 1500 Ferntree Gully Road, Knoxfield, Vic., telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue will under normal use and service be free of failures in material and workmanship for a period of one (1) year from the date of the original purchase by the customer as marked on the invoice.
