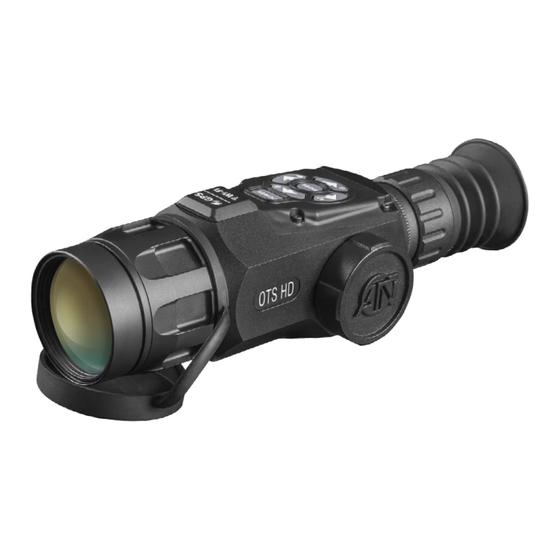

ATN OTS-HD Series Manual

Thermal smart hd monoculars/viewers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OTS-HD Series
THERMAL SMART HD
MONOCULARS/VIEWERS
M A N U A L
OTS-HD USER'S GUIDE (REV. 2, DECEMBER, 2016)
AMERICAN
TECHNOLOGIES
NETWORK
CORP .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OTS-HD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATN OTS-HD Series

Summary of Contents for ATN OTS-HD Series

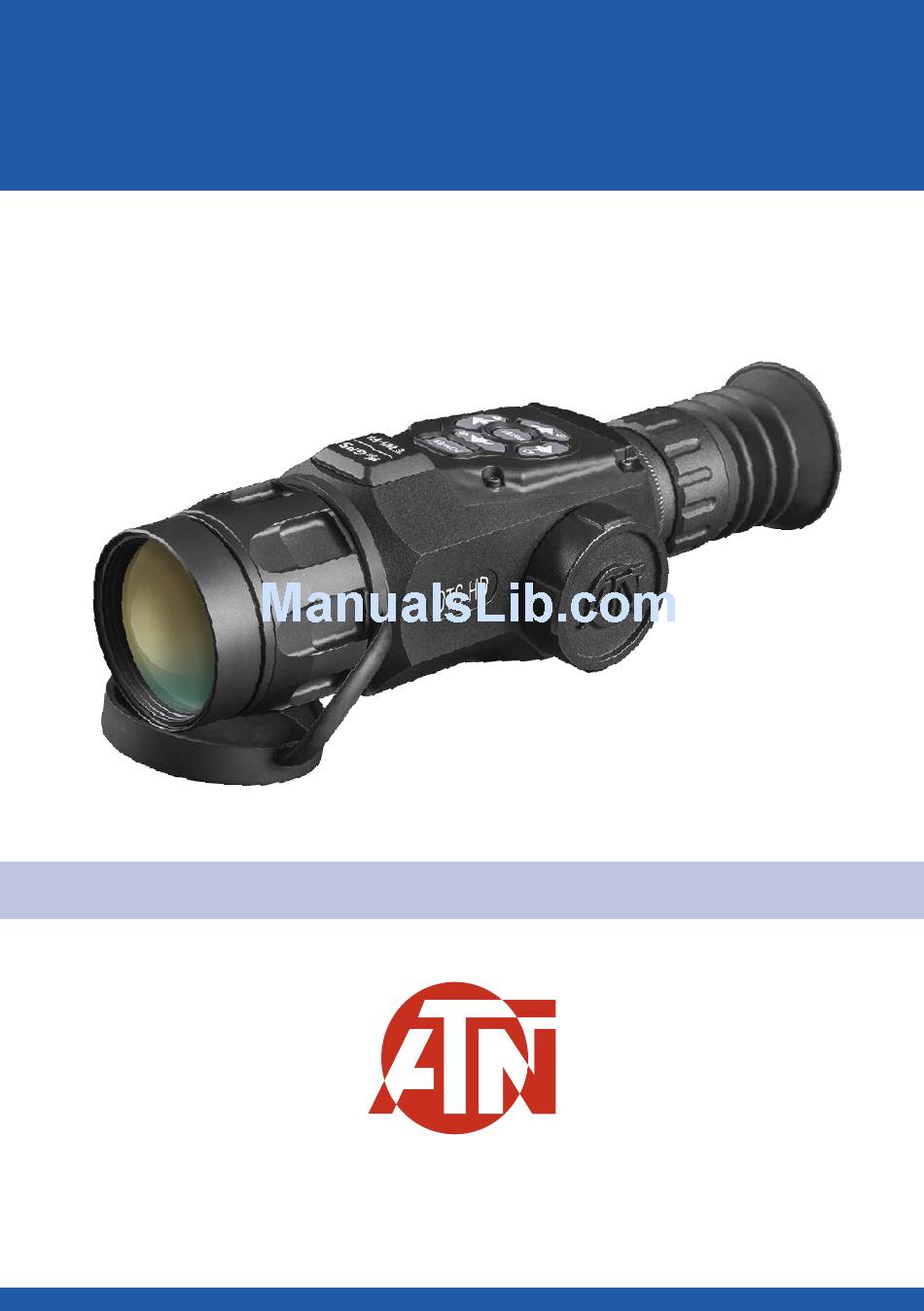

  • Page 1 OTS-HD Series THERMAL SMART HD MONOCULARS/VIEWERS M A N U A L OTS-HD USER’S GUIDE (REV. 2, DECEMBER, 2016) AMERICAN TECHNOLOGIES NETWORK CORP .
  • Page 2 The information in this manual is furnished for informational use only, is subject to change without notice, is not to be construed as a commitment by ATN Corp. ATN Corp. assumes no responsibility or liability for any errors or inaccuracies that may appear in this book. ©2016 ATN Corp. All rights reserved.

  • Page 3: Table Of Contents

    TA B L E O F C O N T E N T S Features .........4 Application .

  • Page 4: Features

    The all new Obsidian “T” II Thermal core beats at the heart of our systems. More power, more features, smaller packaging, and lower cost have allowed ATN to make the biggest update to its award winning thermal product line.

  • Page 7: Preparing The Device

    3. Inspect the device for damage to optical surfaces, body, eyecups, operation buttons, etc. 4. Ensure that all optical surfaces are clean and ready for use. NOTE If any accessories are missing or broken contact ATN’s Customer Service. INSTALLATION OF BATTERIES The OTS-HD will operate on four AA-type batteries. NOTE We highly recommend using lithium AA batteries.

  • Page 8: Firmware Update

    In the event of a power failure during an update the device may crash corrupt- ing its system files and will need to be sent back to the ATN factory for service. It is important not to use additional sources of power during firmware update! Update the new firmware as follows: 1.

  • Page 9: On/Off

    ON/OFF To TURN ON the device press and hold the POWER button until you see the ATN splash screen. To TURN OFF the device press and hold the POWER button, until the dialog box “Shut down the device?”...

  • Page 10: Compass Calibration

    FOCUS ADJUSTMENT FOCUS ADJUSTMENT Remove the cap from the objective lens and RING rotate the focus adjustment ring as necessary to achieve the proper focus at various dis- tances. COMPASS CALIBRATION When the compass needs to be calibrated the word “CAL” appears instead of the Compass Scale.

  • Page 11: Interface

    I N T E R FAC E HOMESCREEN First screen you’ll see after switching on the device is Homescreen. It consist of Scales, Status Bar icons and different Information Widgets. SCALES E-Compass Scale shows yaw angle based on e-Magnetometer data. Roll Scale shows viewer cant based on internal 3D Gyroscope.

  • Page 12: Main Operations

    Display widgets can be dis- abled from the System Menu. To get a System Menu you should click on the CENTER button from Homescreen and access the Shortcut Carou- sel. Then select the wrench icon with RIGHT or LEFT buttons and push CENTER button enter the menu.

  • Page 13: Shortcut Carousel

    NOTE Your recording will automatically stop when the memory card is full or the battery is out of power. SHORTCUT CAROUSEL The CENTER button opens the menu and close it down when pressed again. SHORTCUT CAROUSEL The Carousel is your access to a number of Shortcuts that allows you quick access to your scope’s features.

  • Page 14: Using System Menu

    GPS module Turn ON/OFF GPS.. SYSTEM MENU Allows for access to various system options and adjustments. USING SYSTEM MENU To enter the System Menu you should open Shortcut Car- ousel with CENTER button and select the wrench icon with RIGHT or LEFT buttons Then push CENTER button to enter the menu.
  • Page 15 To change a particular value you should follow next few steps. Select the subcategor y you needed with the UP or DOWN buttons Press the Center button select a particular value (once selected it will turns red). Change the value with the UP and DOWN buttons To select a new value press CENTER button...

  • Page 16: Functions

    F U N C T I O N S PHOTO AND VIDEO MODES Press the LEFT button while staying in Homescreen to TAKE A PHOTO. You must have a Micro SD card inserted in the device for these features to work. All files will be stored on the Micro SD card.
  • Page 17 To make changes choose the Photo/Video Tab in System Menu, then use UP or DOWN buttons to select Time Lapse Settings. Press the Center button enter the mode settings. While you are in this mode, the Time Lapse widget appears. BURST Burst mode captures a series of photos.

  • Page 18: Rangefinder

    Then push CENTER button to enter the menu. You must have a Micro SD card inserted in the device for these features to work. All files will be stored on the Micro SD card. Recorded videos you can find in the Gallery on your device.
  • Page 19 NOTE During the measurement process, you can zoom in and out using standard buttons (UP and DOWN). If the Target Height is incorrect you can change it: • Press the RIGHT button to enter the Menu; • Choose one of the presets or input the height manually;...

  • Page 20: How To Perform A Nuc

    HOW TO PERFORM A NUC NUC’ing is required to improve image quality when the image is degraded by var- ious environmental events. There are multiple NUC tables to span the full operating temperature range, and the camera automatically selects the optimum table based on its temperature. Example: Change of temperature, continues viewing of a particular warm object, movement from one environment to another all may cause image degradation.

  • Page 21: System Menu

    SYS T E M M E N U THERMAL INVERSE HOT — swap the appearance of coldest and hot- test color. PALETTES — the range of colors used in displaying. CONTRAST — the difference in luminance and color that makes an object more distin- guishable.

  • Page 22: Settings

    SLEEP MODE Sleep mode is activated when your scope is not in use for a set period of time (example: 1-60min). During sleep mode the display and some of the sensors will be inactive. To get out of Sleep mode and get back to normal operations just physically move the device or press any of the buttons.

  • Page 23: Servicing

    M O B I L E A P P L I CAT I O N S By utilizing the ATN Obsidian app., you can control your device and view live streaming. Connect a phone or tablet and view everything simultaneously.
  • Page 24 For customer service and technical support, please contact American Technologies Network Corp. 1341 San Mateo Avenue, South San Francisco, CA 94080 phone: 800-910-2862, 650-989-5100 e-mail: service@atncorp.com www.atncorp.com ©2016 ATN Corporation...
