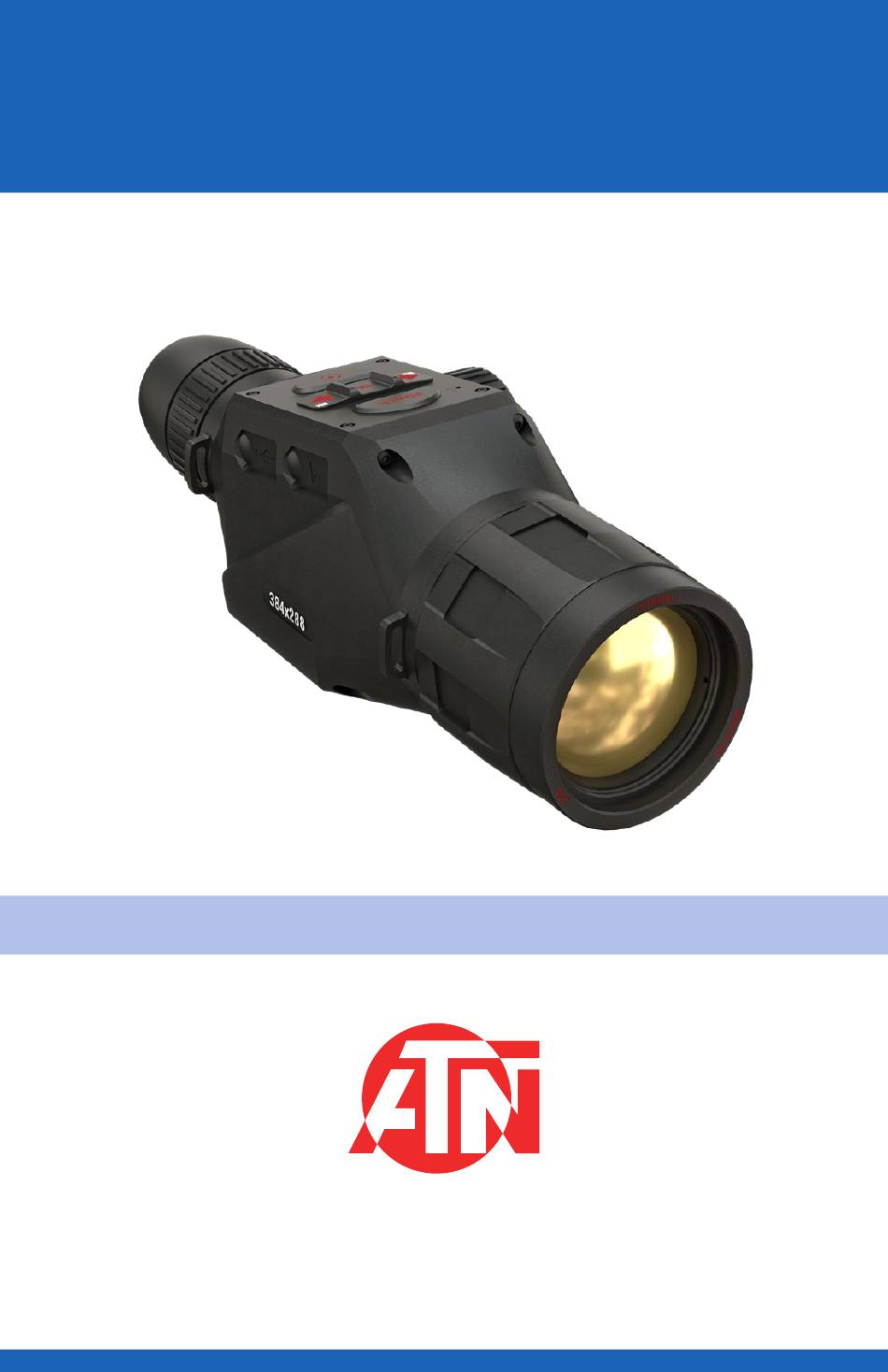

- Page 1 ATN OTS 4T Series THERMAL SMART HD MONOCULAR M A N U A L AMERICAN TECHNOLOGIES NETWORK CORP .
- Page 2 The instructions in this manual are for informational use only and subject to change without notice, this manual is not to be construed as a commitment by ATN Corp. ATN Corp. assumes no responsibility or liability for any errors or inaccuracies that may appear in this book. ©2021 ATN Corp. All rights reserved.
-
Page 3: Table Of Contents
TA B L E O F C O N T E N T S FEATURES ........4 APPLICATION . -
Page 4: Features
ULTRA LOW POWER CONSUMPTION A P P L I CAT I O N ATN has created a new series of thermal monoculars that offers the user a profound new technological experience! The new ATN OTS 4T series delivers a superior value by providing ATN SMART HD features and an improved ther- mal imaging sensor that exceeds expectations. -
Page 7: Preparing The Device
4. Ensure that all optical surfaces are clean and ready for use. NOTE If any accessories are missing or broken contact ATN’s Customer Ser- vice at 1.800.910.2862. CHARGING THE DEVICE The device is equipped with a USB (type C) port. You will find it under the rubber cap on the right side of the device (caps are marked with appropriate icon). -
Page 8: Firmware Update
In the event of a power failure during an update, the device may crash. This will corrupt the system files and the device will need to be sent back to the ATN factory for service. Update the new firmware as follows: 1. -
Page 9: On/Off
15 seconds and the monocular will turn off. ON/OFF To TURN ON the device press and hold the POWER button until you see the ATN splash screen. To TURN OFF the device press and hold the POWER button, until the dialog box “Shut down the device?”... -
Page 10: Mounting On A Tripod
DISTANCE FOCUS FOCUS ADJUSTMENT RING Rotate the Adjustment Ring, as neces- sary, to achieve the proper focus at various distances. MOUNTING ON A TRIPOD The OTS 4T is tripod mountable and can be mounted on tripods with a 1/4” thread mount. COMPASS CALIBRATION When the compass needs to be calibrated, the word “CAL”... -
Page 11: Interface
I N T E R FAC E HOMESCREEN The first screen you’ll see after turning on the device is the Homescreen. It consists of Scales, Status Bar icons and different Information Widgets. VIDEO E-COMPASS STATUS BAR RECORDING (Battery, SD Card, Bluetooth, Wi-Fi) DISTANCE ZOOM LEVEL PITCH... -
Page 12: Main Operations
To enter System Settings you should click the OK button from Homes- creen to access the Short- cut Carousel. Select the wrench icon with RIGHT or LEFT but- tons and push the OK button to enter the Sys- tem Settings menu. Select the Display tab with RIGHT but ton and choo se subcategory... -
Page 13: Modes
NOTE Recording will automatically stop when the memory card is full or the battery is out of power. SHORTCUT CAROUSEL Pressing down on the OK button opens and closes the Shortcut menu. MODES The OTS 4T has 2 modes of ope ration: basic and advanced. Basic Mode has the following feature options: 1. -
Page 14: Using System Settings
WIFI Allows you to connect to your smart phone or tablet; password is atnsmarthd. BLUETOOTH Allows you to connect to ATN Smart accessories, that use Bluetooth, to communicate with your monocular. USING SYSTEM SETTINGS To enter the System Set- tings, open the Shortcut... - Page 15 TAB BAR WITH EXIT BUTTON CATEGORIES SUBCATEGORY VALUE SUB- CATEGORIES HELP INFORMATION On the left side of the Tab Bar you will find the Exit (with arrow icon). Select- ing Exit and pressing the OK button will bring you back to the Homescreen. Movement between the tabs is carried out using the LEFT and RIGHT buttons Each tab includes subcategories.
- Page 16 Change the value with the Scroll Wheel or Keypad buttons To select a new value, press OK button confirm the change.
-
Page 17: Functions
F U N C T I O N S PHOTO MODE From the Homescreen: press the LEFT button to TAKE A PHOTO. NOTE You must have a mi- croSD card inserted in the device for these fea- tures to work, and all files will be stored on the mi- croSD card. -
Page 18: Rangefinder
RANGEFINDER Using the Smart Range Finder will allow you to es- timate the distance to your target, as long as you have reasonable knowledge of the size of your target. NOTE To have this feature enabled you must acti- vate Advance Mode set- tings. -
Page 19: How To Perform A Nuc
HOW TO PERFORM A NUC NUC’ing helps to improve the image quality when the image is degraded by various environmental factors. There are multiple NUC tables that span the full operating temperature range, and the camera automatically selects the optimum table based on its temperature. You can set the system to perform a NUC automatically at a predefined time interval. -
Page 20: System Settings
SYS T E M S E T T I N G S THERMAL CONTRAST — the dif- ference in luminance and color that makes an object more distinguishable. You may adjust the settings to Low/Medium/High. T H ER M A L S EN SITI - VITY —... -
Page 21: Settings
DISPLAY WIDGETS — allows you to disable several widgets (Minimal/Ex- tended). SLEEP MODE • Sleep Mode — allows you to switch the mode (ON/OFF). • Hibernation Time — can be 1 – 60 min. SETTINGS UNITS — can be Metric or Standard system. -
Page 22: Bix Technology
B I X T E C H N O L O GY ABL PAIRING NOTE Make sure you have the Advanced Settings turned on in the Short- cut Carousel before pro- ceeding. • Insert battery into ABL and turn unit on via power switch. -
Page 23: X-Trac Pairing
reticle with the infrared ranging laser. The visi- ble red laser is used as a visual reference point for zeroing. Use the ar- row keys on the keypad to move the reticle to the correct position. • Once the box area of the ABL reticle is cen- tered around the red la- ser, press the OK button... -
Page 24: Warnings And Cautions
All your photos and videos are right at your fingertips. In order to download the latest version of the ATN Obsidian 4 app. Please visit the iOS store or Google Play store. Search for “ATN Obsidian 4” install the application. -
Page 25: Year Product Warranty
ATN, at its option, will either repair or replace the product, and such action on the part of ATN shall be the full extent of ATN’s liability, and the Customer’s sole and exclusive remedy. - Page 26 PRODUCT WARRANTY REGISTRATION In order to validate the warranty on your product, ATN must receive a com- pleted Product Warranty Registration Card for each unit or complete war- ranty registration on our website at www.atncorp.com. Please complete the included form and immediately mail it to our Service Center: ATN Corporation, 1341 San Mateo Avenue, South San Francisco, CA 94080.
- Page 27 Notes...
- Page 28 For customer service and technical support, please contact American Technologies Network Corp. 1341 San Mateo Avenue, South San Francisco, CA 94080 phone: 800-910-2862, 650-989-5100 e-mail: service@atncorp.com www.atncorp.com ©2021 ATN Corporation...
