ATN OTIS-14 Specifications

ATN OTIS-14 Specifications

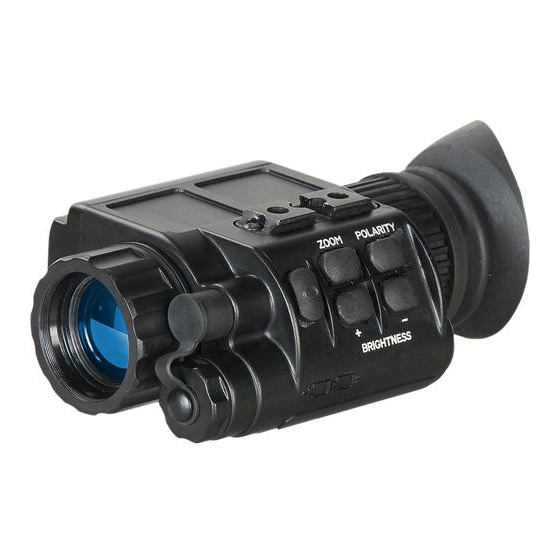

Thermal vision monocular
Hide thumbs Also See for OTIS-14:

Advertisement

Quick Links

The OTIS-14 is a thermal system intended for law en-
forcement, military and commercial uses. It is built
around state of the art uncooled thermal imaging tech-
nology, highly integrated DSP-based electronics and a
compact, light weight system.
The OTIS-14 thermal monocular provides the excel-
lent image quality that is unaffected by lights or shad-
ows that seriously hamper the image quality of image
intensified night vision. Total darkness, camouflage
or bright lights will not affect the sensitivity of these
units.
The included and optional accessories provide for the
versatility of the monocular. You can put it on a head-
set or on a helmet, connected to another monocular to
build a binocular system etc.
The ATN OTIS-14's superior performance, compact
size, comfort of wear and cost efficiency makes it the
perfect thermal imaging device.
THERMAL VISION MONOCULAR
Without OTIS-14
• High resolution digital
thermal imaging
• Compact, light weight and
durable housing
• Lightweight
• Ruggedized Hands
• Free Use Extended
• Head and helmet mountable
• High Quality optics
• Video and computer output
• Video/Image polarity selection,
white-hot or black-hot
• Waterproof
• One Year Warranty
OTIS-14
With OTIS-14

Advertisement

loading
Need help?

Need help?

Do you have a question about the OTIS-14 and is the answer not in the manual?

Questions and answers

Summary of Contents for ATN OTIS-14

  • Page 1 The OTIS-14 is a thermal system intended for law en- forcement, military and commercial uses. It is built around state of the art uncooled thermal imaging tech- nology, highly integrated DSP-based electronics and a compact, light weight system. The OTIS-14 thermal monocular provides the excel-...
  • Page 2: Helmet Mount

    Magnification ...1,8X Objective Focal Length ...25 mm FOV ...11° x 8° Focus Range ...from 1m to infinity Focus Adjustment ...Manual Exit Pupil ...14mm Eye Relief ...25mm Detector Type ...Uncooled Microbolometer Spectral Response ...7-14 μm Pixels ...160 x 120 Pixel Size ...30 x 30 μm Angular Resolution, mrad ...1,2 Thermal Sensitivity ...<...
