ATN NVM14
NVM14 operator'S MaNUal (reV. 8, SepteMBer 2011)
o p e r a t o r ' s m a n u a l
I mpor t ant E xpor t Restric tions ! Commo dities,
products, technologies and ser vices contained in
this manual are subject to one or more of the export
control laws and regulations of the U.S. Government
and they fall under the control jurisdiction of either the
US Department of State or the US BIS-Department
of Commerce. It is unlawful and strictly prohibited to
export, or attempt to export or otherwise transfer or sell
any hardware or technical data or furnish any service
to any foreign person, whether abroad or in the United
States, for which a license or written approval of the
U.S. Government is required, without first obtaining the
required license or written approval from the Department
of the U.S. Government having jurisdiction. Diversion
contrary to U.S. law is prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NVM14 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ATN NVM14

  • Page 1 ATN NVM14 NVM14 operator’S MaNUal (reV. 8, SepteMBer 2011) o p e r a t o r ’ s m a n u a l I mpor t ant E xpor t Restric tions ! Commo dities, products, technologies and ser vices contained in this manual are subject to one or more of the export control laws and regulations of the U.S.
  • Page 2 Corp. atN Corp. assumes no responsibility or liability for any errors or inaccuracies that may appear in this book.
  • Page 3: Safety Summary

    SAFETY SUMMARY CAUTIONS • The ATN NVM-14 is a precision optical instrument and must be handled carefully at all times to prevent damage. • Do not scratch the external lens surfaces or touch them with your fingers. • Wiping demisting shield with lens paper while wet or with wet lens paper can damage the coating.
  • Page 4 EqUIpMENT lIMITATIONS to avoid physical and equipment damage when using the atN NVM-14, carefully read and understand the following safety pre- cautions. • The equipment requires some night light (moonlight, starlight, etc.) to operate. the level of performance depends upon the level of light.
  • Page 5: Table Of Contents

    TAblE OF CONTENTS SECTION TITlE pAgE Safety Summary table of Contents list of Figures list of tables How to Use this Manual Section I General Information equipment Description Mounting procedures operating procedures operational Defects Maintenance appendix a end Item Components appendix B repair parts list Index...
  • Page 6 Mounting camcorder to the atN NVM-14 attaching adapter to atN NVM-14 3.10 attaching atN NVM-14 to Mil-Spec Headmount pair of atN NVM-14 with Dual Bridge adapter on the 3.11 Mil-Spec Headmount 3.12 Mounting 3x and 5x lens to the atN NVM-14 3-10 3.13 Mounting Bi-ocular to the atN NVM-14...
  • Page 7 Select package 1 Select package 2 3x Bi-ocular Kit 2.10 5x Bi-ocular Kit estimated Battery life preventive Maintenance Checks and Service for the atN NVM-14 operator troubleshooting for the atN NVM-14 atN NVM-14 end Item Components atN NVM-14 repair parts list...
  • Page 8: How To Use This Manual

    WARNINGS, CAUTIONS, and NOTES. • Manual Overview the manual contains sections for operating and Maintaining the Multi-Use Night Vision Monocular atN NVM-14. Components of end Item are in Appendix A. repair parts list is in Appendix b.
  • Page 9: Section I

    SECTION I gENERAl INFORMATION...
  • Page 10: Multi-Use Night Vision Monocular

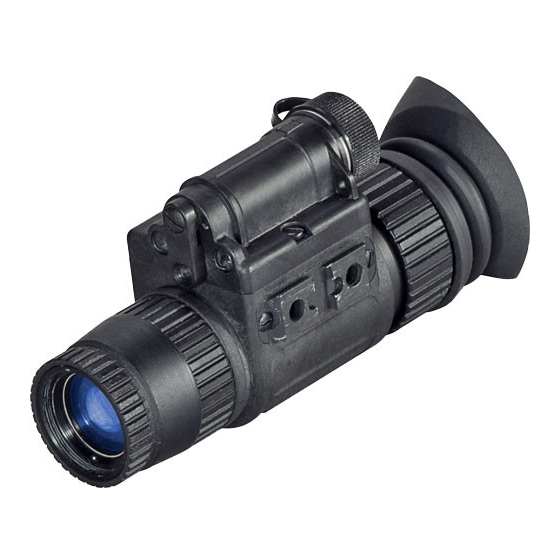

    FIGURe 1.1. ATN NVM-14 - MULTI-USe NIGhT VISION MONOCULAR...
  • Page 11 OF EqUIpMENT to provide the user with the ability to observe at night under moonlight and starlight conditions. the atN NVM-14 can be handheld, head mounted, helmet mounted or weapon mounted to enable walking, surveillance, security, map reading, vehicle maintenance, and administering first aid.
  • Page 12: Warranty Information

    (2) years from the date of acceptance. If item is defective, notify atN or point of purchase contact. 1.3. TEChNICAl INFORMATION For technical information contac t atN Corp. direc tly at (650) 989-5100, or info@atncorp.com or your point of purchase contact.
  • Page 13: Equipment Description

    SECTION II EqUIpMENT dESCRIpTION...
  • Page 14: System Description

    2.1. SYSTeM DeSCRIPTION the atN NVM-14 is a hand-held, head-mounted, helmet-mount- ed, or weapon-mounted night vision system that enables walking, short-range surveillance, map reading, vehicle maintenance, and administering first aid in both moonlight and starlight. each unit al- lows for vertical adjustment (by using head straps), fore-and-aft adjustment, objective lens focus , and eyepiece focus.
  • Page 15: Specification

    - GreeN – serves as an excessive Brightness Indicator. If the bright light remains unchanged for over 10 seconds after the in- dicator turns on, the monocular will automatically shut off. If you move the unit away from the bright/excessive light the unit will turn back on again.
  • Page 16: Atn Nvm-14 Kit Components

    2.3. DeSCRIPTION OF MAJOR COMpONENTS FIGURe 2.1. ATN NVM-14 KIT COMPONeNTS FIGURe 2.2. ATN NVM-14 OPTIONAL COMPONeNTS...
  • Page 17: Atn Nvm-14 Major Components

    TABLe 2.2. ATN NVM-14 MAJOR COMPONeNTS ITEM dESCRIpTION Kit Components Multi-Use Night Vision monocular lens Cap eyecup Soft Carrying Case operator's Manual Battery 123a lithium Battery adapter Neck Cord Optional Components 3X afocal lens 5X lens 8X lens Camera/Camcorder adapter...
  • Page 18: Atn Nvm-14 Accessory Packages

    TABLe 2.3. ATN NVM-14 ACCeSSORY PACKAGeS ITEM # dESCRIpTION aCMpaN14GK Goggle Kit aCMpaN14a1 advanced package 1 aCMpaN14a2 advanced package 2 aCMpaN14S1 Select package 1 aCMpaN14S2 Select package 2 aCMpaN14lS3a 3x afocal lens aCMpaN14lS05 5x lens aCMpaN14lS08 8x lens aCMpaN14Ca Camera adapter...
  • Page 19: Advanced Package 2

    TABLe 2.6. ADVANCeD PACKAGe 2 dESCRIpTION ITeM (FIG. 2.2) Flip-up Head Mount Demist Shield Sacrificial Window Brow pads (2) Shoulder Strap Camera adapter 3x afocal lens Mil Spec. Hard Case Weapon Mount Adapter TABLe 2.7. SeLeCT PACKAGe 1 dESCRIpTION ITeM (FIG. 2.2) Flip-up Head Mount Demist Shield Sacrificial Window...
  • Page 20 6) Battery 123A Lithium a single, 123a lithium battery used to power the unit. 7) Battery Adapter allows the atN NVM-14 to accept the 123a lithium and aa size batteries used to power the unit. 8) Neck Cord OpTIONAl COMpONENTS 1) 3x Afocal Lens attaches to the atN NVM-14 for enhanced range performance;...
  • Page 21 Mil-Spec head mount and adapter which al- lows to attach the NVM14 to the Mil-Spec head mount. 10) D u al Bridg e Ad apte r for M il - S p e c h e admount...
  • Page 22 20) Dual Bridge a Dual Bridge allows using the NVM14 as a pair of dual tube goggles. 21) Bi-ocular Bi-ocular eyepiece in combination with a 3x afocal lens, a 5x lens and a 8x lens convert the NVM14 into a long range ob- servation system.
  • Page 23: Mounting Procedures

    SECTION III MOUNTINg pROCEdURES...
  • Page 24: Attaching Atn Nvm-14 To Head Mount

    A. MOUNTING The ATN NVM-14 TO A hEAdMOUNT to mount the atN NVM-14 to a headmount, perform the following: 1. loosen the screw (a). push the button (B) and insert the rail of the NVM-14 into the socket (C) of the headset.
  • Page 25: Attaching Atn Nvm-14 To Helmet Mount

    B. MOUNTING The ATN NVM-14 TO A heLMeT attachment of atN NVM-14 to a range of ballistic helmets. the Hel- met mount fits securely onto helmet via a rugged strapping device and grooved hooks. With helmet mount, the NVM-14 can be posi- tioned directly in front of user’s eyes or flipped up out of viewing...
  • Page 26: Attaching Atn Nvm-14 To Weapon Mount

    It is recommended that the eyecup be replaced with the eye- guard when used mounted on the weapon. NOTE The ATN NVM-14 is not a weapon sight, however, it can be used in conjunction with a collimated dot sight or laser aiming device.
  • Page 27: Mounting The Atn Nvm-14 To A Scope

    Flip-up Scope adapter Mount. 1. loosen the adapter fixing screws (a). 2. put the insert into the adapter (atN supplies inserts of diffe- rent sizes for their coupling with 38 mm to 43 mm eyepieces). 3. Now attach the monocular to the bracket (B). You can push the...
  • Page 28 Dual Bridge and slide the unit forwards. Dual Bridge allows using the NVM14 with 3x Binocular lens as a pair of dual tube binocular. FIGURe 3.5. MOUNTING OF The DUAL BRIDGe h.
  • Page 29: Mounting Camera To The Atn Nvm-14

    1. Screw Camera adapter into the front lens of a photographic camera with thread M52x0.75 (Figure 3.7) or a video camera with thread M37x0.75 (use adapter ring, Figure 3.8, B) . 2. remove the rubber eyecup off the monocular. FIGURe 3.7. MOUNTING CAMeRA TO The ATN NVM-14...
  • Page 30: Mounting Camcorder To The Atn Nvm-14

    FIGURe 3.9. ATTAChING ADAPTeR TO ATN NVM-14 1. at tach the adapter (Figure 3.9, a) to the rail ( B ) of atN NVM-14. push the clip (C) and slide the rail of monocular into socket (D) of adapter. push the clip until the adapter will...
  • Page 31 FIGURe 3.6. MOUNTING The IR450 4. Dual Bridge adapter for Mil-Spec headmount allows using the NVM14 as a pair of dual tube goggles with Mil-Spec head- mount, MICH or paGSt helmet mount. FIGURe 3.11. PAIR OF ATN NVM-14 WITh DUAL BRIDGe ADAPTeR ON The MIL-SPeC heADMOUNT J.
  • Page 32: Mounting Bi-Ocular To The Atn Nvm-14

    5x and 8x lens requires removing the 1x lens. Unscrew the objective lens and screw 5x or 8x lens to the free place. FIGURe 3.12. MOUNTING 3x, 5x AND 8x LeNS TO The ATN NVM-14 K. BIOCULAR KIT a 3x afocal lens, a 5x lens or a 8x lens in combination with a bi-ocular eyepiece convert the NVM14 into a long range observa- tion system.
  • Page 33: Operating Procedures

    SECTION IV OpERATINg pROCEdURES...
  • Page 34: Estimated Battery Life

    TYpE USAgE Cr123a 60 Hours (Gen. 2+) 50 Hours (Gen.3 and 4) Standard aa 30 Hours(Gen. 2+) 25 Hours (Gen.3 and 4) the atN NVM-14 operates with one Cr123a battery or one aa bat- tery using the battery adapter.
  • Page 35: Cr123A Battery Installation

    With the battery adapter (A) screwed in as shown on Figure 4.1 you may use one Cr123a 3V lithium battery. FIGURe 4.1. CR123A BATTeRY INSTALLATION to install a aa battery, take the battery adapter (a) out of the bat- tery cap (B), turn it over, and screw its smaller threading into the same battery cap.
  • Page 36: Mechanical Functions

    MEChANICAl FUNCTIONS the mechanical functions of the atN NVM-14 allow for differences in the physical features of individual operators and provide for the system operation. these functions include the On/Off/On IR con- trol, eye relief (Section III Mounting procedures), diopter adjust- ment, objective lens focus, and IR illuminator focusing.
  • Page 37: Infrared (Ir) Illuminator Operations

    C. INFRAReD (IR) ILLUMINATOR OPeRATIONS CAUTION The IR illuminator is a light that is invisible to the unaided eye for use during conditions of extreme darkness. Please note that, the light from the illuminator can be detected by others that are using night vision devices. NOTE The purpose of the illuminator is to view at close distance up to 3 meters when additional illumination is needed.
  • Page 39: Operational Defects

    SECTION V OpERATIONAl dEFECTS...
  • Page 40: Shading

    5.1). Shading is very dark and you cannot see an image through it. Shading always begins on the edge and migrates inward eventually across the entire image area. Shading is a high contrast area with a distinct line of demarcation. Contact atN or point of purchase for warranty/repair procedures. SHADING FIGURe 5.1.
  • Page 41: Edge Glow

    (Figure 5.2). to check for edge glow, block out all light by cupping a hand over the lens. If the image tube is displaying edge glow the bright area will still show up. Contact atN or point of purchase for warranty/repair procedures.
  • Page 42: Bright Spots And Emission Points

    If the bright spot remains, return the atN NVM-14. Bright spots usually go away when the light is blocked out. Make sure any bright spot is not simply a bright area in the scene you are viewing.
  • Page 43: Fixed Pattern Noise

    3. BLACK SPOTS. these are cosmetic blemishes in the image intensifier or dirt or de- bris between the lenses. Black spots are acceptable as long as they do not interfere with viewing the image. No action is required if this condition is present unless the spots interfere with the usability of the device.
  • Page 44: Chicken Wire

    5. ChICKeN WIRe. an irregular pattern of dark thin lines in the field of view ei- ther throughout the image area or in parts of the image area (Figure 5.5). Under the worst-case condition, these lines will form hexagonal or square-wave shaped lines. this is typically viewed in high light conditions.
  • Page 45: Maintenance

    SECTION VI MAINTENANCE...
  • Page 46 1. Daily when the NVM-14 is in use. 2. When it is removed from the case for any reason. TABLe 6.1. PReVeNTIVe MAINTeNANCe CheCKS AND SeRVICeS FOR ATN NVM-14 lOCATION ITEM NOT FUNCTION- ITEM...
  • Page 47 lOCATION ITEM NOT FUNCTION- ITEM TO CheCK/SeR- pROCEdURE INg AT OpTIMAl VICE lEVEl IF Check to make sure battery adapter is mis- adapter is present. remove sing, contacts Battery adapter battery adapter and inspect damaged or cor- / Compartment for corrosion, moisture, cor- roded, or o-ring roded or defective contacts, is missing.
  • Page 48 TO CheCK/SeR- pROCEdURE INg AT OpTIMAl VICE lEVEl IF Inspect for dirt, dust, or cor- rosion. Insert the rail of atN NVM-14 into socket to verify Damaged, latch Socket secure attachment of atN won’t work or NVM-14 to headmount. If too loose.
  • Page 49 VICE lEVEl IF Damage or Inspect for dirt, dust, scratch- Sacrificial scratches hinder es, or damage. Window vision with atN If necessary, clean. NVM-14 on. Damage or 3X/5X/8X Inspect optical surface for dirt, scratches hinder Magnifier dust, scratches or cracks.
  • Page 50: Troubleshooting

    If the equipment malfunction is not listed or actions listed do not correct the fault, notify atN or your point of purchase.
  • Page 51 MAlFUNCTION TEST OR INSpECTION CORRECTIVE ACTION 5 light visible Check eye-relief distance. re-adjust for proper around eyecup eye-relief distance. Check eyecup for resiliency. If eyecup is defec- tive, refer to higher level of maintenance. 6 Diopter adjust- Check to see if the diopter ad- If damaged, refer ment cannot justment ring is bent or broken...
  • Page 52 6.3. CLeANING The ATN NVM-14 CAUTION The ATN NVM-14 is a precision optical instrument and must be handled carefully at all times to prevent damage. Do not scratch the external lens surfaces or touch them with your fingers. wiping demisting shield with lens paper while wet or with wet lens paper can damage the coating.
  • Page 53: Removal And Installation Of Browpad

    6.4. hEAdMOUNT MAINTENANCE A. REMOVAl ANd INSTAllATION OF bROwpAd 1. remove old browpad (Figure 6.1) by grasping the headband. 2. replace the browpad by gently pressing on the new browpad and smoothing out any wrinkles in new browpad. FIgURE 6.1. REMOVAl ANd INSTAllATION OF bROwpAd b.
  • Page 54: Removal And Installation Of Chin Cup

    2. replace the chinstrap by using the Velcro tape on the left side of the headband. lace the right straps into their respective sliding bar buckles on the right side of the headband for cor- rect lacing (Figure 6.2). C. REMOVAl ANd INSTAllATION OF ChIN CUp 1.
  • Page 55: Maintenance/Replacement Of The Tube In The Nvm-14

    6.5. TUBe MAINTeNANCe / REplACEMENT 1. Unscrew the eyepiece (e) from the case of device (a). 2. Unscrew the lock ring (D) from the case of device. 3. extract the light guide (C) from the case of device. 4. extract the tube (B) to be replaced from the case of device (a). 5.
  • Page 56: Purge System

    6.6. pURgE SYSTEM 1. remove purge screw (a) from system. 2. Install purge valve into system. 3. open vacuum, draw vacuum on system to a minimum of 0.06 Mpa. Close vacuum port. 4. open nitrogen valve. purge system to a minimum pressure of 0.06 Mpa (gauge).
  • Page 57: End Item Components

    AppENdIx A ENd ITEM COMpONENTS TABLe A1. ATN NVM-14 eND ITeM COMPONeNTS ITEM dESCRIpTION atN NVM-14 Monocular assembly Swing arm Interface, Head/Helmet Weapon Mount operator Manual Demist Shield, eyepiece Soft Carrying Case Sacrificial Window Should Strap Head Mount assembly Brow pad (Small)
  • Page 58: Appendix B Repair Parts List

    AppENdIx b REpAIR pARTS lIST TABLe B1. ATN NVM-14 RePAIR PARTS LIST ITEM dESCRIpTION pART NO. Battery Cap NVM-138 lithium Battery Cr123a aa alkaline Battery M30-044 purge Screw 7B315 Battery adapter NVM-198 lens Cap NVM-178 Sacrificial Window NVM-032 Demist Shield...
  • Page 59: Index

    INdEx A aBBreVIatIoNS, 1-4 M MaGNIFICatIoN, 2-3, 2-8 MaINteNaNCe, IV, 2-2, 2-8, 6-1, b BatterY INStallatIoN, 4-2 6-2, 6-6, 6-7, 6-9, 6-11 BatterY lIFe, 4-2 - HeaDMoUNt, 6-9 BlaCK SpotS, 5-5 - preVeNtIVe, 6-2 BrIGHt SpotS, 5-4 MeCHaNICal FUNCtIoNS, 4-4 MoUNtING proCeDUreS, 3-1, C CaUtIoNS, a, IV 3-2, 4-4...
  • Page 60 800-910-2862, 650-989-5100; fax: 650-875-0129 european Office the following countries can use our toll free number: 00 800 9102-8620 austria, France, Germany, Holland, Italy, Spain, Sweden, Switzerland For other countries, please use 38 048-7770214 or 38 048-7770345 www.atncorp.com info@atncorp.com ©2011 atN Corporation...
