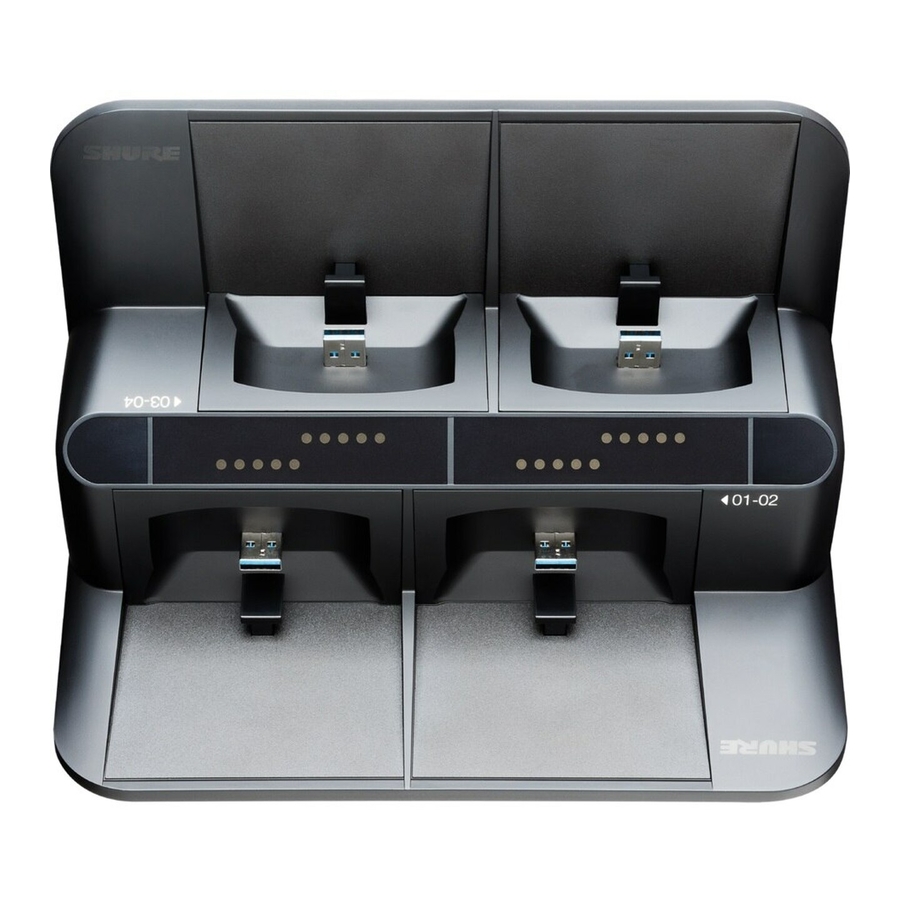

4- and 8-bay networked charging stations
Hide thumbs Also See for SBC450:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
Shure Publications | User Guides | SBC450 SBC850
Publications
›
Download PDF
English

Table of Contents

IMPORTANT SAFETY
INSTRUCTIONS
Networked Charging
Stations
Transmitters
http://pubs.shure.com/guide/SBC450-850/en-US
User Guides
SBC450-850 (English)
›
4- and 8-Bay Networked Charging
Stations
IMPORTANT SAFETY
INSTRUCTIONS
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Allow
sufficient distances for adequate ventilation and
install in accordance with the manufacturer's
instructions.
8. DO NOT install near any heat sources such as open
flames, radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
Do not place any open flame sources on the product.
9. DO NOT defeat the safety purpose of the polarized
or grounding type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wider blade or the third prong are
provided for your safety. If the provided plug does
9/18/17, 8(56 AM
Page 1 of 18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBC450 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shure SBC450

Summary of Contents for Shure SBC450

  • Page 1: Table Of Contents

    Shure Publications | User Guides | SBC450 SBC850 9/18/17, 8(56 AM Publications User Guides SBC450-850 (English) › › SBC450 SBC850 Download PDF 4- and 8-Bay Networked Charging English Stations Table of Contents IMPORTANT SAFETY IMPORTANT SAFETY INSTRUCTIONS INSTRUCTIONS SBC450 and SBC850 Networked Charging 1.
  • Page 2 Shure Publications | User Guides | SBC450 SBC850 9/18/17, 8(56 AM Connecting to an External not fit into your outlet, consult an electrician for Control System replacement of the obsolete outlet. Firmware Updates 10. PROTECT the power cord from being walked on or...
  • Page 3 Shure Publications | User Guides | SBC450 SBC850 9/18/17, 8(56 AM 15. DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with liquids, such as vases, on the apparatus. 16. The MAINS plug or an appliance coupler shall remain readily operable.

  • Page 4: Sbc450 And Sbc850

    Shure Publications | User Guides | SBC450 SBC850 9/18/17, 8(56 AM WARNING: Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel. The safety certifications do not apply when the operating voltage is changed from the factory setting.

  • Page 5: Included Components

    Shure Publications | User Guides | SBC450 SBC850 9/18/17, 8(56 AM Update Utility Included Components PS60 power supply (some models available without power supply) Charger Controls and Connectors Power Press to turn charger on; press and hold Button to turn charger off.
  • Page 6 Shure Publications | User Guides | SBC450 SBC850 9/18/17, 8(56 AM Transmitter reset: Place transmitters in charging docks. Press and hold reset button for five seconds to restore transmitter factory settings. Transmitter mute LEDs = flashing. Power On = Charger is on...

  • Page 7: Power Connections

    Shure Publications | User Guides | SBC450 SBC850 9/18/17, 8(56 AM LED (Amber) Ethernet Off = No network link Status LED On = Network link established (Green) Flashing = Network link active Power Connections 1. Connect power supply to power outlet and charger power input.

  • Page 8: Connecting Shure Devices To

    The Ethernet port LEDs on your device will illuminate to indicate network connectivity. Verify that Shure devices can see each other by looking for the network connectivity icon on the front panel (location varies).

  • Page 9: Monitoring Batteries With

    Shure Publications | User Guides | SBC450 SBC850 9/18/17, 8(56 AM 2. For most applications, use the Automatic mode (default) to let your switch or router assign an IP address using DHCP addressing. If no DHCP server is present, your devices will fall back to a link-local address in the 169.254.xxx.xxx range.
  • Page 10 Shure Publications | User Guides | SBC450 SBC850 9/18/17, 8(56 AM Each tab in the charger panel provides different battery statistics: Charge Displays charge as a percentage of the total battery capacity. Also shows time remaining to full charge. Health...

  • Page 11: Controlling Transmitters With Networked Chargers

    Shure Publications | User Guides | SBC450 SBC850 9/18/17, 8(56 AM Controlling Transmitters with Networked Chargers Quickly review and control many transmitter settings using Wireless Workbench or other external control systems. You can adjust the following settings: Mute button and mute LED behavior or brightness...
  • Page 12 Shure Publications | User Guides | SBC450 SBC850 9/18/17, 8(56 AM 1. Place transmitters on charger. Check that charger is connected to network and to Wireless Workbench. 2. Open the Item  Properties for the networked charger in Wireless Workbench. 3. Select one or multiple transmitters.

  • Page 13: Connecting To An External

    Shure Publications | User Guides | SBC450 SBC850 9/18/17, 8(56 AM 4. Make changes to transmitter settings and click Apply. Transmitters are now ready to use. Connecting to an External Control System SBC450 and SBC850 networked charging stations connect to external control systems such as AMX or Crestron via the Ethernet.

  • Page 14: Sbc450 Sbc850

    Shure Publications | User Guides | SBC450 SBC850 9/18/17, 8(56 AM 3. Download updates and click Send Updates. Model Variations All include power supply unless otherwise noted. Region Model United States SBC450-US or SBC850-US Argentina SBC450-AR or SBC850-AR Brazil SBC450-BR or SBC850-BR...
  • Page 15 Molded Plastic, Cast Zinc Alloy Dimensions SBC450 82.1 mm x 224.4 mm x 192 mm (3.23 in. x 8.83 in. x 7.56 in.), H x W x D SBC850 82.1 mm x 392 mm x 192 mm (3.23 in. x 15.43 in.
  • Page 16 Shure Publications | User Guides | SBC450 SBC850 9/18/17, 8(56 AM the RCM marking, the KC marking, and the electrical ratings. Meets requirements of the following standards: EN55032, EN55103-2, EN60065, Korea KN32/35, IEC60065. EN55032 EN55103-2 EN60065 Korea KN32/35 IEC60065 Information to the user...
  • Page 17 Never put batteries in mouth. If swallowed, contact your physician or local poison control center Do not short circuit; may cause burns or catch fire Do not charge or use battery packs other than Shure rechargeable batteries Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.
  • Page 18 Shure Publications | User Guides | SBC450 SBC850 9/18/17, 8(56 AM WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. Please follow your regional recycling scheme for batteries, packaging, and electronic waste.
