Summary of Contents for Shure SBC450

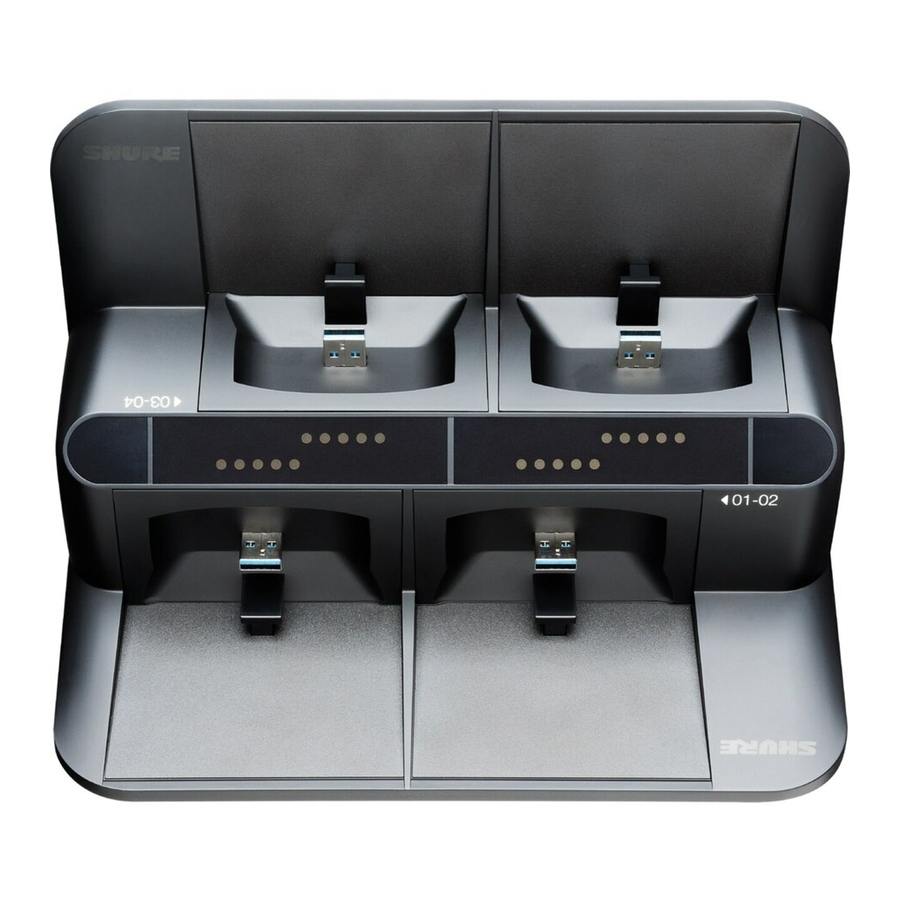

- Page 1 SBC450 SBC850 4- and 8-Bay Networked Docking Stations Complete user guide for SBC450 and SBC850 networked docking stations. Version: 3.2 (2021-E)
-
Page 2: Table Of Contents
Shure Incorporated Table of Contents Monitoring Batteries with Wireless Workbench SBC450 SBC850 4- and 8-Bay Networked Docking Sta- tions Controlling Transmitters with Networked Docking Sta- tions IMPORTANT SAFETY INSTRUCTIONS Connecting to an External Control System General Description Firmware Updates Features... -
Page 3: Sbc450 Sbc850 4- And 8-Bay Networked Docking Sta- Tions
Shure Incorporated SBC450 SBC850 4- and 8-Bay Networked Docking Stations IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions. -
Page 4: General Description
General Description SBC450 and SBC850 networked docking stations provide monitoring, control, and power to charge 4 or 8 ULXD6 and ULXD8 transmitters with Shure rechargeable batteries. Connect to a network to adjust transmitter settings and monitor rechargeable ®... -
Page 5: Controls And Connectors
Shure Incorporated Controls and Connectors ① Power Button Press to turn on; press and hold to turn off. ② Reset Button ◦ Docking station reset: Press and hold reset button while simultaneously powering on the docking station to restore facto ry settings. IP addressing will be reset to Automatic. LEDs = solid green. ◦ Transmitter reset: Place transmitters in docks. Press and hold reset button for 5 seconds to restore transmitter factory set... -
Page 6: Power Connections
>25% >50% >75% 100% ⑦ Docking Slots (USB 3.0) Slide any ULXD6 or ULXD8 transmitter with a Shure rechargeable battery into a slot to begin charging. ⑧ Ethernet Link Speed LED (Amber) ◦ Off = 10 Mbps ◦ On = 100 Mbps ⑨... -
Page 7: Connecting Shure Devices To Wireless Workbench
If you have multiple devices to manage, connect each device to a router or network switch. The Ethernet port LEDs on your device will illuminate to indicate network connectivity. Verify that Shure devices can see each other by looking for the network connectivity icon on the front panel (location varies). - Page 8 Shure Incorporated Each tab provides different battery statistics: Charge Displays charge as a percentage of the total battery capacity. Also shows time remaining to full charge. Health Displays health of selected battery as a percentage of the charge capacity of a new battery. Charge capacity (battery life when fully charged) will decline as a result of repeated charge cycles, age, or storage conditions.
-
Page 9: Controlling Transmitters With Networked Docking Stations
SBC450 and SBC850 networked docking stations connect to external control systems such as AMX or Crestron via the Ether net. Use only one controller per system to avoid messaging conflicts. For a comprehensive list of command strings, visit the ULX-D product page at https://www.shure.com. • Connection: Ethernet (TCP/IP; SBC450 or SBC850 is the client) • Port: 2202 9/12... -
Page 10: Firmware Updates
Firmware Updates Firmware is embedded software in each component that controls functionality. Periodically, new versions of firmware are devel oped to incorporate additional features and enhancements. To take advantage of design improvements, download new ver sions of the firmware using the Shure Update Utility tool. Download Shure Update Utility at http://www.shure.com/suu. Updating Transmitter Firmware with Docking Station Place transmitters on the docking station and check that docking station is connected to the network. -
Page 11: Specifications
Shure Incorporated Specifications SBC450/SBC850 ULXD6 and ULXD8 Charge Time 15 minutes = 1 hour runtime; 1 hour = 50% charged; 3 hours = 100% charged Network Interface 10/100 Mbps Ethernet Power Requirement 15 V DC @ 4.0 A maximum, supplied by external power supply (tip positive) Housing Molded Plastic, Cast Zinc Alloy Dimensions SBC450 82.1 mm x 224.4 mm x 192 mm ( 3.23 in. x 8.83 in. x 7.56 in.), H x W x D SBC850 82.1 mm x 392 mm x 192 mm ( 3.23 in. x 15.43 in. x 7.56 in.), H x W x D Weight SBC450 1.59 kg ( 3.51 lbs) SBC850 2.67 kg ( 5.89 lbs) -
Page 12: Information To The User
Consult the dealer or an experienced radio/TV technician for help. LICENSING INFORMATION Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements. Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of Shure wireless microphone equipment is the user’s responsibility, and licensability de pends on the user’s classification and application, and on the selected frequency. Shure strongly urges the user to contact the ...
