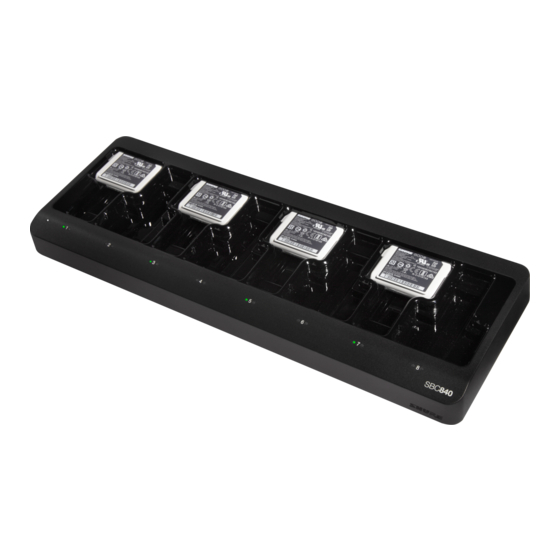

- Page 1 SBC840 8-Bay Networked Charger Complete user guide for the SBC840 8-bay networked charger, which fits SB910 and SB920 batteries. Version: 2.2 (2021-E)
-
Page 2: Table Of Contents
Shure Incorporated Table of Contents Storage Mode SBC840 8-Bay Networked Charger Restoring Factory Settings IMPORTANT SAFETY INSTRUCTIONS Connecting Shure Devices to Wireless Workbench WARNING Configuration Tips General Description Monitoring Batteries with Wireless Workbench Features Charger Network Settings Furnished Accessories Connecting to an External Control System... -
Page 3: Sbc840 8-Bay Networked Charger
Shure Incorporated SBC840 8-Bay Networked Charger IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions. -
Page 4: Warning
General Description The SBC840 networked charger provides a compact charging and storage solution for any combination of up to 8 SB910 or SB920 batteries. The charger is network-enabled to allow for remote monitoring of charger and battery parameters using Shure ®... -
Page 5: Features
Storage mode to prepare batteries for long-term storage • Network-enabled for remote monitoring Furnished Accessories Power supply PS60 Note: Model availability depends on region. See your local Shure dealer or distributor for details. Controls and Connectors ① Power LED ◦ White = Power is on ◦... -
Page 6: Power
Shure Incorporated ② Reset Button Press and hold to restore charger factory settings, including network settings. ③ Storage Mode Button Press and hold to activate storage mode, which charges or discharges batteries to the optimal voltage for longterm stor age. ④ Charging Status LED ◦ Red = Charging ◦ Green = Charging complete ◦ Amber = Battery is in storage mode ⑤... -
Page 7: Power Save Mode
Shure Incorporated The charger has no power switch. When plugged in, the power LED illuminates. The charging LEDs illuminate after batteries are inserted. Power Save Mode Use power save mode to charge batteries with the charger’s network functionality off. Disconnect the power cable from the AC power outlet. Press and hold storage while reconnecting to the AC power outlet. -
Page 8: Storage Mode
Error LED amber flashing Check the temperature. If the battery temperature is above 60°C or below 0°C, the error LED flashes. Contact Shure service. Battery may be discharged beyond recovery or have internal problems. Replace battery. Charge status LED red Battery too warm. -
Page 9: Restoring Factory Settings
If you have multiple devices to manage, connect each device to a router or network switch. The Ethernet port LEDs on your device will illuminate to indicate network connectivity. Verify that Shure devices can see each other by looking for the network connectivity icon on the front panel (location varies). -
Page 10: Charger Network Settings
IP address, view the MAC address, and view firmware version. Connecting to an External Control System The SBC840 networked charging station connects to external control systems such as AMX or Crestron via the Ethernet. For a comprehensive list of command strings, visit the product page at https://www.shure.com. -
Page 11: Certifications
Network Addressing Capability DHCP or Manual IP address Certifications Meets essential requirements of all applicable European Directives. Eligible for CE marking. The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance Authorized European representative: Shure Europe GmbH Global Compliance Jakob-Dieffenbacher-Str. 12... -
Page 12: Information To The User
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Note: EMC conformance testing is based on the use of supplied and recommended cable types. The use of other cable types may degrade EMC perfor mance. Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equipment. 臺灣進口商資訊：益誠國際驗證股份有限公司/臺北市中山區長安東路2段108號7樓之5 12/13... - Page 13 Shure Incorporated 13/13...
