- Page 1 SBC203 Battery Charger User guide for Shure SBC203 battery charger. Version: 3 (2020-G)
-
Page 2: Table Of Contents
Shure Incorporated Table of Contents Included Components SBC203Battery Charger Linking Chargers WARNING Charging Note: Specifications SBC203 Charger Features Certifications... -
Page 3: Sbc203Battery Charger
EMC performance. • Use this battery charger only with the Shure charging modules and battery packs for which it is designed. Use with other than the specified modules and battery packs may increase the risk of fire or explosion. -
Page 4: Sbc203 Charger

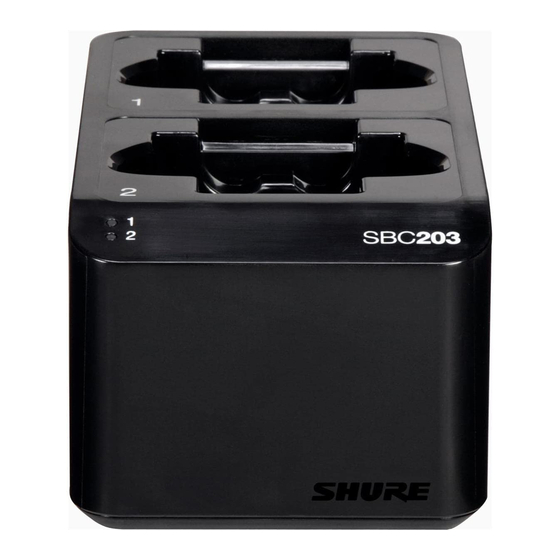

Shure Incorporated SBC203 Charger The SBC203 two-bay charger holds two SB903 batteries or compatible transmitters. It may be used in any appropriate location with adequate space and ventilation. Features • Charge up to two SB903 batteries or compatible transmitters •... -
Page 5: Charging
Shure Incorporated Charging To charge, place batteries into the charging bays with slotted sides down, or insert transmitters into the charging bays with the display facing forward. The LEDs illuminate to indicate battery status. IMPORTANT: Always insert transmitters facing forward to avoid damage... -
Page 6: Specifications
* If an error occurs when a transmitter is docked in the charger, remove the battery from the transmitter and place directly into the charger. If the error persists, contact Shure Technical Support. Note: Store batteries in the charger or in a proper container. To protect terminals from shorting, DO NOT place batteries in a box or pocket with metal objects such as nails, screws, or keys. -
Page 7: Certifications
Shure Incorporated External Power Supply SBC10-USB15W or SBC10-USB15WS Power Requirements 5 V DC, 3 A max. Charging Temperature Range for Battery 0 °C to 45 °C (32 °F to 113 °F) Dimensions 66 x 99 x 165 mm (2.6 x 3.9 x 6.5 in.), H x W x D... - Page 8 Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equipment. Please consider the environment, electric products and packaging are part of regional recycling schemes and do not belong to regular household waste.
