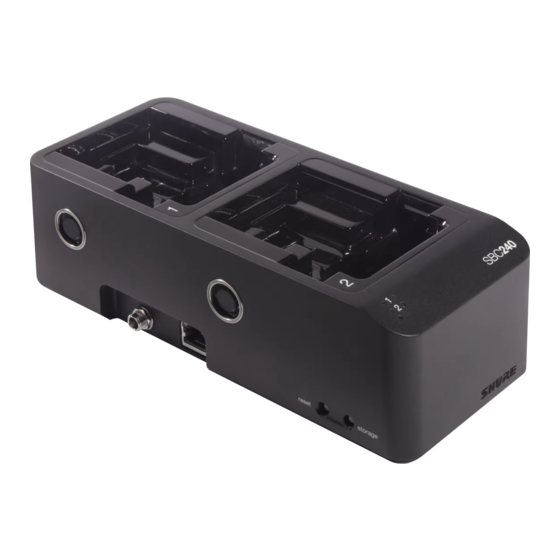

- Page 1 SBC240 2-Bay Networked Charger Complete user guide for the SBC240 2-bay networked charger, which can charge ADX1, ADX2, and ADX2FD transmitters, or SB910 and SB920 batteries. Version: 2.1 (2020-K)
-
Page 2: Table Of Contents
Shure Incorporated Table of Contents Storage Mode SBC240 2-Bay Networked Charger Restoring Factory Settings IMPORTANT SAFETY INSTRUCTIONS Connecting Shure Devices to Wireless Workbench WARNING Configuration Tips General Description Monitoring Batteries with Wireless Workbench Features Charger Network Settings Furnished Accessories Connecting to an External Control System... -
Page 3: Sbc240 2-Bay Networked Charger
Shure Incorporated SBC240 2-Bay Networked Charger IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions. -
Page 4: Warning
Note: Model information and power ratings are labeled on the bottom of the unit. General Description The SBC240 networked docking charger provides a compact charging and storage solution for any combination of 2 SB910/ SB920 batteries or ADX1, ADX2, or ADX2FD transmitters using Shure rechargeable batteries. The charger is network-enabled ®... -
Page 5: Furnished Accessories
Power supply PS60 Allen wrench 95A28936 Screw 30B28875 Note: Model availability depends on region. See your local Shure dealer or distributor for details. Controls and Connectors ① Power LED ◦ White = Power is on ◦ Red = Charger is in storage mode ②... -
Page 6: Power
Shure Incorporated ④ Charging Status LED ◦ Red = Charging ◦ Green = Charging complete ◦ Amber = Battery is in storage mode ⑤ Error LED Flashes amber to indicate a problem charging batteries. Errors are also displayed in Wireless Workbench. See LED Indica tors for details. ⑥ Charging Slots Charges any combination of 2 SB910 or SB920 batteries or ADX1, ADX2, or ADX2FD transmitters. -
Page 7: Adding A Charger
Repeat above steps to connect up to 4 chargers. Connect DC power cable and Ethernet cable to the inputs on the side of the charger. Note: A maximum of 4 chargers can share power and network connectivity. Only connect SBC240 chargers to the charger connectors. 7/14... -
Page 8: Charging
Shure Incorporated Charging To charge, place batteries and transmitters into the charging bays as shown. The LEDs illuminate to indicate battery status. Warning: Do not insert transmitters using AA batteries. LED Indicators Color State Charge status LED red Charging Charge status LED green... -
Page 9: Storage Mode
Error LED amber flashing Check the temperature. If the battery temperature is above 60°C or below 0°C, the error LED flashes. Contact Shure service. Battery may be discharged beyond recovery or have internal problems. Replace battery. Error LED amber steady on 4 chargers Too many chargers (more than 4) are connected to each other. Remove ad... -
Page 10: Restoring Factory Settings
If you have multiple devices to manage, connect each device to a router or network switch. The Ethernet port LEDs on your device will illuminate to indicate network connectivity. Verify that Shure devices can see each other by looking for the network connectivity icon on the front panel (location varies). -
Page 11: Charger Network Settings
To adjust charger network settings, open the charger properties panel in Wireless Workbench. Click the gear icon to set the IP mode and IP address, view the MAC address, and view firmware version. Connecting to an External Control System The SBC240 networked charger connects to external control systems such as AMX or Crestron via the Ethernet. For a com prehensive list of command strings, visit pubs.shure.com/guide/SBC240. • Connection: Ethernet (TCP/IP; SBC240 is the client) •... -
Page 12: Specifications
Shure Incorporated Warning: Only charge SB910 or SB920 batteries in charger when it is mounted vertically. Do not charge transmitters. Specifications SBC240 Compatible Batteries Up to 2 SB910 or SB920 Compatible Transmitters Up to 2 ADX1, ADX2, or ADX2FD Charge Current 1.25 A maximum... -
Page 13: Certifications
DHCP or Manual IP address Certifications Meets essential requirements of all applicable European Directives. Eligible for CE marking. The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance Authorized European representative: Shure Europe GmbH Headquarters Europe, Middle East & Africa Department: EMEA Approval Jakob-Dieffenbacher-Str. -
Page 14: Information To The User
Note: EMC conformance testing is based on the use of supplied and recommended cable types. The use of other cable types may degrade EMC perfor mance. Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equipment. Please consider the environment, electric products and packaging are part of regional recycling schemes and do not belong to regular household waste.
