1. Technical parameters
- Dimensions
- Weight
- Operating position
- Operating condition
- Power supply
VoIP
Ethernet – 10/100Mb with standard BaseT and 100BaseTx, connector RJ45
•
SIP connection: P2P or IPPBX SIP server – tested with Cisco Call Manager, Alcatel OMNI PCX, Asterisk,
•
Nexspan, Panasonic...
2 VoIP channels (2 IP addresses)
•
Codec audio : G711u, G711a, G726, GSM
•
VAD (Echo cancellation)
•
Protocols: IP, TCP, UDP, http, TELNET, SIP, RTP
•
Web server for remote management
•
WEB – firmware upgrade
•
Remote connection with DTMF dial in
•
nd
connection to 2
•
Caller Id number (CLIP)
•
incoming call restriction from GSM network
•
outgoing call restriction to GSM network
•
Priority connection through either the 1
•
Smart Call back – automatic incoming calls routing up CLIP
•
Direct access – assign of IP address to GSM channels
•
Echo canceller – switching ON/OFF
•
OGM* Option module for recording DISA voice message*
•
PIN SIM card protection
•
GSM
GSM 900 (class 4 – 2 W)
•
GSM 1800 (class 1 – 1 W)
•
Antenna connector SME/SMA, 50
•
SIM card: 3/1,8 V
•
2 GSM channels
•
2. Setting operational Mode (P2P or SIP Server)
The Link Gate SIP can be configured in 2 different modes: P2P or SIP Server.
In P2P mode, the Link Gate SIP behaves as a sample GSM gateway. In case of incoming call on the GSM
•
module, the Link Gate SIP will convert it in SIP and transfer it to the SIP server (IPBX). For an out going call,
the Link Gate SIP process a GSM call when SIP call is receives over IP addresses.
In SIP Server mode, the Link Gate SIP acts as a SIP server and allow recording up to 10 IP/SIP phones. It
•
is also possible to register the Link Gate SIP on an existing IPBX.
P2P Mode
Linkcom France
11 rue du Soleil Levant 92140 CLAMART
133 x 233 x 60 mm
850 g
various
temperature: +5°C ÷ +40° C
Humidity: 10% ÷ 80% p i 30° C
9-15V ss or 8-12Vst, 1.5 A
operators after time out (adjustable) for direct dialling in
st
or the 2
nd
GSM module (LCR)
Copyright © 2008 – Linkcom – Tous droit réservés

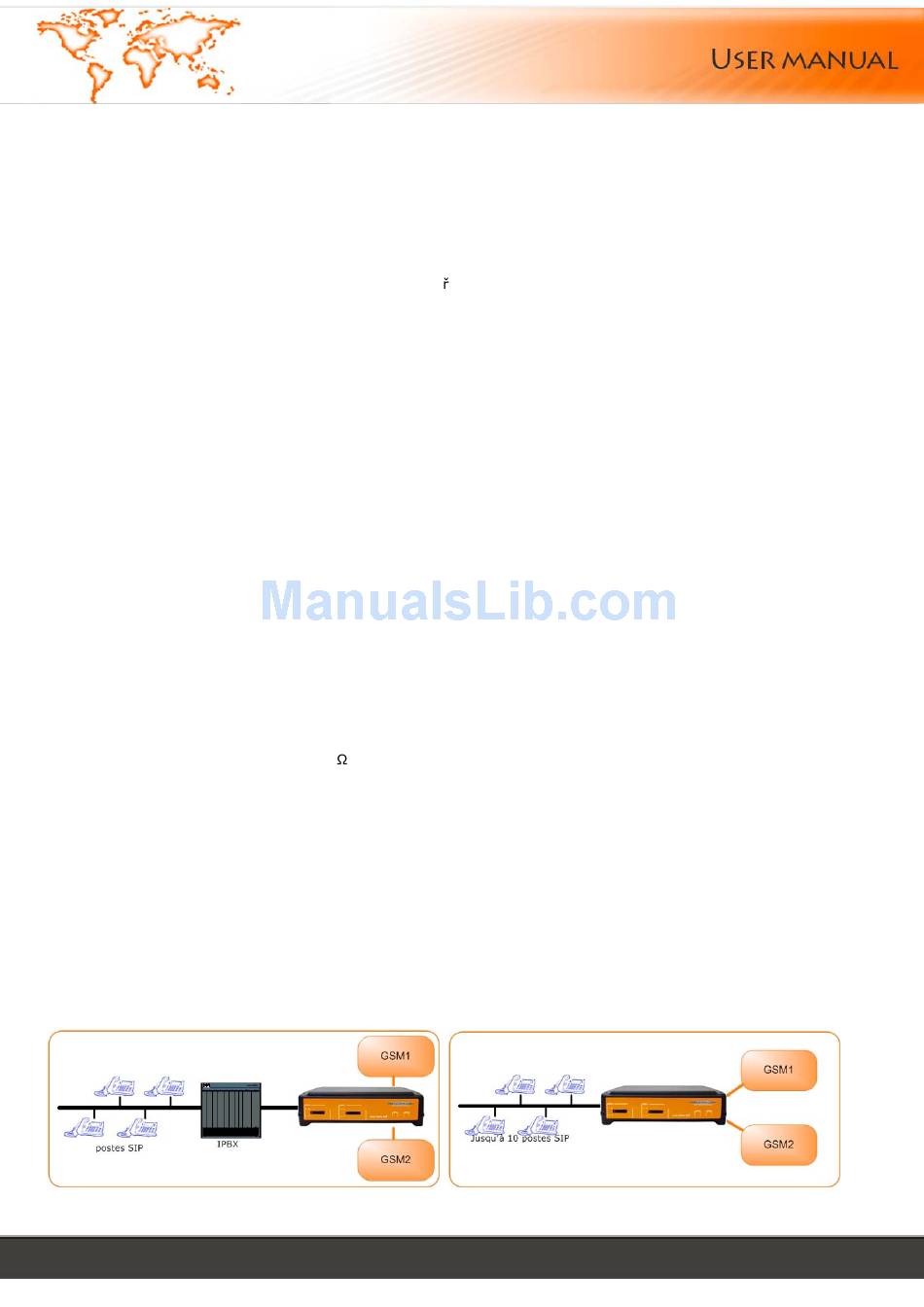

SIP Server Mode
3
