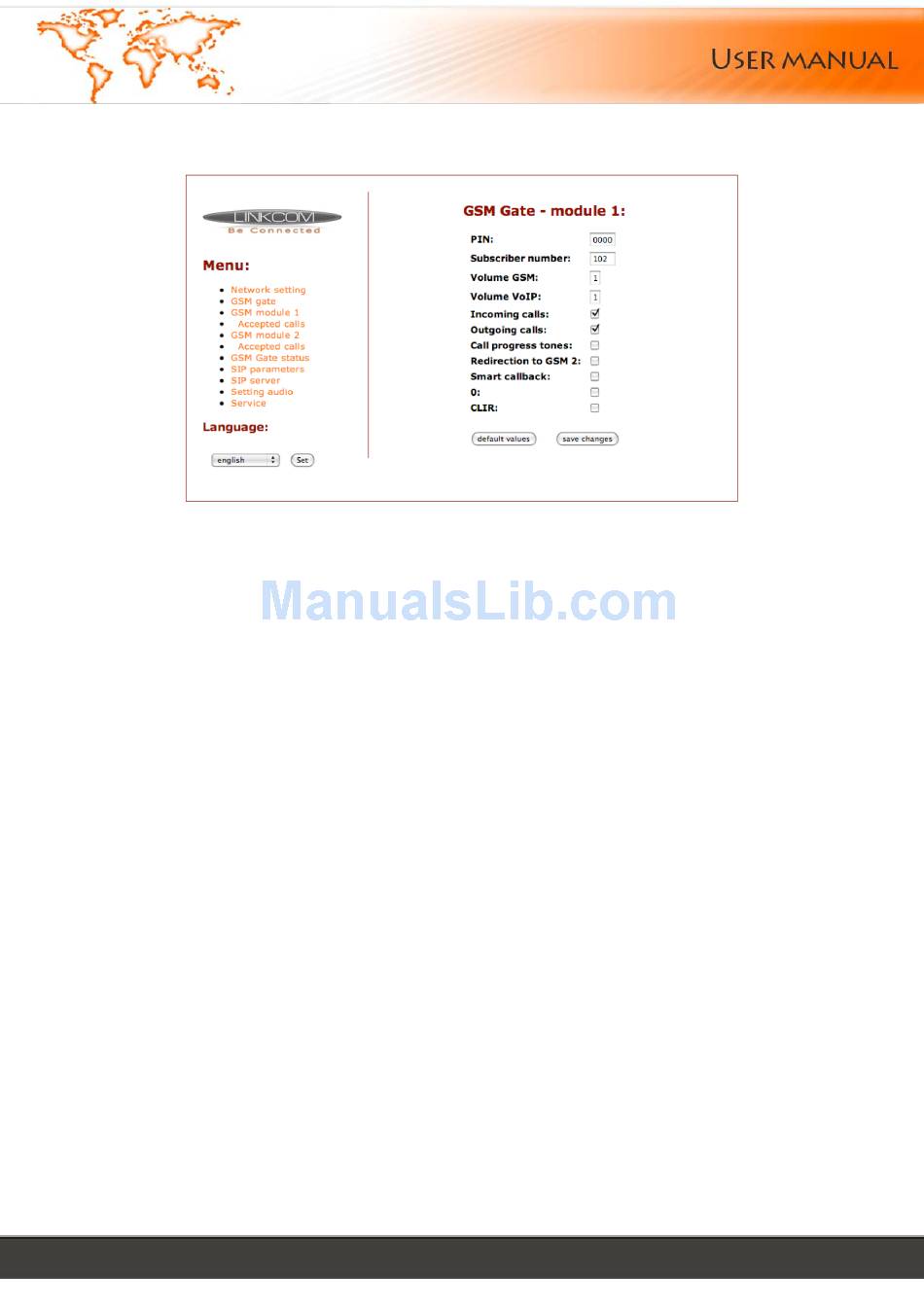

8.2. Module GSM Parameters
PIN:
Set PIN code of SIM card. If no PIN code is used enter "0000".
Subscriber number:
set Subscriber number for Incoming calls
Volume GSM:
Adjust from level 1 to 7 the outgoing voice.
Volume ISDN:
Adjust from 1 to 4 the Incoming voice.
Incoming calls:
Enable incoming calls.
Outgoing calls:
Enable outgoing calls.
Call progress tones:
Warning tone giving after dialling out a phone number.
Redirection to GSM 2:
Smart callback:
Missed or refused outgoing calls are stored in Link Gate SIP with subscribed number.
When called party call back the call is automatically routed to extension which made the call. When connection was
successful data are erased from memory.
0:
It adds automatically 0 before each outgoing dialled number.
Clir:
Switch OFF outgoing CLIP.
8.2. Permitted Calls Menu ( LCR)
Permitted call table (LCR) allow for each GSM module to program up to 12 authorised prefixes (1 to 8 digits). If the
authorised call table is not filled all type of calls are authorised. We can assign for each of the 12 prefixes a group of
Numbers FROM xxxxxxxx To xxxxxxxx. Ex : From 0 to 9.
You can select the for each GSM Permitted table the Operator prefixes corresponding to the SIM card inserted,
Ex : GSM 1 Module (T-Mobil) GSM 2 Module (ORANGE) prefixes corresponding to T-Mobile can be inserted in GSM1
Permitted table and for Orange in GSM2 Permitted table in this way you can benefit of cheaper calls.
Linkcom France
11 rue du Soleil Levant 92140 CLAMART
In case GSM1 channel is busy allow to "overflow" to GSM2 Channel automatically.
Copyright © 2008 – Linkcom – Tous droit réservés
11
