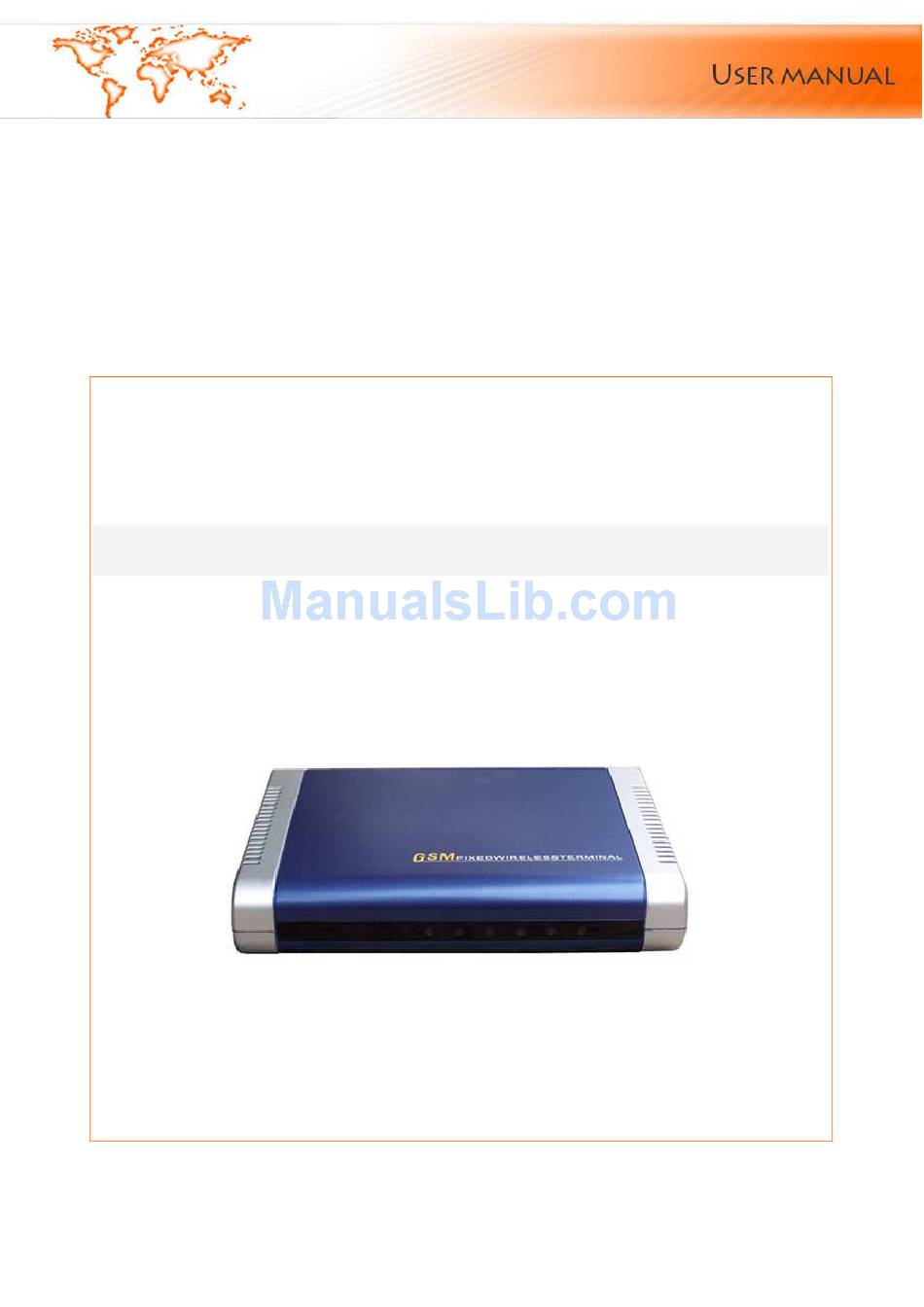

  • Page 1 Analog Fax GSM Gateway Link Gate FAX User manual v1.0...
  • Page 2: Table Of Contents

    ▲ Notes .......................... 7 Overview Welcome to use the Link Gate FAX which supports voice, data and fax. Please read this instruction carefully before use. The Link Gate FAX has the basic telephony function by easily connecting to telephone set, and it can also connect to fax machine to send/receive faxes.
  • Page 3: Application Environment & Important Notes

    1. Application environment & important notes Before use, please make sure the radio-frequency signal is not shielded in your location, and learn about some important notes as below: 1.1 Notes for baby & children Never allow baby & children to play with this device. They might get hurt by the antenna or hurt others with it.
  • Page 4: System Installation

    2. System installation This device is based on GSM network, so a valid SIM card must be installed before use. 1) Plug one connector of standard phone cable to the phone, and plug the other end to the port on the panel marked with “telephone” on the back of the device. 2) Plug one connector of standard phone cable to the fax machine, and plug the other end to the port on the panel marked with “fax machine”...
  • Page 5: System Initialization

    signal is stronger, more indictor lights will be on, vice versa. 3.2 System Initialization 1) When the system is power on, the signal intensity indicator, working indicator and power indicator lights are on. 2) When the system completes initialization, the power indicator light is on and the working indicator light is off;...
  • Page 6: Technical Parameters

    4. Technical Parameters 4.1 Featured Technical Parameters Item Parameter Note Air interface Meet GSM standard Working voltage AC220V±20 (DC24V/DC12V optional) Please check the enclosed The actual specifications please see the adapter’ voltage mark of enclosed adapter. matches local voltage. Environmental temperature Device working under special temperatures needs to be customized...
  • Page 7: Power Supply

    network (specific time spent subject to local network conditions). 5.2 Power supply When the power supply switches on, the power indicator light is on. If the power supply switches on but the power indicator light is off, then please check: The power cable, the plug and power supply is normal or not If there’re no errors found through checking the above items and the breakdown cannot be excluded, please contact the vendor for help...
  • Page 8: Notes

    A No. This function requires that GSM network should support TS61. Q Which kind of fax machine is ideal for me to choose? A We suggest you choose laser fax machine. Q Why the pages draw out when I use my thermal fax machine to receive faxes? A The reason is that the thermal fax machine’s feed speed cannot synchronize with the network data input speed.
