Theory of Operation

RSA5100A Series Service Manual
This section provides a basic description of the Real-Time Signal Analyzer (RSA)
operation. Refer to the following block diagram of the instrument while reading
through this section.

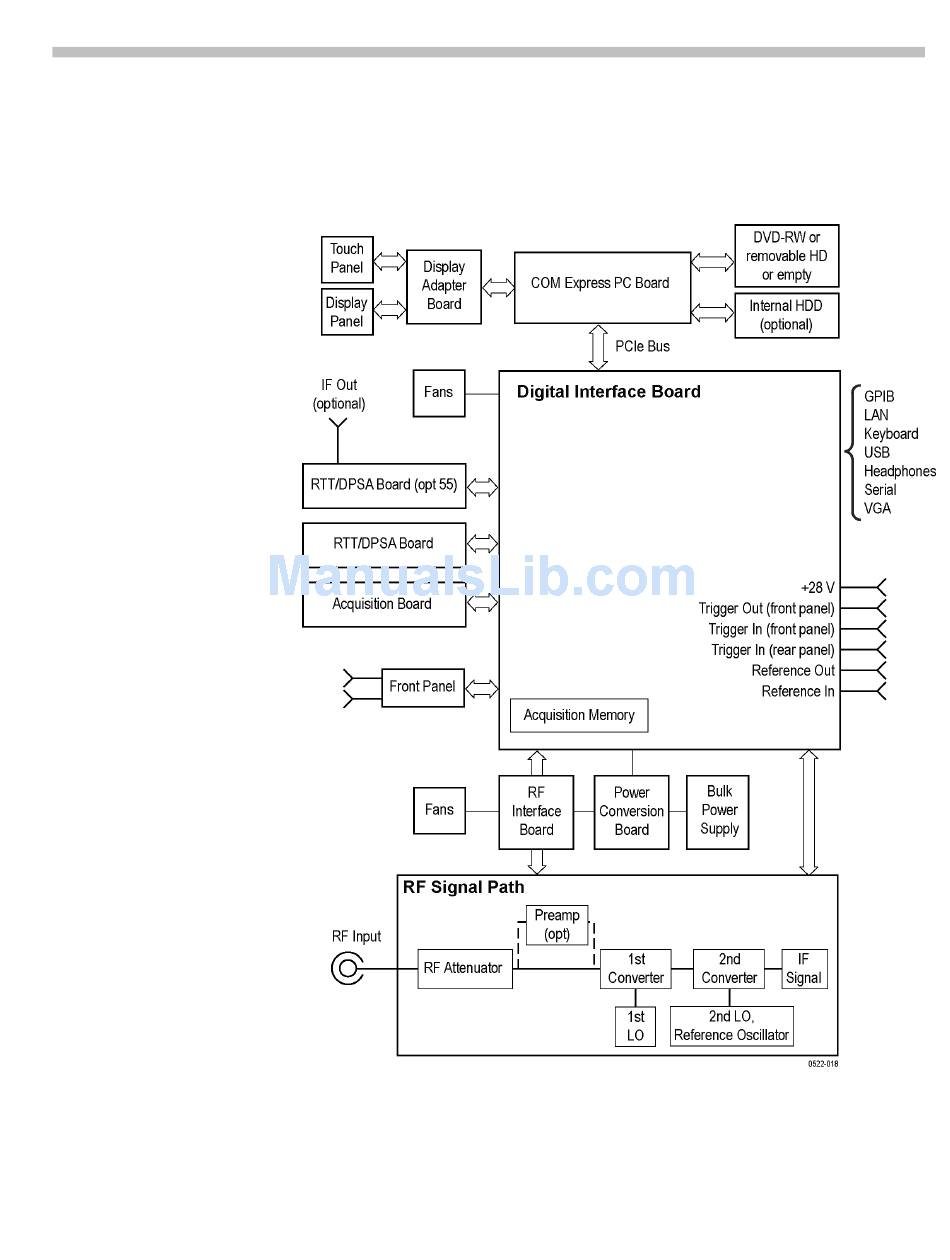

Figure 1: RSA5100A Series block diagram
