- Page 2 Warnings 1. Only connect this unit to a 12V DC power 5. Please don't change the fuse in the power supply with negative grounding. cord without professional guidance, improper fuse may cause damage to this using unit or even cause fire. 2.
- Page 3 Precautions 1. Never disassemble or adjust the unit 10.During operating the unit, “ ” will without any professional guide. For display if the current operation is not details, please consult any professional car available or illegal. shop / dealer for inquiry. 11.Operate the unit correctly according to this 2.
-
Page 4: Table Of Contents
Contents Before using Fast forward/Fast reverse .....11 Front panel ..........1 Repeat play ...........11 Remote control ........2 Random play .........11 Basic operations Search function ........11 Power on / off ......... 4 Bluetooth mode Audible beep confirmation ...... 4 Select bluetooth as playing source ..12 Mute ............ -
Page 5: Before Using Front Panel

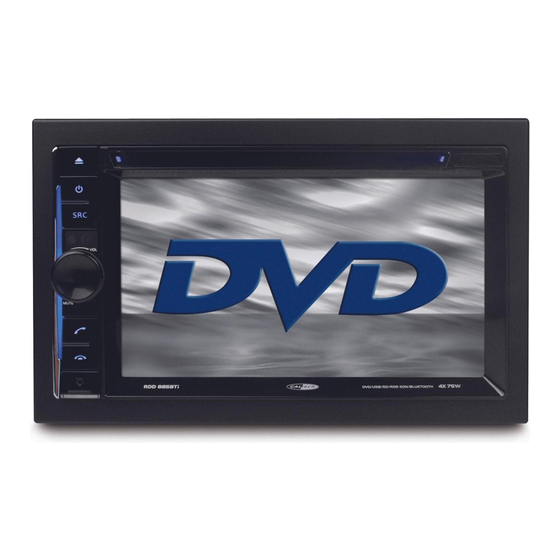

Before using Front panel 1. Disc slot. 2. [ ] Key: Press to eject a disc. 3. [ ] Key: Press to turn the unit ON/OFF. 4. [SRC] Key: Switch to the current mode and main menu / Press and hold to adjust the brightness and contrast of the TFT monitor. -
Page 6: Remote Control
Before using Remote control 1. [SRC] Key: Select playing source 2. [EJECT] Key: Eject disc 3. [AUDIO] Key: Select DVD dialogue language 4. [VOL+/-] Key: Adjust volume 5. [ZOOM] Key: Image zoom in/out 6. [ /BAND] Key: Select radio band 7. -
Page 7: Notes Of Remote Control Using
Before using Install battery Notes of remote control using Use button-shaped lithium battery "CR2025 1. Aim the remote control at the remote (3V)" only. Insert the battery to the battery sensor on the unit. tray with proper direction according to the (+) 2. -
Page 8: Basic Operations Power On / Off
Basic operations Power on / off turn the rotary encoder on the front panel. When the volume level reaches "0" or "40", a Press the [ ] key to turn the unit on. The beep sounds, indicating that the adjustment buttons on the front of the unit light up and limit has been reached. -
Page 9: Rds Operations
RDS operations When one PTY option is touched (e.g. The unit provides basic functions of RDS, including News), auto search for next available PTY PI (Program Identification), radio station name , by increasing tuning frequency until the PTY RT (Radio Text), CT (Clock Time), AF (Alternative of the next station matches the current. -
Page 10: Radio Mode
Radio mode Select radio as playing source Manual store 1. Tune to a station. Open the SOURCE MENU and then touch 2. Touch [ [RADIO]. 3. Touch one of the channels P1 to P6 to save the selected band. Auto store (AS) To select six strong stations and store them in the current band: 1. -
Page 11: Playback Insert A Disc
Playback Insert a disc If there are no audio or video files, but there are picture files supported in the USB Upon inserting a disc, the unit will switch to stick, the system will enter the picture files [DISP] mode automatically. menu automatically. -
Page 12: Play The Next Or Previous File
Playback DVD menu/title press and hold [ ] icon on the screen to fast forward; This function is only available for the DVD Press the [ ] key on the remote control or discs having “MENU / TITLE”. press and hold [ ] icon on the screen to In full screen playing of DVD disc,touch fast rewind;... -
Page 13: Rotate Picture
Playback Playback information display step 4. Display the information of searching: Title/ Touch the top center area of TFT LCD when track playing back DVD and VCD discs and the 5. Exit the setup interface playback information will be displayed on the top area of the TFT. -
Page 14: On-Screen Control Icons
Playback On-screen control icons More Audio Music Music file Photo Photo file Video Video file List Playlist Slow playback Slow playback Slow playback SCAN Scan playback Scan playback Scan playback DVD angle EN - 10... -
Page 15: Ipod Mode
iPod mode Connect an iPod or iPhone to the USB Pausing play connector via an iPod cable. 1. Touch the [ ] button on the bottom of the screen to pause play. 2. Touch [ ] button again to resume play. Selecting a track Track-up Touch the [... -
Page 16: Bluetooth Mode
Bluetooth mode Phone mode Bluetooth is a wireless transmission way for short distance. The built-in bluetooth Pairing can connect with the mobile phones having Use this function to establish a connection bluetooth function. between the Bluetooth module and your After connecting, you can control your mobile mobile phone. -
Page 17: Other Modes Aux
Bluetooth mode Other modes Switch phone call to the mobile If you do not want your passenger to hear External peripheral devices with RCA audio and your incoming call, you can switch the call to video outputs can be connected with the unit. the mobile. -
Page 18: Setup
Setup ● Clock mode 12Hr: Clock displays 12 hour time using AM and PM. 24Hr: Clock displays 24 hour time up to 23:59. ● Clock Clock appears in the top right corner of the screen during certain operations. Note: The AM/PM indication will change as you continue to adjust the hour past 12. -
Page 19: Audio
Setup ● Load Factory Select “Reset” to restore the factory default ● RDS settings for the Rating system only. Turn On/Off the RDS feature. ● CT Audio System time is synchronized with current broadcast station time (Clock Time). ● Loudness Setting this feature to On will automatically Select low frequency boost only or high set your system clock. -
Page 20: Adjust Sound Adjust Volume
Adjust sound Adjust volume Adjust rader/balance To adjust volume, rotate the volume knob on You can also adjust the front and rear the host car audio. speaker balance, the left and right speaker balance,and subwoofer settings. Mute 1. Touch [EQ] on the screen. When playback, press the VOLUME knob 2. -
Page 21: Troubleshooting
Troubleshooting What appears to be trouble is not always serious. Please check the following points before calling a service center. Problem Cause Corrective action General Unit fuse blown. Install new fuse with correct rating. Unit can not power on Car battery fuse blown. Install new fuse with correct rating. -
Page 22: Disc Playback
Troubleshooting (Continued) Problem Cause Corrective action Disc playback Cannot insert disc A disc inside the unit already. Eject current disc and insert new one. Disc is warped or scratched. Use disc in good condition. Disc is dirty or wet. Clean disc with soft cloth. Incompatible disc is used. -
Page 23: Device Connections Notes Of Connection
Device connections Notes of connection ● This unit is designed to be used in a vehicle with a 12-volt battery and negative grounding. Before installing this unit to a recreational vehicle, a bus, or a truck, make sure the battery voltage is appropriate for this unit to be used, otherwise, install a transformer by professional to convert the output voltage to 12V. -
Page 24: Parking Brake Cable Connections
Device connections Parking brake cable connections Reverse driving cable connections EN - 20... -
Page 25: Installation And Uninstall Iso-Din Installation
Installation and uninstall ISO-DIN Installation This unit is designed to fit into a 2.0 DIN dashboard opening, found in many imported cars. The unit has threaded holes in the chassis side panels which may be used with the original factory mounting brackets of some vehicles to mount the radio to the dashboard. -
Page 26: Installation Using Half-Sleeve
Installation and uninstall Installation using half-sleeve 1. Install half-sleeve in the dashboard. a. Install adapter if necessary (optional). b. Install half-sleeve into adapter or dashboard (use only the supplied screws). Do not force the sleeve into the opening or cause it to bend or bow. -
Page 27: Specifications
Specifications DVD/CD Player Compatible Disc Media: DVD + R / RW (Single and Dual Layer) and CD-R / RW Compatible Media Formats: CD-DA, MP3, WMA, VCD, Xvid, AVI, MPEG 1/2 Signal to Noise Ratio: >95dBA Dynamic Range: >95dB Frequency Response: 20Hz to 20 kHz, -3dB Channel Separation: >... -
Page 28: Appendix Wiring Diagram
Appendix Wiring diagram CAUTION!IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully, or have the installation handled by an experienced technician. extension box with USB/SD/Audio Aux-in EN - 24...
