Getting Started

Complete the following steps after you
have removed your phone and its
components from their packages:
•
Attach the battery to your phone
•
Charge the battery
•
Attach the optional belt clip to your
phone

Install the Battery

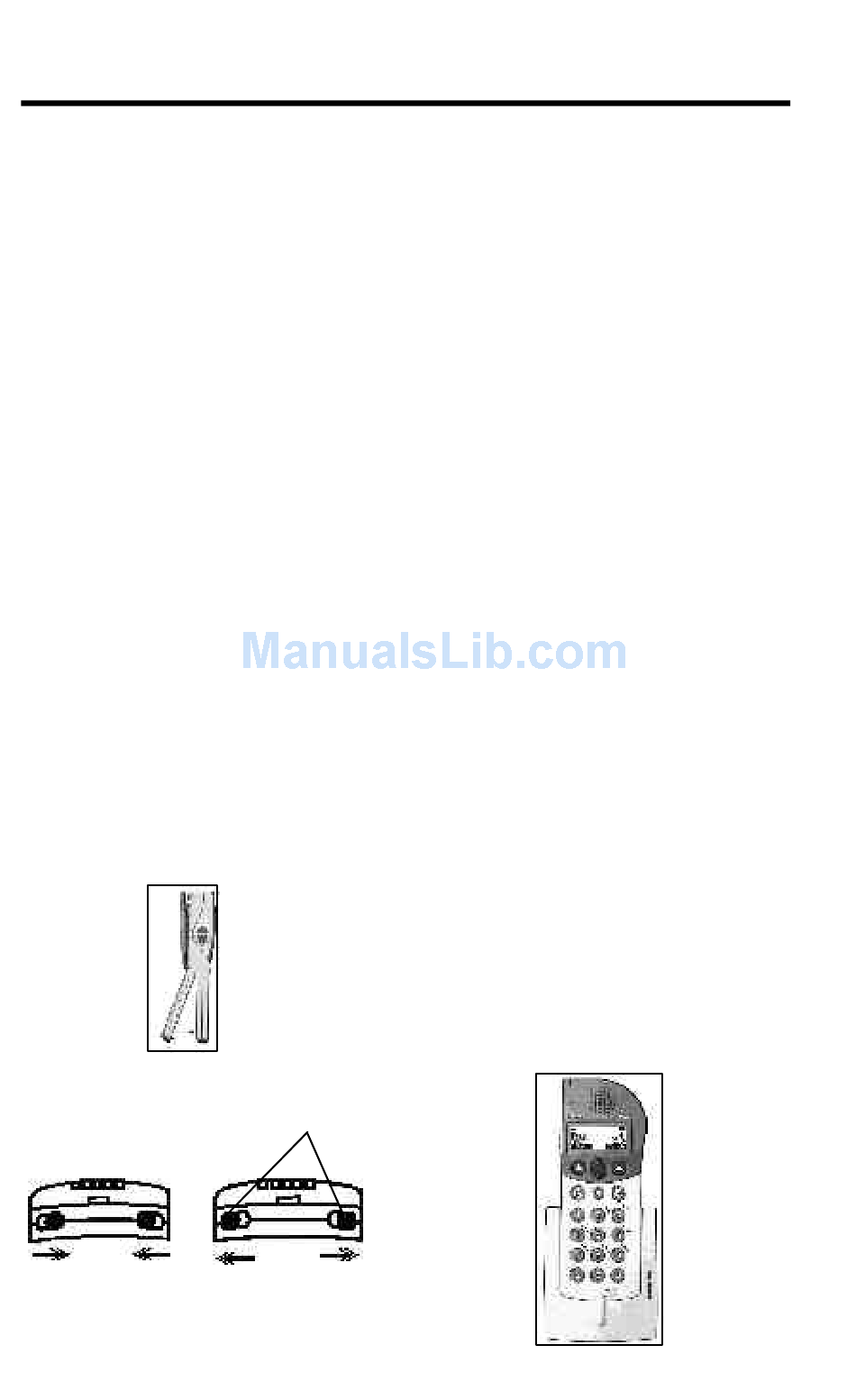

1. Attach the battery to the back of the
phone by sliding the tabs
on the top of the battery into the
appropriate slots on the phone, then
press down firmly (see Figure 1.1).
2. While holding the battery firmly
against the phone, push the battery
lock tabs located on the bottom of
the phone outward to the "locked
position" (see Figure 1.2) to secure
the battery.
3. To remove the battery, push the
battery lock tabs inward, to the
"unlocked" position and pull the
battery off the phone.
Figure 1.1
Unlocked position
Figure 1.2
Getting Started
Battery lock tabs
Locked position

Charging the Battery

The Desktop Charger will charge a
battery when attached to your phone as
well as support the charging of a single
battery pack by standing the battery pack
in the compartment of the desktop
charger.
Charging a Battery Attached
to your Phone
1. Plug the AC adapter into the
charger.
2. Plug the AC adapter into a wall
outlet.
3. Insert your phone into the
compartment of the desktop
charger as shown in Figure 2.1.
The light on the right side of the
desktop charger should be red
indicating that charging is
in progress.
4. When the indicator light turns
green, this indicates that the
battery is fully charged and
the handset is ready for use.
Note: A rack charger is also available
and its functionality is similar to the
desktop charger. For more information,
please refer to DCT1900 Technical
Product Manual (TPM).
9
Figure 2.1
