Learning About Your Phone
System Headset
Icon
Indicator
Off Hook
Icon
Keylocked
Icon
System Indicator shows whether the
phone is locked to a system (steady icon)
or not (icon blinks). The phone will only
lock to systems for which it has been
programmed.
Off Hook icon flashes when the phone is
connecting to the network (dialing) or
receiving a call and stays on during a call.
Warning Mute icon indicates when the
warning beeps have been temporarily
muted.
Ring Mute icon indicates when the ringer
has been turned off.
Warning Mute and Ring Mute icons
displayed together indicate the phone is in
silent mode.
Missed Calls icon indicates unanswered
calls.
Message icon indicates text message has
been received.
Voicemail icon indicates message is
waiting in the voicemail box.
Headset icon indicates when an optional
handsfree accessory is attached.
Battery Strength icon shows the
relative strength of your battery. A full
icon indicates a fully charged battery. A
blinking battery icon indicates a low
battery charge.
Multiple Line Appearance (MLA) icon
indicates the active line when your system

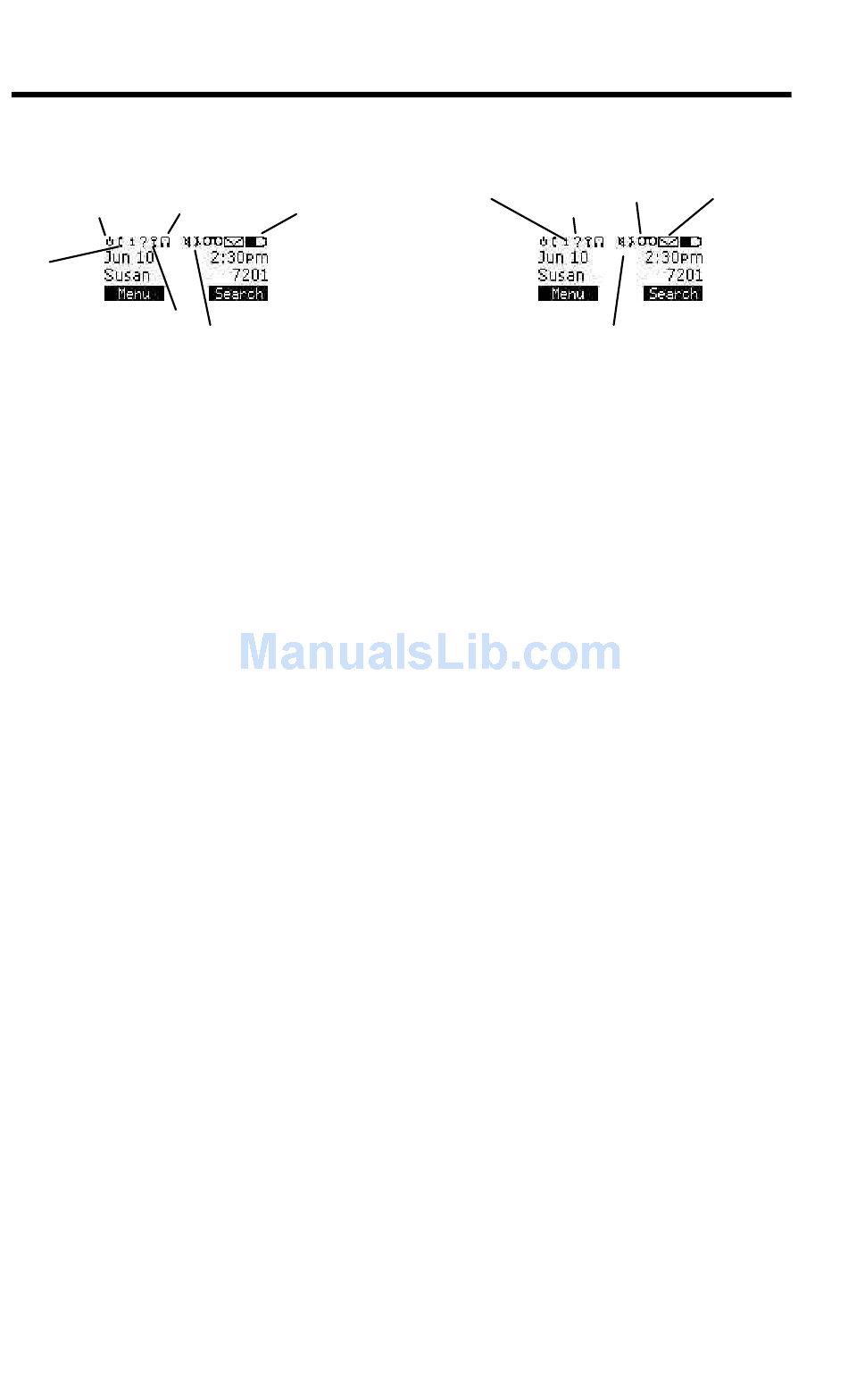

Display Indicators

Battery
Strength
Icon
Ring Mute
Icon
Missed
MLA
Calls
Icon
Icon
is configured for enhanced digital
integration. The MLA icon may appear as
a 1,2,3,or 4 depending on the system
configuration. A blinking MLA icon
indicates the line is on hold.
Keypad Lock icon indicates the keypad is
locked to prevent inadvertant key presses.
Battery Charging icon indicates when
the phone is receiving power from an
external source, such as a charger. A
blinking full battery icon indicates that
the charging is complete. The Battery
Charging icon appears in place of the
Battery Strength icon.

Indicator Light Functions

The color and state of the indicator light
on top of your phone shows the following
conditions:
Slow Flashing Red: A flashing red light
means one of the following: Low Battery,
No System, or No Access. See "Problems
You Can Solve", page 31.
Rapid Flashing Red: Phone is receiving
a call.
Steady Green: Your phone is receiving
power from an external source, such as a
charger.
Slow Flashing Green: Phone is in
Standby mode (locked to a system),
ready to place and receive calls.
Rapid Flashing Green: Phone is on
talk mode or in use.
12
Voicemail
Message
Icon
Icon
Warning
Mute Icon
