Quick Start Guide
WARNING
USERGUIDE

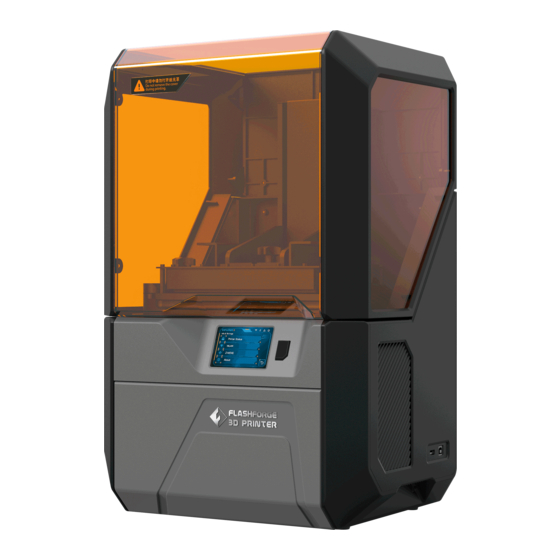

This guide is only applicable to FLASHFORGE Hunter 3D printer
HUNTER
SZ09-EN-A02
1. Please put on gloves while using photopolymer resin to avoid
direct contact with hands.
2. To ensure the printing quality, please don't open the light shield
unless it's necessary.
3. Unused photopolymer resin needs to be stored in a dark, dry,
and cool place.
4. Please clean the finished model with isopropyl alcohol (IPA).
The User Guide is in the USB stick.
