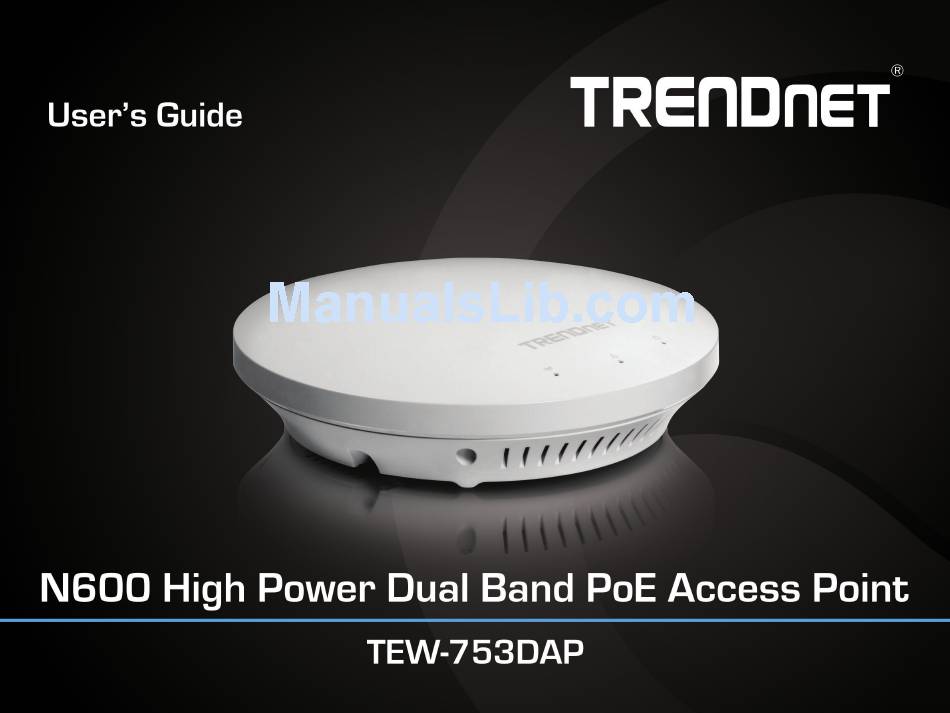

TEW-753DAP User's Guide
© Copyright 2013 TRENDnet. All rights reserved.
a

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TEW-753DAP

Summary of Contents for TRENDnet TEW-753DAP

  • Page 1 TEW-753DAP User’s Guide © Copyright 2013 TRENDnet. All rights reserved.

  • Page 2: Table Of Contents

    Wireless Performance Considerations ���������������������������������������������� 5 Operation Modes �������������������������������������������������������������������������������5 Access Point �������������������������������������������������������������������������������������� 5 WDS Bridge ��������������������������������������������������������������������������������������� 5 WDS AP ��������������������������������������������������������������������������������������������� 5 Universal Repeater���������������������������������������������������������������������������� 5 Application Diagram ���������������������������������������������������������������������������6 System configuration ��������������������������������������������������������������������������7 System Management and Default Settings �������������������������������������� 7 © Copyright 2013 TRENDnet. All rights reserved.

  • Page 3: Product Overview

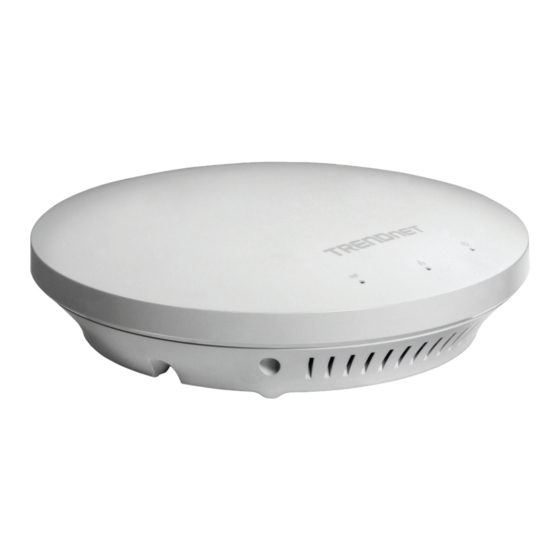

    Product Overview Product Overview Features TRENDnet’s N600 Dual Band PoE Access Point, model TEW-753DAP, is a feature rich business class access point with proven concurrent 300 Mbps dual band wireless technology. A variety of installation scenarios are supported with Access Point, WDS AP, WDS Bridge, and Repeater modes.
  • Page 4 Extend network monitoring to this device with SNMP support Encrypted Wireless Support for encryption up to WPA2 VLAN Management Up to eight SSIDs per band with VLAN management support Network Access Create MAC filter tables to reduce network access risk © Copyright 2013 TRENDnet. All rights reserved.

  • Page 5: Mounting Holes

    Power Wireless Network Connectors Reset Button • Push and hold for 2 seconds to reset TEW-753DAP Gigabit PoE Port DC Power 12V DC 1.25A • Push and hold for more than 10 seconds to reset configuration to factory default (Optional)

  • Page 6: Product Preset Information

    TEW-753DAP. The second label including two sets of T-Bar clippers, two sets of screws, and a set of is located on the bottom of the TEW-753DAP. You can find default SSID, spacers. wireless key, administrator account, and administrator password there.

  • Page 7: Mount On Wall Or Ceiling

    Two additional bronze screw holes are provided for T-Bar mounting. between mounting points is 2 3/4” (7cm) Use two P2.6 screws to secure the TEW-753DAP on T-Bar clip and then clip on the T-Bar. © Copyright 2013 TRENDnet. All rights reserved.

  • Page 8: Wireless Performance Considerations

    There are a number of factors that can impact the range of wireless devices. Adjust your wireless devices so that the signal is traveling in There are four operating modes provided by TEW-753DAP, Access Point, Client a straight path, rather than at an angle. The more material the signal Bridge, WDS and Repeater.
  • Page 9 This feature is used to expand your existing wireless network on places your current access point is unable to reach. Make sure all the settings on selected interface of the TEW-753DAP matches the wireless access points you want to repeat in same wireless settings including SSID, channel and wireless encryption settings.

  • Page 10: Application Diagram

    TEW-753DAP User’s Guide Installation Application Diagram © Copyright 2013 TRENDnet. All rights reserved.

  • Page 11: System Management And Default Settings

    System configuration System Management and Default Settings If you have a brand new out of box TEW-753DAP or if you just reset Search for available wireless connections in your computer’s TEW-753DAP to factory defaults by pressing and holding reset button network settings.
  • Page 12 TEW-753DAP User’s Guide System Configuration Open a web browser and type http://tew-753DAP to access web Change your administration login password away from factory administration page. default setting. Click Next to continue. If you have a static IP set on your PC, please open a web browser and enter http://192.168.10.100 The TEW-735AP login page will...
  • Page 13 Click Save/ Reload on top of the menu and then click Save & Apply� TEW-753DAP will apply password change and then reboot. Login again with your new password. * Make sure you are still connecting to TEW-753DAP after reboot if you wireless connects to TEW-753DAP. © Copyright 2013 TRENDnet. All rights reserved.
  • Page 14 Setup Wizard Setup wizard is provided as part of the web configuration utility. It sets Enter the management IP address for this TEW-753DAP. The default up the basic administrator password and management IP address by IP address is 192.168.10.100. Set it up in your network management clicking on the Wizard button on the function menu.
  • Page 15 The number following Save/ Reload is a reminder showing how many changes in the queue waiting to be commit. * Make sure you are still connecting to TEW-753DAP after reboot if you wireless connects to TEW-753DAP. © Copyright 2013 TRENDnet. All rights reserved.

  • Page 16: System

    TEW-753DAP User’s Guide System Configuration Status Main status page shows TEW-753DAP basic information. Click Status then main to show the page. System Information Device Name : Name of this device recognized by other network device such as SNMP. Ethernet MAC Address : The MAC address of Ethernet Interface 2.4G Wireless MAC Address : The MAC address of each individual active...
  • Page 17 753DAP network Primary DNS : Primary DNS server address Secondary DNS : Secondary DNS server address DHCP Client : The TEW-753DAP IP address was set statically or dynamically. The IP address was statically set by default. Spanning Tree Protocol : Spanning Tree Protocol is enabled or not.
  • Page 18 RX (packets) Received packets by 2.4GHz wireless Profile Settings : Briefly shows wireless settings (SSID/ interface Security/ VID/ 802.1Q) on each SSID. TX (packets) Transmitted packets from 2.4GHz wireless Distance : The distance setting of 5GHz wireless. interface © Copyright 2013 TRENDnet. All rights reserved.

  • Page 19: Wireless

    Signal strength of this wireless client Kick and Ban : Click this button to send this client to MAC address filter list. Click OK when you see this prompt. Refresh : Click this button to refresh the list © Copyright 2013 TRENDnet. All rights reserved.
  • Page 20 Clear : Click this button to clear up the log MAC address filter list. Click OK when you see this prompt. (Save & Reload to make your change in action) Refresh : Click this button to refresh the list © Copyright 2013 TRENDnet. All rights reserved.

  • Page 21: Universal Repeater

    You can change this IP address to fit your known as wireless stations (STAs), can wireless associate network plan. You can also set TEW-753DAP to DHCP client accepting IP with TEW-753DAP and connect to Internet via Ethernet dynamically.
  • Page 22 IPv6 Primary DNS : Primary IPv6 DNS server address IPv6 Secondary DNS : Secondary IPv6 DNS server address Spanning Tree The TEW-753DAP is designed for end point access as well as backbone connection. To avoid network looping, you can enable 802.1d spanning tree protocol.

  • Page 23: Status

    Cancel : Click this button to abandon the change Band Steer The TEW-753DAP equipped with 2.4GHz and 5GHz wireless interfaces. When your client device can work on both 2.4GHz and 5GHz wireless, Band Steer can redirect your 2.4GHz crowded traffic to 5GHz band automatically.
  • Page 24 US: Channel 1 - 11 Euro: Channel 1 - 13 Current Profile SSID (1 - 8) : The wireless network name setup for this SSID� © Copyright 2013 TRENDnet. All rights reserved.
  • Page 25 (Save & Reload is required to take effect.) Go Back : Click this button to go back AP Detection Before you setup your TEW-753DAP wireless settings, you may SSID Settings want to know what signal is current running in the air. Click Scan Click Edit one the SSID you want to edit.
  • Page 26 WMM : Choose to Enable or Disable WMM. This is the Quality of Service (QoS) feature for prioritizing voice and video applications. Encryption : Choose between disable, WEP, WPA, WPA2 or 802.1x for your wireless security. © Copyright 2013 TRENDnet. All rights reserved.
  • Page 27 Default Key : You may choose one of your 4 different only AES. WEP keys from below Pre-shared Key Type : The Key Type can be passphrase or Hex Encryption Key 1-4 : You may enter four different WEP keys format © Copyright 2013 TRENDnet. All rights reserved.
  • Page 28 Set up wireless security settings in this page. Select SSID you want to set up, change the value and then click on Apply to commit the changes. Enabling security prevents any unauthorized wireless clients to connect into your network. © Copyright 2013 TRENDnet. All rights reserved.
  • Page 29 Data rate : You can select a data rate from the drop- down list, however, it is recommended to select auto. In auto mode, TEW753DAP will choose the maximum data rate to fit the instant wireless channel quality automatically. © Copyright 2013 TRENDnet. All rights reserved.
  • Page 30 TEW-753DAP User’s Guide System Configuration WPS is the simplest way to connect a wireless client to TEW-753DAP. N Data Rate : Select different 802.11N Modulation and You don’t have to select the encryption mode and fill in a long Coding Scheme (MCS) against particular encryption passphrase every time when you try to setup a wireless wireless noise.
  • Page 31 Displays PIN code of TEW-753DAP SSID Displays the SSID for WPS pairing. Only the first SSID (SSID_1) can proceed WPS pairing. Authentication Displays the authentication mode of Mode SSID_1 Passphrase Key : Current passphrase © Copyright 2013 TRENDnet. All rights reserved.
  • Page 32 Check Channel (for Auto Channel) specify how frequently Time : TEW-753DAP is checking the channel status Apply : Click this button to apply the change Cancel : Click this button to abandon the change © Copyright 2013 TRENDnet. All rights reserved.
  • Page 33 When this is disabled, you must enter the Wireless Network Name (SSID) on the client manually to connect to the network. © Copyright 2013 TRENDnet. All rights reserved.
  • Page 34 TEW-753DAP without password Encryption (WEP) : WEP, Wire Equivalent Protection, provides You can relay the authentication to a basic wireless security remote RADIUS server by checking Enable 802.1x Authentication and entering RADIUS server information. © Copyright 2013 TRENDnet. All rights reserved.
  • Page 35 Encryption Key 1-4 : You may enter four different WEP keys only AES. Pre-shared Key Type : The Key Type can be passphrase or Hex format © Copyright 2013 TRENDnet. All rights reserved.
  • Page 36 Cancel : Click this button to abandon the change Encryption Use RADIUS server manage your wireless (WPA RADIUS) : authentication keys for easier account management Wireless Advanced Settings Fine tuning your wireless settings on this page. © Copyright 2013 TRENDnet. All rights reserved.
  • Page 37 Preamble Type : Select a short or long preamble. For 0 and 2347. The default value is 2347 optimum performance it is recommended to also configure the client device to the same preamble type. © Copyright 2013 TRENDnet. All rights reserved.
  • Page 38 Cancel : Click this button to abandon the change WPS is the simplest way to connect a wireless client to TEW-753DAP. You don’t have to select the encryption mode and fill in a long encryption passphrase every time when you try to setup a wireless connection.
  • Page 39 WPS via PIN : Specify a PIN, which unique number that can be used to add the router to an existing network or to create a new network. Then click on the Start to Process button © Copyright 2013 TRENDnet. All rights reserved.
  • Page 40 Idle Timeout Automatically Default 10 minutes. Old Password: Type in the current password to allow changing to a new password. New Password: Enter your new password here. Confirm Type your new password again for verification Password: purposes © Copyright 2013 TRENDnet. All rights reserved.
  • Page 41 SSID. Different SSID should set to different VLAN ID. Enable Virtual LAN service and click Apply to save the changes. LAN VLAN MGMT is a special VLAN to manage TEW-753DAP. Enabling management VLAN tagging will keep all services, for example DHCP server and client, in this VLAN.
  • Page 42 All SSIDs have to have different VLAN tag. Valid settings are between 1 and 4094. LAN VLAN MGMT : Enable or disable TEW-753DAP services on a specific VLAN. If management VLAN tagging is enabled. All service packets, including web management, DHCP server/ client, will be tagged with specified tag.
  • Page 43 Set Community Name : Specify the password for access to the SNMP community with read/write access System Location : Specify the location of the TEW-753DAP System Contact : Specify the contact details of the TEW- 753DAP...
  • Page 44 This page allows you to save the current configurations. Click Save to Auto Reboot Settings save your current configuration. Click on Apply, the TEW-753DAP will going through all the reboot process automatically. To load configurations saved previously, click Browse ... to find configuration file and then click Upload�...
  • Page 45 TRENDnet model and version. To find out if there is a firmware upgrade available for your device, please check your TRENDnet model and version using the link. http://www.trendnet.com/downloads/ © Copyright 2013 TRENDnet. All rights reserved.
  • Page 46 System Configuration Time Setup : Choose a source of time to synchronize with. You can choose to synchronize the TEW-753DAP with a NTP server or your PC� Time Zone : Select the time zone of the country you are currently in. The TEW-753DAP will set its time based on your selection.
  • Page 47 System Configuration CLI Settings To check your network connection, you can use the PING tool from your TEW-753DAP. Enter the IPv4 address you want to ping and click Start� The result will be showed in the terminal down below. Diagnosis To check your network connection, you can use the PING tool from your TEW-753DAP.
  • Page 48 Device Discovery All LED indicators are turned on by default. You can turn any one of The TEW-753DAP can discover other TEW-753DAP on neighbor wired them or all of them on or off. Click the LED you want to change the or wireless network.
  • Page 49 Flashing Wireless network activities are detected Logout Logout from the management page. The TEW-753DAP allows only one management login at the same time. If you want to access the TEW-753DAP from different computer, remember to logout the web management page first.
  • Page 50 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. © Copyright 2013 TRENDnet. All rights reserved.
  • Page 51 5 GHz high performance RLAN equipment This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. © Copyright 2013 TRENDnet. All rights reserved.
  • Page 52 Directive 1999/5/EC, 2006/95/EC, and 2009/125/EC. requisitos essenciais e outras disposições da Directiva 1999/5/CE, [Portuguese] 2006/95/CE e 2009/125/CE. Por medio de la presente TRENDnet declara que el TEW-753DAP Español cumple con los requisitos esenciales y cualesquiera otras [Spanish] Slovensko...

  • Page 53: Limited Warranty

    RMA service must have the RMA number marked on the outside of return packages and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment.
  • Page 54 TEW-753DAP User’s Guide Warranty © Copyright 2013 TRENDnet. All rights reserved.
