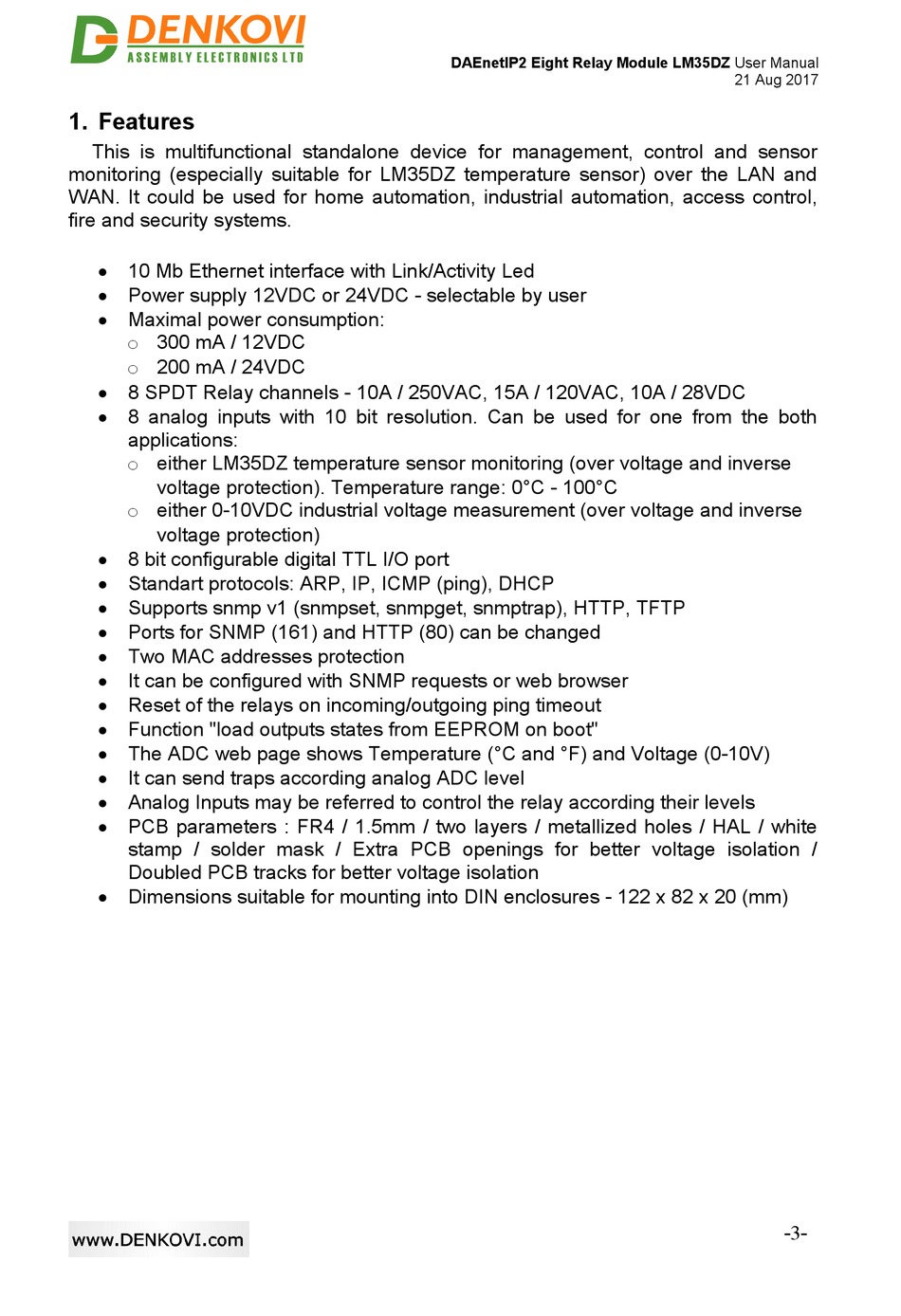

1. Features

This is multifunctional standalone device for management, control and sensor
monitoring (especially suitable for LM35DZ temperature sensor) over the LAN and
WAN. It could be used for home automation, industrial automation, access control,
fire and security systems.
 10 Mb Ethernet interface with Link/Activity Led
 Power supply 12VDC or 24VDC - selectable by user
 Maximal power consumption:
o 300 mA / 12VDC
o 200 mA / 24VDC
 8 SPDT Relay channels - 10A / 250VAC, 15A / 120VAC, 10A / 28VDC
 8 analog inputs with 10 bit resolution. Can be used for one from the both
applications:
o either LM35DZ temperature sensor monitoring (over voltage and inverse
voltage protection). Temperature range: 0°C - 100°C
o either 0-10VDC industrial voltage measurement (over voltage and inverse
voltage protection)
 8 bit configurable digital TTL I/O port
 Standart protocols: ARP, IP, ICMP (ping), DHCP
 Supports snmp v1 (snmpset, snmpget, snmptrap), HTTP, TFTP
 Ports for SNMP (161) and HTTP (80) can be changed
 Two MAC addresses protection
 It can be configured with SNMP requests or web browser
 Reset of the relays on incoming/outgoing ping timeout
 Function "load outputs states from EEPROM on boot"
 The ADC web page shows Temperature (°C and °F) and Voltage (0-10V)
 It can send traps according analog ADC level
 Analog Inputs may be referred to control the relay according their levels
 PCB parameters : FR4 / 1.5mm / two layers / metallized holes / HAL / white
stamp / solder mask / Extra PCB openings for better voltage isolation /
Doubled PCB tracks for better voltage isolation
 Dimensions suitable for mounting into DIN enclosures - 122 x 82 x 20 (mm)
